|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Feature:||Mainly For Screening And Separating Fine Materials||Movement:||Three-dimensional Motion: Up And Down, Back And Forth, Left And Right|
|Function:||For Both Dry And Wet Screening, Filtering, Impurity Removal||Mesh Cleaning System:||Ultrasonic System, Rubber Balls, Rotary Brush System Etc.|
|Screen Frame:||Flange Type, Adhesive Type, Bolt Insert Type, Ultrasonic Type Etc.||Material:||Stainless Steel, Carbon Steel, Plastic Etc.|
|Model:||AY-400, 600, 800, 1000, 1200, 1500, 1800, 2000||Vibrating Motor:||General Type, Explosion-proof Type|
air classifier machine,
rotary sifter machine

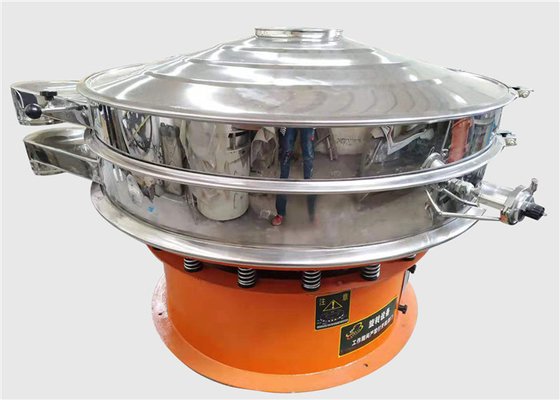

Sic Silicon Carbide Rotary Sifter Screens Gyratory Vibrating Sieve Machine
Introduction of Gyratory Vibrating Sieve for SiC Silicon Carbide High Accuracy Screening:
Gyratory Vibrating Sieve for SiC Silicon Carbide High Accuracy Screening is a high precision fine powder screening machine, with low noise and high efficiency. It takes 3-5 minutes to quickly replace the screen.
Features of Gyratory Vibrating Sieve for SiC Silicon Carbide High Accuracy Screening:
1. Sieving efficiency is as high as 90% -95%.
2. When using the silicone rubber balls, ultrasonic and other high-performance mesh-cleaning device system, the sieve aperture will not be blocked.
3. Enclosed cleaning dust, safe operation; the acceleration is 4-5 times lower than common vibrating screen.
4. Up to 5 times outlet compared than common sieving machine.
5. At most 6 Level separation.
6. No particle destruction in sensitive products.
7. High screening quality results in higher revenues for graded products.
8. Higher specific screen load as compared to vibration systems.
9. Stable screen motion even under full load.
10. Noise <75 dB. Re-optimization is balanced, ground-based dynamic load is low.
Purpose of Gyratory Vibrating Sieve for SiC Silicon Carbide High Accuracy Screening:
Grading Solid-liquid Separation Impurity Removal
1. Grading: Granules/powder accurate classification. Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi-layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.
2. Solid-liquid Separation: Remove granules foreign matter in the liquid. The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.
3. Impurity Removal: Remove the foreign matter or agglomerate. The model can quickly separate a few oversize or undersized particles from a quantity of materials.
Some Information About Gyratory Vibrating Sieve for SiC Silicon Carbide High Accuracy Screening:
|Machine Shape||round shape|
|Screen Decks||1~5 layers of screen with 2~6 discharge ports (outlets)|
|Mesh Size||above 325 mesh (according to the materials)|
|Screen Frame/Holder||adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external), flange type etc.|
|Mesh De-blinding System||bouncing balls (with ball decks, rubber balls, silicone balls etc.), ultrasonic de-blinding system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm|
|Material||stainless steel 304, 316L, carbon steel, plastic materials etc.|
|Surface Treatment||Paint, sandblast and mirror polish, powder coating etc.|
|Function||solid-separation, grading, remove the impurity etc.|
|Moving Trajectory||three dimensional vibration motion|
|Damping Spring||carbon steel spring, stainless steel spring, air spring, rubber spring etc.|
|Motor||one set of vibrating motor, verticle arrangement (sufficient power), explosion proof motor optional|
|Motor Brand||AAREAL Made, OLI-WOLONG, Italvibras etc.|
|APO Safety System||Automatic Power Off Safety System is integrated in the motor|
|Quick-wear Parts||stainless steel woven wire mesh screen, perforated plate, bounce balls, clamps, springs, sealing rubber strip, verticle vibrating motor etc.|
|Optional Design||collecting tray, discharge gate, magnetic guard, quick release clamp, glass viewing port, etc.|
|Work Level||general grade, food grade, pharmaceutical grade etc.|
Working Principle of Gyratory Vibrating Sieve for SiC Silicon Carbide High Accuracy Screening:
The rotary vibrating screen is made of an upright motor as the excitation source. The upper and lower ends of the motor are equipped with eccentric hammer. The rotary motion of the motor is transformed into horizontal, vertical and inclined tridimensional motion, which is then transmitted to the screen surface.By adjusting the phase Angle of upper and lower ends, the movement track of materials on the screen surface can be changed.Materials can be fine screening, probability screening etc.
Technical Parameters of Gyratory Vibrating Sieve for SiC Silicon Carbide High Accuracy Screening:
|Model||Power||Screen Surface Diameter||Effective Screen Area (sqm)||Layers of Screen|
Note: our company reserve the right to modify the above data.
Structure of Gyratory Vibrating Sieve for SiC Silicon Carbide High Accuracy Screening:
The Rotary Vibrating Screener is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends. Rotary vibrating screen can be produced in horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter also can be ranged from 400mm to 2000mm, with single or multiple screening decks, material can be total carbon steel, total stainless steel or material contact parts are stainless steel according to different product.
Application of Gyratory Vibrating Sieve for SiC Silicon Carbide High Accuracy Screening:
1. Ceramic and abrasive: Alumina, quartz sand, mud etc.
2. Metal, metallurgy and mining industry: Aluminum powder, manganese dioxide, electrolysis copper powder, electromagnetism materials, copper powder, ore alloy powder, welding rod powder, ceruse, grinding powder, fire-resistant material, lime, alumina, heavy calcium carbonate, etc.
3. Food industry: Sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup, etc.
4. Chemical industry: rubber, industrial medicine, cosmetic, coatings,PVC powder, resin, pigment, etc.
5. Paper making: Paper pulp, paint, wasted water recycling.
6. Pharmacy profession: western medicine powder, liquid, Chinese herbal medicine, particle, etc.
7. Social pollution disposed: Disposed oil, disposed water, disposed dye water, assistant, active carbon.
