High Yield Rotary Sifter Screens Multi Deck Vibrating Screen Separator
Introduction of High Yield Multi-Screen Vibrating Screen Separator for Potash Feldspar:
High Yield Multi-Screen Vibrating Screen Separator for Potash Feldspar operates with harmonized efficiency and effectiveness. It functions well for wet/dry platforms, grading, classification, de-dusting, and quality control. These are needed features to improve the quality and safety of production materials, boosts productivity, and minimize cost and labor.
Function of High Yield Multi-Screen Vibrating Screen Separator for Potash Feldspar:
Grading Solid-liquid Separation Impurity Removal
1. Grading: Granules/powder accurate classification. Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi-layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.
2. Solid-liquid separation: Remove granules foreign matter in the liquid. The mixture of solid and liquid can be separated effectively by single or multi—layer type into different grade materials.
3. Impurity Removal: Remove the foreign matter or agglomerate. The model can quickly separate a few oversize or undersized particles from a quantity of materials.
Some Information You May Want to Know About High Yield Multi-Screen Vibrating Screen Separator for Potash Feldspar:
|Machine Shape||round shape|
|Screen Decks||1~5 layers of screen with 2~6 discharge ports (outlets)|
|Mesh Size||above 325 mesh (according to the materials)|
|Screen Frame/Holder||adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external), flange type etc.|
|Mesh De-blinding System||bouncing balls (with ball decks, rubber balls, silicone balls etc.), ultrasonic de-blinding system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm|
|Material||stainless steel 304, 316L, carbon steel, plastic materials etc.|
|Surface Treatment||Paint, sandblast and mirror polish, powder coating etc.|
|Function||solid-separation, grading, remove the impurity etc.|
|Moving Trajectory||three dimensional vibration motion|
|Damping Spring||carbon steel spring, stainless steel spring, air spring, rubber spring etc.|
|Motor||one set of vibrating motor, verticle arrangement (sufficient power), explosion proof motor optional|
|Motor Brand||AAREAL Made, OLI-WOLONG, Italvibras etc.|
|APO Safety System||Automatic Power Off Safety System is integrated in the motor|
|Quick-wear Parts||stainless steel woven wire mesh screen, perforated plate, bounce balls, clamps, springs, sealing rubber strip, verticle vibrating motor etc.|
|Optional Design||collecting tray, discharge gate, magnetic guard, quick release clamp, glass viewing port, etc.|
|Work Level||general grade, food grade, pharmaceutical grade etc.|
Structure of High Yield Multi-Screen Vibrating Screen Separator for Potash Feldspar:

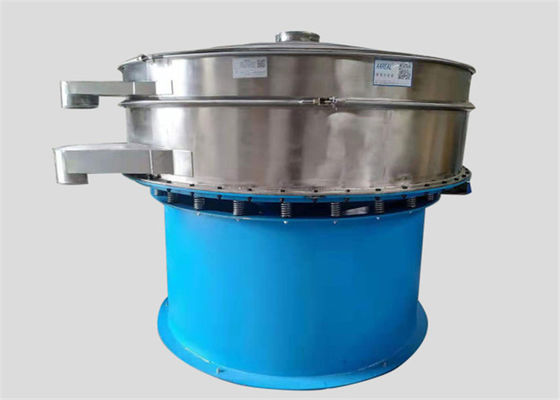

The Rotary Vibrating Screener is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends. Rotary vibrating screen can be produced in horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter also can be ranged from 400mm to 2000mm, with single or multiple screening decks, material can be total carbon steel, total stainless steel or material contact parts are stainless steel according to different product.
Working Principle of High Yield Multi-Screen Vibrating Screen Separator for Potash Feldspar:
The round gyratory vibrating screen has vertical type motor as excitation source, and the motor has eccentric block at the top and bottom which makes the rotating of motor convert horizontal, vertical and inclined three- dimensional motion. Then the motor pass the motion into screen mesh and make the material diffuse outward gradually. Because of that, we call it round vibrating screen machine. The round vibrating screen has the advantage of long running track and high-usage screen. Adjust the phase angle of eccentric block can change the motion track to separate the material precisely.
After starting, the eccentric block at the top and bottom of motor will generate a composite inertial force which force the screen rotary moving. The vibrating screen frame make reciprocating motion continuously under the shaking of motor and forward the screen mesh move cycling. The material on screen mesh made directional movement with screen box. In the process of moving, the material smaller than mesh size pass the mesh and fall to the under layer which called undersize, and the material bigger than mesh size separated through outlet, then the separating is completed. The function and running track of round vibrating screen as follows.
Technical Parameters of High Yield Multi-Screen Vibrating Screen Separator for Potash Feldspar:
|Model||Power||Screen Surface Diameter||Effective Screen Area (sqm)||Layers of Screen|
Note: our company reserve the right to modify the above data.
Features of High Yield Multi-Screen Vibrating Screen Separator for Potash Feldspar:
1. High efficiency,design is exquisite and durable, any powder mucoid screening.
2. Easy to change screen, to operate and to clean.
3. Mesh is not blocked,Powder is not float in the sky,Mesh to 500 mesh or 0.028 mm.
4. Impurity, coarse material automatic discharge;Can connect operation.
5. Unique network frame design, screen mesh use time long, fast to replace the network only for 3 to 5 minutes.
6. Small volume, saving space, easy to move.
7. Screen up to five layers.
Application of High Yield Multi-Screen Vibrating Screen Separator for Potash Feldspar:
1. Food industry: Sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup, etc.
2. Chemical industry: Rubber, PVC powder, resin, pigment, industrial medicine, cosmetic, coatings, etc.
3. Ceramic and abrasive: Alumina, quartz sand, mud etc.
4. Metal, metallurgy and mining industry: Aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, manganese dioxide, electrolysis copper powder, electromagnetism materials, grinding powder, fire-resistant material, lime, alumina, heavy calcium carbonate, etc.
5. Paper making: Paper pulp, paint, wasted water recycling.
6. Pharmacy profession: Chinese herbal medicine, western medicine powder, liquid, particle, etc.
7. Social pollution disposed: Disposed oil, disposed water, disposed dye water, assistant, active carbon.
