|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Model:||AY-400, 600, 800, 1000, 1200, 1500, 1800 Etc.||Function:||Grading, Filtering, Impurity Removal Etc.|
|Application:||For Both Dry And Wet Screening||Surface Finish:||Mirror Finish, Sandblast, Paint, Powder Coating, Etc.|
|Mesh Screen:||Perforated Plate, Woven Wire Mesh, Grizzly Bar Etc.||Screen Frame:||Bolt Insert Type, Flange Type, Adhesive Type, Ultrasonic Type Etc.|
|Mesh Cleaning System:||Ultrasonic System, Rubber Balls, Rotary Brush Etc.||Moving Trajectory:||Three-dimensional Motion|
air classifier machine,
rotary trommel screen

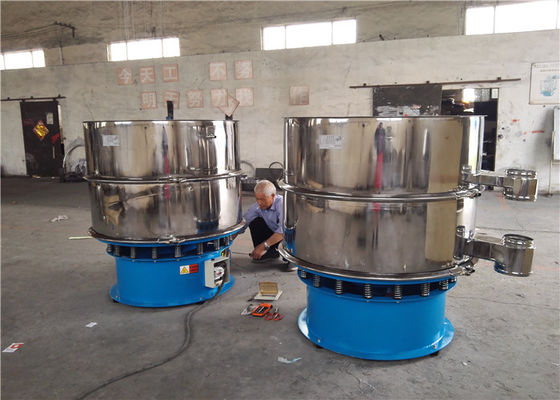

Industrial Rotary Sifter Screens Material Screening Equipment Ultrasonic System
Introduction of Industrial Rotary Vibration Screening Equipment for Paper Making Coating:
Industrial Rotary Vibration Screening Equipment for Paper Making Coating is a high-precision fine powder sieving machine. It has the characteristics of low noise, high efficiency, contributing to quick change-over net(only 3-5 minutes). its fully enclosed structure is suitable for Sieving and filtering granular, powder, mucus and other materials, and no dust drift.
Application of Industrial Rotary Vibration Screening Equipment for Paper Making Coating:
1. Chemical industry: resin, coating, industrial medicine, cosmetics, paint, Chinese medicine powder, etc.
2. Food industry: sugar powder, starch, salt, rice flour, milk powder, soya bean milk, egg powder, soy sauce, fruit juice, etc.
3. Metal, metallurgical mining: aluminum, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic material, grinding powder, refractory, kaolin, lime, alumina, heavy calcium carbonate, quartz sand and so on.
4. Public nuisance treatment: waste oil, waste water, dyeing and finishing wastewater, auxiliaries, activated carbon and so on.
Some Information You May Want to Know About Industrial Rotary Vibration Screening Equipment for Paper Making Coating:
|Machine Shape||round shape|
|Screen Decks||1~5 layers of screen with 2~6 discharge ports (outlets)|
|Mesh Size||above 325 mesh (according to the materials)|
|Screen Frame/Holder||adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external), flange type etc.|
|Mesh De-blinding System||bouncing balls (with ball decks, rubber balls, silicone balls etc.), ultrasonic de-blinding system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm|
|Material||stainless steel 304, 316L, carbon steel, plastic materials etc.|
|Surface Treatment||Paint, sandblast and mirror polish, powder coating etc.|
|Function||solid-separation, grading, remove the impurity etc.|
|Moving Trajectory||three dimensional vibration motion|
|Damping Spring||carbon steel spring, stainless steel spring, air spring, rubber spring etc.|
|Motor||one set of vibrating motor, verticle arrangement (sufficient power), explosion proof motor optional|
|Motor Brand||AAREAL Made, OLI-WOLONG, Italvibras etc.|
|APO Safety System||Automatic Power Off Safety System is integrated in the motor|
|Quick-wear Parts||stainless steel woven wire mesh screen, perforated plate, bounce balls, clamps, springs, sealing rubber strip, verticle vibrating motor etc.|
|Optional Design||collecting tray, discharge gate, magnetic guard, quick release clamp, glass viewing port, etc.|
|Work Level||general grade, food grade, pharmaceutical grade etc.|
Function of Industrial Rotary Vibration Screening Equipment for Paper Making Coating:
Grading Solid-liquid Separation Impurity Removal
1. Grading: Granules/powder accurate classification
2. Solid-liquid separation: Remove granules foreign matter in the liquid
3. Impurity Removal: Remove the foreign matter or agglomerate
Structure of Industrial Rotary Vibration Screening Equipment for Paper Making Coating:
Rotary Vibrating Sieve is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends. Rotary vibrating screen can be produced in horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter also can be ranged from 400mm to 2000mm, with single or multiple screening decks, material can be total carbon steel, total stainless steel or material contact parts are stainless steel according to different product.
Advantages of Industrial Rotary Vibration Screening Equipment for Paper Making Coating:
1. Various material separation range- power or particle,wet or dry, heavy or light,coarse or fine, hot or cold.
2. Various size range-available diameter from 400mm to 2000mm,mesh size can reach 500 mesh ( 0.028 mm).
3. Environmentally Friendly- Fully enclosed structure,no dust pollution,improve working conditions for operators as well.
4. Quick Screen Changes-Quick release device is provided to replace the screen with 5 minutes.
5. Automatic screen cleaning-bouncing balls keep screen openings clean and maintain a good efficiency.
6. Customized order- Rotary vibrating screen can be customized according to customer’s demand.
7. Unique design-Mature technology,compact and simple structure,convenient installation and maintenance.
8. Wide application-Rotary vibrating screen is applicable to any powder, granule, particle and mucus.
Working Principle of Industrial Rotary Vibration Screening Equipment for Paper Making Coating:
The round gyratory vibrating screen has vertical type motor as excitation source, and the motor has eccentric block at the top and bottom which makes the rotating of motor convert horizontal, vertical and inclined three- dimensional motion. Then the motor pass the motion into screen mesh and make the material diffuse outward gradually. Because of that, we call it round vibrating screen machine. The round vibrating screen has the advantage of long running track and high-usage screen. Adjust the phase angle of eccentric block can change the motion track to separate the material precisely.
After starting, the eccentric block at the top and bottom of motor will generate a composite inertial force which force the screen rotary moving. The vibrating screen frame make reciprocating motion continuously under the shaking of motor and forward the screen mesh move cycling. The material on screen mesh made directional movement with screen box. In the process of moving, the material smaller than mesh size pass the mesh and fall to the under layer which called undersize, and the material bigger than mesh size separated through outlet, then the separating is completed. The function and running track of round vibrating screen as follows.
Technical Parameters of Industrial Rotary Vibration Screening Equipment for Paper Making Coating:
|Model||Power||Screen Surface Diameter||Effective Screen Area (sqm)||Layers of Screen|
Note: our company reserve the right to modify the above data.
