|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Function:||Grading, Filtering, Impurity Removal Etc.||Model:||AY-400, 600, 800, 1000, 1200, 1500, 1800 Etc.|
|Moving Trajectory:||Three-dimensional Motion||Mesh Screen:||Perforated Plate, Woven Wire Mesh, Grizzly Bar Etc.|
|Layers Of Screen:||1~5 Layers Of Screen||Screen Holder:||Bolt Insert Type, Adhesive Type, Ultrasonic Type Etc.|
|Surface Finish:||Sandblast, Mirror Finish, Paint, Powder Coating, Etc.||Mesh De-blinding:||Rubber Balls, Ultrasonic System Etc.|
rotary sifter machine,
rotary trommel screen

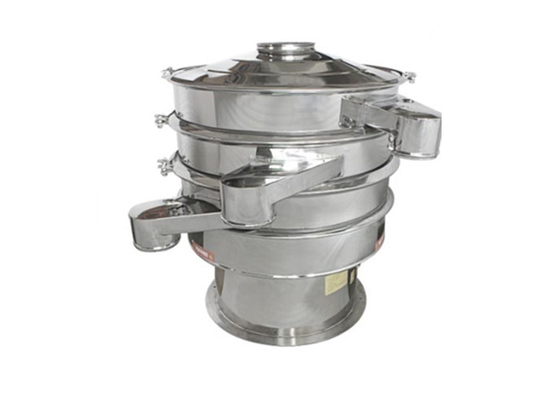

3D Rotary Ultrasonic Sieving Machine Multi Deck For Pearlescent Pigment
Introduction of Multi-deck High Precision Rotary Vibrating Sieve Machine for Pearlescent Pigment:
Multi-deck High Precision Rotary Vibrating Sieve Machine for Pearlescent Pigment is a high precision fine powder sieving machine. It is suitable for wet and dry grading, classification, de-dusting, and quality control. This kind of screening equipment is also called circular vibrating screen, circular vibrating sieve, round vibrating screen, round vibrating sieve, rotary vibrating screen, rotary vibrating sieve, vibro screen, vibro sieve, vibro sifter, gyro screen, gyro sieve, round vibrating separator etc.
Technical Parameters of Multi-deck High Precision Rotary Vibrating Sieve Machine for Pearlescent Pigment:
|Model||Power||Screen Surface Diameter||Effective Screen Area (sqm)||Decks|
Note: our company reserve the right to modify the above data.
Some Information You May Want to Know About Multi-deck High Precision Rotary Vibrating Sieve Machine for Pearlescent Pigment:
|Machine Shape||round shape|
|Screen Decks||1~5 layers of screen with 2~6 discharge ports (outlets)|
|Mesh Size||above 325 mesh (according to the materials)|
|Screen Frame/Holder||adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external), flange type etc.|
|Mesh De-blinding System||bouncing balls (with ball decks, rubber balls, silicone balls etc.), ultrasonic de-blinding system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm|
|Material||stainless steel 304, 316L, carbon steel, plastic materials etc.|
|Surface Treatment||Paint, sandblast and mirror polish, powder coating etc.|
|Function||solid-separation, grading, remove the impurity etc.|
|Moving Trajectory||three dimensional vibration motion|
|Damping Spring||carbon steel spring, stainless steel spring, air spring, rubber spring etc.|
|Motor||one set of vibrating motor, verticle arrangement (sufficient power), explosion proof motor optional|
|Motor Brand||AAREAL Made, OLI-WOLONG, Italvibras etc.|
|APO Safety System||Automatic Power Off Safety System is integrated in the motor|
|Quick-wear Parts||stainless steel woven wire mesh screen, perforated plate, bounce balls, clamps, springs, sealing rubber strip, verticle vibrating motor etc.|
|Optional Design||collecting tray, discharge gate, magnetic guard, quick release clamp, glass viewing port, etc.|
|Work Level||general grade, food grade, pharmaceutical grade etc.|
Purpose of Multi-deck High Precision Rotary Vibrating Sieve Machine for Pearlescent Pigment:
Grading Solid-liquid Separation Impurity Removal
1. Grading: Granules/powder accurate classification
2. Solid-liquid separation: Remove granules foreign matter in the liquid
3. Impurity Removal: Remove the foreign matter or agglomerate
Structure of Multi-deck High Precision Rotary Vibrating Sieve Machine for Pearlescent Pigment:
The circular rotary vibrating sieve is made up of dust proof cover, screen frame, vibrating body, inlet and outlet ports, spring buffer, base, vibrating motor, upper and lower heavy hammer, clamp ring,and other parts. The exciting force will generate by the rotation of vibrating motor.
Advantages Multi-deck High Precision Rotary Vibrating Sieve Machine for Pearlescent Pigment:
1. Simple and functional design – higher capacity, easy use, less maintenance, lower noise, and require minimal floor space.
2. Lower energy consumption – reduce cost.
3. Light weight - easily movable with pellet jack or forklift.
4. Highly durable - designed for long hours of operation with minimal service required.
5. Anti-binding devices - prevent screen clog without creating dust clouds during operations.
6. Up to 5 screens per unit - allowing multiple separations with just one unit for cost effective operation.
7. Automatic discharge of separated materials - continuous and uninterrupted production.
8. Quick change design - allows screen change in less than 5 minutes.
9. Stainless Steel - all contact parts in stainless steel SS304. Full or partial SS316L upgrades available.
10. Wide range of sizes and modifications available to suit all types of powder and viscous liquids.
Working Principle of Multi-deck High Precision Rotary Vibrating Sieve Machine for Pearlescent Pigment:
The round gyratory vibrating screen has vertical type motor as excitation source, and the motor has eccentric block at the top and bottom which makes the rotating of motor convert horizontal, vertical and inclined three- dimensional motion. Then the motor pass the motion into screen mesh and make the material diffuse outward gradually. Because of that, we call it round vibrating screen machine. The round vibrating screen has the advantage of long running track and high-usage screen. Adjust the phase angle of eccentric block can change the motion track to separate the material precisely.
After starting, the eccentric block at the top and bottom of motor will generate a composite inertial force which force the screen rotary moving. The vibrating screen frame make reciprocating motion continuously under the shaking of motor and forward the screen mesh move cycling. The material on screen mesh made directional movement with screen box. In the process of moving, the material smaller than mesh size pass the mesh and fall to the under layer which called undersize, and the material bigger than mesh size separated through outlet, then the separating is completed. The function and running track of round vibrating screen as follows.
Application of Multi-deck High Precision Rotary Vibrating Sieve Machine for Pearlescent Pigment:
Our Rotary Vibrating Screen is widely used in many industries, covering food, chemical, ceramic, metallurgy, pollution treatment and so on, dealing with various kinds of materials.
1. Ceramic and abrasive: Alumina, quartz sand, mud etc.
2. Food industry: Sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup, etc.
3. Chemical industry: Rubber, PVC powder, resin, pigment, industrial medicine, cosmetic, coatings, etc.
4. Metal, metallurgy and mining industry: Aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, manganese dioxide, electrolysis copper powder, electromagnetism materials, grinding powder, fire-resistant material, lime, alumina, heavy calcium carbonate, etc.
5. Paper making: Paper pulp, paint, wasted water recycling.
6. Pharmacy profession: Chinese herbal medicine, western medicine powder, liquid, particle, etc.
7. Social pollution disposed: Disposed oil, disposed water, disposed dye water, assistant, active carbon.
