|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Moving Track:||Three-dimensional Motion||Layers Of Screen:||1~3 Layers Suggested|
|Diameter:||400mm~2000 Mm (customizable)||Screen Material:||Stainless Steel, Nylon, Polyurethane, Plastic Etc.|
|Screen Form:||Woven Wire Mesh, Perforated Plate, Grizzly Bar Etc.||Mesh De-blinding:||Ultrasonic, Bounce Balls, Rotary Brush System Etc.|
|Surface Treatment:||Paint, Sandblast, Mirror Finish, Etc.||Vibrating Motor:||Verticle Arrangement, Sufficient Power|
Enamel Vibrating Sieve Machine,
500mm Vibrating Sieve Machine,
Enamel vibro sieve machine

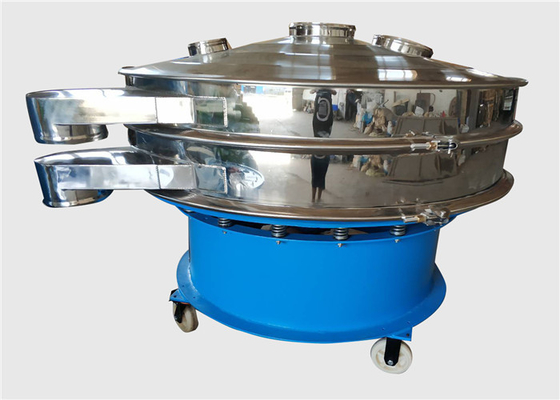

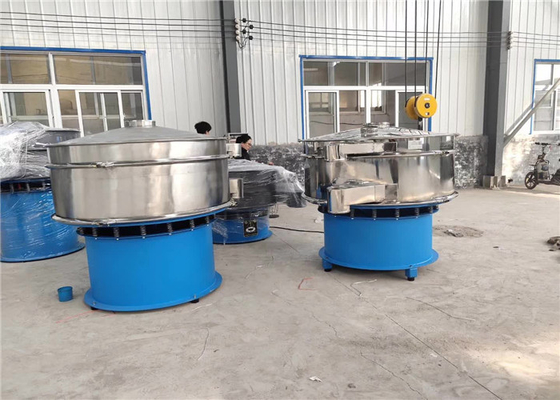

Introduction of High Yield And Accuracy Circular Vibrating Sieve Machine for Enamel Powder:
High Yield And Accuracy Circular Vibrating Sieve Machine for Enamel Powder is designed as a high-precision screening machinery. It is also known as the vibro sifter, vibro shifer, vibro screen, gyro screen, round separator, circular vibrating screen, circular vibrating sieve, rotary vibrating screen, rotary vibrating sieve, etc. This sieving equipment is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weights installed at both ends.
Structure of High Yield And Accuracy Circular Vibrating Sieve Machine for Enamel Powder:
The circular rotary vibrating sieve is made up of dust proof cover, screen frame, vibrating body, inlet and outlet ports, spring buffer, base, vibrating motor, upper and lower heavy hammer, clamp ring,and other parts. The exciting force will generate by the rotation of vibrating motor.
Some Information You May Care About High Yield And Accuracy Circular Vibrating Sieve Machine for Enamel Powder:
|Layers of Screen||1~5 layers of screen with 2~6 discharge ports (outlets)|
|Mesh Size||above 325 mesh (according to the materials)|
|Screen Frame||adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external), flange type etc.|
|Self-cleaning System||bouncing balls (with ball decks, rubber balls, silicone balls etc.), ultrasonic de-blinding system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm etc.|
|Material||stainless steel 304, 316L, carbon steel, plastic materials etc.|
|Surface Treatment||Paint, sandblast and mirror polish etc.|
|Function||solid-separation, grading, remove the impurity etc.|
|Movement||three dimensional vibration motion|
|Damping Spring||carbon steel spring, stainless steel spring, air spring, rubber spring etc.|
|Motor||one set of vibrating motor, verticle arrangement (sufficient power), explosion proof optional|
|Motor Brand||AAREAL Made, OLI-WOLONG, Italvibras etc.|
|APO Safety System||Automatic Power Off Safety System is integrated in the motor|
stainless steel woven wire mesh screen, perforated plate, bounce balls, clamps, springs, sealing rubber strip, verticle vibrating motor etc.
|Optional Design||collecting tray, discharge gate, magnetic guard, quick release clamp, glass viewing port, etc.|
|Work Level||general grade, food grade, pharmaceutical grade etc.|
Purpose of High Yield And Accuracy Circular Vibrating Sieve Machine for Enamel Powder:
Grading Solid-liquid Separation Impurity Removal
1. Classification: Granules/powder accurate classification
2. Filtration: Remove granules foreign matter in the liquid
3. Removal impurity: Remove the foreign matter or agglomerate
Working Principle of High Yield And Accuracy Circular Vibrating Sieve Machine for Enamel Powder:
The round gyratory vibrating sieve machines have vertical type motor as excitation source, and the motor has eccentric block at the top and bottom which makes the rotating of motor convert horizontal, vertical and inclined three- dimensional motion. Then the motor pass the motion into screen mesh and make the material diffuse outward gradually. Because of that, we call it round vibrating screen machine. The circular vibrating screener has the advantage of long running track and high-usage screen. Adjust the phase angle of eccentric block can change the motion track to separate the material precisely.
Technical Parameters of High Yield And Accuracy Circular Vibrating Sieve Machine for Enamel Powder:
|Model||Power||Screen Surface Diameter||Effective Screen Area (sqm)||Decks|
Note: our company reserve the right to modify the above data.
Overall Dimensions of High Yield And Accuracy Circular Vibrating Sieve Machine for Enamel Powder:
Features of High Yield And Accuracy Circular Vibrating Sieve Machine for Enamel Powder:
1. Various material separation range- power or particle,wet or dry, heavy or light,coarse or fine, hot or cold.
2. Various size range-available diameter from 400mm to 2000mm,mesh size can reach 500 mesh ( 0.028 mm).
3. Environmentally Friendly- Fully enclosed structure,no dust pollution,improve working conditions for operators as well.
4. Quick Screen Replacement-Quick release device is provided to replace the screen with 5 minutes.
5. Automatic screen cleaning-bouncing balls keep screen openings clean and maintain a good efficiency.
6. Customized order- Rotary vibrating screen can be customized according to customer’s demand.
7. Unique design-Mature technology,compact and simple structure,convenient installation and maintenance.
8. Wide application-Rotary vibrating screen is applicable to any powder, granule, particle and mucus.
Application of High Yield And Accuracy Circular Vibrating Sieve Machine for Enamel Powder:
1. Ceramic and abrasive: Alumina, quartz sand, mud etc.
2. Chemical industry: PVC powder, resin, pigment, rubber, industrial medicine, cosmetic, coatings, etc.
3. Social pollution disposed: Disposed oil, disposed water, disposed dye water, assistant, active carbon.
4. Food industry: Sugar powder, starch, egg powder, sauce, salt, rice noodles, milk powder, soybean milk, syrup, etc.
5. Metal, metallurgy and mining industry: Aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, electrolysis copper powder, electromagnetism materials, manganese dioxide, grinding powder, fire-resistant material, lime, heavy calcium carbonate, alumina, etc.
6. Paper making: Paper pulp, paint, wasted water recycling.
7. Pharmacy profession: western medicine powder, liquid, Chinese herbal medicine, particle, etc.
