|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Moving Trajectory:||Three-dimensional Motion||Grade:||General Grade, Food Grade, Pharmaceutical Grade Etc.|
|Diameter:||400, 600, 800, 1000, 1200, 1500, 1800, 2000mm||Sieve Plate:||Perforated Plate, Woven Wire Mesh, Grizzly Bar Etc.|
|Layers Of Screen:||1~5 (recommend 1~3)||Screen Material:||Stainless Steel, Nylon, Polyurethane, Plastic Etc.|
|Mesh Cleaning System:||Ultrasonic, Bounce Balls, Rotary Brush System Etc.||Surface Finish:||Paint, Sandblast, Mirror Finish Etc.|
|Motor:||Verticle Vibration Motor||Application:||Flour, Starch, Rice Flour, Milk Powder Etc.|
Starch Gyratory Screen Separator,
Cassava Gyratory Screen Separator,
Cassava vibrating screen separator

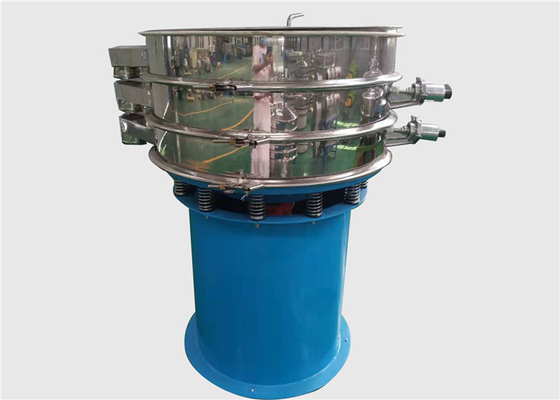

Verticle Gyratory Screen Separator Machine For Tapioca Flour Cassava Meal Starch
Introduction of High Accuracy Gyro Vibrating Screen for Tapioca Flour Cassava Meal Starch:
High Accuracy Gyro Vibrating Screen for Tapioca Flour Cassava Meal Starch is designed for general screening or separation. This kind of sieving machine is also known as the rotary vibrating screen, rotary vibrating sieve, vibro sifter, vibro shifer, vibro screen, gyro screen etc.
It is suitable for wet and dry, grading, classification, de-dusting, and quality control. The multi-purpose model is essential to improve quality and safety of production materials, increase productivity, and reduce cost and labour.
Continuous development along with various available add-ons, makes the LS basic model a versatile unit capable of separation up to 6 grades (5 layers of screens).
Some Information About High Accuracy Gyro Vibrating Screen for Tapioca Flour Cassava Meal Starch:
|Layers of Screen||1~5 screen decks with 2~6 discharge ports|
|Mesh Size||above 325 mesh|
|Screen Frame||adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external), flange type etc.|
|Self-cleaning System||bouncing balls (with ball decks, rubber balls, silicone balls etc.), ultrasonic de-blinding system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm etc.|
|Material||stainless steel 304, 316L, carbon steel, plastic materials etc.|
|Surface Treatment||Paint, sandblast and mirror polish etc.|
|Function||solid-separation, grading, remove the impurity etc.|
|Movement||three dimensional vibration motion|
|Damping Spring||carbon steel spring, stainless steel spring, air spring, rubber spring etc.|
|Motor||one set of vibrating motor, verticle arrangement (sufficient power)|
|Motor Brand||AAREAL Made, OLI-WOLONG, Italvibras etc.|
|APO Safety System||Automatic Power Off Safety System is integrated in the motor|
mesh screen, perforated plate, bounce balls, clamps, springs,
sealing rubber strip, vibrating motor etc.
|Optional Design||discharge gate, magnetic guard, quick release clamp, glass viewing port, collecting tray etc.|
|Work Level||general grade, food grade, pharmaceutical grade etc.|
Structure of High Accuracy Gyro Vibrating Screen for Tapioca Flour Cassava Meal Starch:
The rotary vibrating sifter machine is made up of spring buffer, base, upper and lower heavy hammer,vibrating motor, screen frame, clamp ring,vibrating body, inlet and outlet port, dust proof cover and other parts. The exciting force will generate by the rotation of vibrating motor.
Purpose of High Accuracy Gyro Vibrating Screen for Tapioca Flour Cassava Meal Starch:
Grading Solid-liquid Separation Impurity Removal
1. Classification: Granules/powder accurate classification
2. Filtration: Remove granules foreign matter in the liquid
3. Removal impurity: Remove the foreign matter or agglomerate
Working Principle of High Accuracy Gyro Vibrating Screen for Tapioca Flour Cassava Meal Starch:
The exciting force drives the vibrating body to vibrate. So the materials on the screen cloth can shake to reach the objective that filters different grade materials., The adjustable eccentric hammer is driven to the center line through the motor, caused centrifuged force under the state of unbalance and so that the materials from regular spiral. Speed and track of materials on the screen can be controlled by adjusting the angle of the two eccentric weights.
Characteristics of High Accuracy Gyro Vibrating Screen for Tapioca Flour Cassava Meal Starch:
1. High efficiency, elegant design and durable, available for any powder, particles and viscous liquid.
2. Easy of cleaning and operating, the unique design of screen grid, mesh will use a long time, only for three to five minutes to replace the screen.
3. Lower noise, less than 75 dB.
4. Double screen, mother screen can be fixed, child screen can be detachable, easy to change screen and use for a long time.
5. The vibrating screen is designed. Exquisite and easy to assemble, one person can operate the vibrating sifter.
Technical Parameters of High Accuracy Gyro Vibrating Screen for Tapioca Flour Cassava Meal Starch:
|Model||Power||Screen Surface Diameter||Effective Screen Area (sqm)||Decks|
Note: our company reserve the right to modify the above data.
Application of High Accuracy Gyro Vibrating Screen for Tapioca Flour Cassava Meal Starch:
1. Food industry: Sugar powder, starch, egg powder, sauce, salt, rice noodles, milk powder, soybean milk, syrup, etc.
2. Chemical industry: PVC powder, resin, pigment, rubber, industrial medicine, cosmetic, coatings, etc.
3. Metal, metallurgy and mining industry: Aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, electrolysis copper powder, electromagnetism materials, manganese dioxide, grinding powder, fire-resistant material, lime, heavy calcium carbonate, alumina, etc.
4. Pharmacy profession: western medicine powder, liquid, Chinese herbal medicine, particle, etc.
5. Social pollution disposed: Disposed oil, disposed water, disposed dye water, assistant, active carbon.
6. Ceramic and abrasive: Alumina, quartz sand, mud etc.
7. Paper making: Paper pulp, paint, wasted water recycling.
Overall Dimensions of High Accuracy Gyro Vibrating Screen for Tapioca Flour Cassava Meal Starch:
|Model||A||B||C||D||E||F||G||I||Single Layer Height||Double Layer Height||
