|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Screen:||Woven Wire Mesh, Perforated Plate, Grizzly Bar Etc.||Layers Of Screen:||1~5 (suggest 1~3)|
|Screen Material:||Stainless Steel, Polyurethane, Nylon, Plastic Etc.||Mesh De-blinding System System:||Bounce Balls, Rotary Brush System, Ultrasonic System Etc.|
|Grade:||General Grade, Food Grade, Pharmaceutical Grade Etc.||Surface Finish:||Paint, Sandblast, Mirror Finish Etc.|
MSG rotary soil screener,
Monosodium rotary soil screener,
Glutamate rotary sieve machine

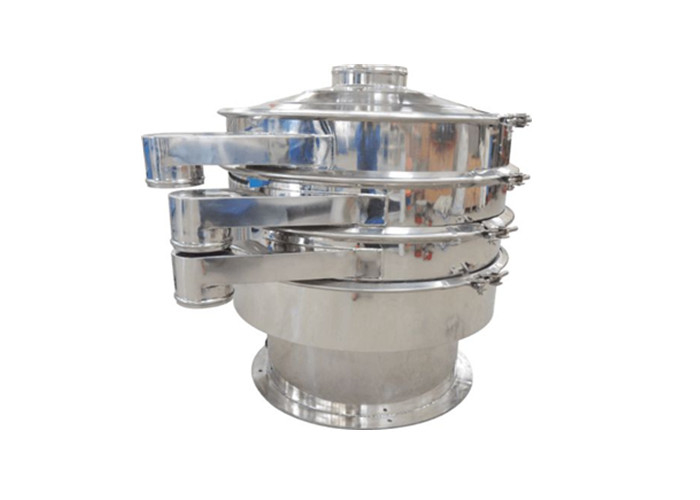

Introduction of Industrial Food Grade Rotary Vibratory Screener for MSG Monosodium Glutamate:
Industrial Food Grade Rotary Vibratory Screener for MSG Monosodium Glutamate belongs to a high precision fine powder separation machine. High screen efficiency and novel design are the main features of vibrating sifter. It adds the special cleaning device- bouncing ball. It can bounce up and down while the screen cloth is shaking, which can effectively avoid clogging. The sealing structure design and all- closed type which can be avoid polluting the environment . The installation is very safe and convenient.
Application of Industrial Food Grade Rotary Vibratory Screener for MSG Monosodium Glutamate:
1. Metal,Metallurgical Mining: aluminum powder, lead powder, ore alloy powder, powder electrodes, manganese dioxide, copper powder, magnetic power, abrasives, refractory, kaolin, limestone, alumina, calcium carbonate, quartz sand.
2. Food industry: sugar, starch, salt, rice flour, milk powder, soy milk, egg, soy sauce, fruit juice.
3. Chemical industry: resins, coatings, industrial chemicals, cosmetics, paints, herbal powder.
4. Other industries: abandoned oil, abandoned water, wasted-water dyeing, paper, chemicals, such as activated carbon.
Characteristics of Industrial Food Grade Rotary Vibratory Screener for MSG Monosodium Glutamate:
1. Simple and functional design – higher capacity, easy use, less maintenance, lower noise, and require minimal floor space.
2. Highly durable - designed for long hours of operation with minimal service required.
3. Simple and functional design - higher capacity, easy use, less maintenance, lower noise, and require minimal floor space.
4. Anti-binding devices - prevent screen clog without creating dust clouds during operations.
5. Automatic discharge of separated materials - continuous and uninterrupted production.
6. Up to 5 screens per unit - allowing multiple separations with just one unit for cost effective operation.
7. Light weight - easily movable with pellet jack or forklift.
8. Quick change design - allows screen change in less than 5 minutes.
9. Stainless Steel - all contact parts in stainless steel SS304. Full or partial SS316L upgrades available.
10. Wide range of sizes and modifications available to suit all types of powder and viscous liquids.
11. Lower energy consumption - reduce cost.
Purpose of Industrial Food Grade Rotary Vibratory Screener for MSG Monosodium Glutamate:
Grading Solid-liquid Separation Impurity Removal
1. Classification: Granules/powder accurate classification
2. Filtration: Remove granules foreign matter in the liquid
3. Removal impurity: Remove the foreign matter or agglomerate
Some Information About Industrial Food Grade Rotary Vibratory Screener for MSG Monosodium Glutamate:
|Layers of Screen||1~5 screen decks with 2~6 discharge ports|
|Mesh Size||above 325 mesh|
|Screen Frame||adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external), flange type etc.|
|Self-cleaning System||bouncing balls (with ball decks, rubber balls, silicone balls etc.), ultrasonic de-blinding system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm|
|Material||stainless steel 304, 316L, carbon steel, plastic materials etc.|
|Surface Treatment||Paint, sandblast and mirror polish etc.|
|Function||solid-separation, grading, remove the impurity etc.|
|Movement||three dimensional vibration motion|
|Damping Spring||carbon steel spring, stainless steel spring, air spring, rubber spring etc.|
|Motor||one set of vibrating motor, verticle arrangement (sufficient power)|
|Motor Brand||AAREAL Made, OLI-WOLONG, Italvibras etc.|
|APO Safety System||Automatic Power Off Safety System is integrated in the motor|
mesh screen, perforated plate, bounce balls, clamps, springs,
sealing rubber strip, vibrating motor etc.
|Optional Design||discharge gate, magnetic guard, quick release clamp, glass viewing port, collecting tray etc.|
|Work Level||general grade, food grade, pharmaceutical grade etc.|

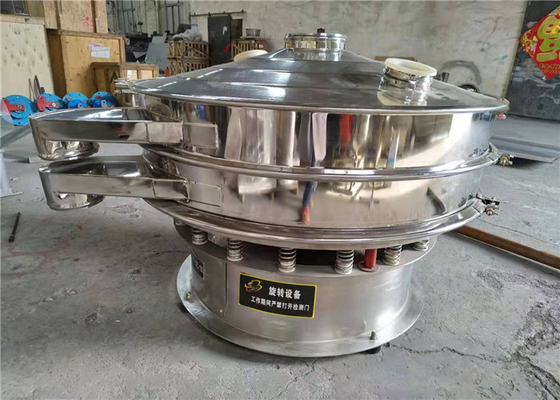

Structure of Industrial Food Grade Rotary Vibratory Screener for MSG Monosodium Glutamate:
The rotary vibro sieve is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends. Our rotary vibrating screen machine can be produced in horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter also can be ranged from 400mm to 2000mm, with single or multiple screening decks, material can be total carbon steel, total stainless steel or material contact parts are stainless steel according to different product.
Working Principle of Industrial Food Grade Rotary Vibratory Screener for MSG Monosodium Glutamate:
The basic principle of the rotary vibration screening filter sieve is the heavy hammer (unbalanced heavy hammer) installed in the electrical axis transform the motor's rotary motion into horizontal, vertical, and inclined three dimensional movement, then this movement passed to the screen surface. By adjusting the upper and lower ends of heavy hammer's phase angle, which can change the trajectories of materials on the screen surface.
Overall Dimensions of Industrial Food Grade Rotary Vibratory Screener for MSG Monosodium Glutamate:
|Model||A||B||C||D||E||F||G||I||Single Layer Height||Double Layer Height||
Technical Parameters of Industrial Food Grade Rotary Vibratory Screener for MSG Monosodium Glutamate:
|Model||Power||Screen Surface Diameter||Effective Screen Area (sqm)||Decks|
Note: our company reserve the right to modify the above data.
Contact Person: Ms. Magie
Alternative Name: flo-thru sifter, flow-thru separator, compact sieve, safety screeners, control sieves, low-profile vibrating sieve, low profile separator, inline vibrating screen etc.
Machine Diameter: 400mm~2100mm
Layers of Screen: 1~2 screen layers
Purpose: suitable for eliminating oversized materials rapidly from powders and liquids
Advantages: large capacity, short height, compact design, fast screen replacement etc.
Purpose: suitable for eliminating oversized material rapidly from powders and liquids
Machine Diameter: 600m~2100mm
Layers of Screen: 1~2 decks (multiple screen decks can be customized according to the specific situation)
