|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Movement:||Three-dimensional Motion||Max. Diameter:||2000mm|
|Mesh De-blinding System:||Bounce Balls, Rotary Brush System, Ultrasonic System Etc.||Layers Of Screen:||1~5 (suggest 1~3)|
|Screen:||Woven Wire Mesh, Perforated Plate, Grizzly Bar Etc.||Screen Frame:||L Type, Flange Type, Adhesive Type, Ultrasonic Type Etc.|
|Surface Finish:||Paint, Sandblast, Mirror Finish Etc.||Screen Material:||Stainless Steel, Polyurethane, Nylon, Plastic Etc.|
Fluorescent Vibrating Sieve Screen,
3D Vibrating Sieve Screen,
Fluorescent dewatering vibrating screen

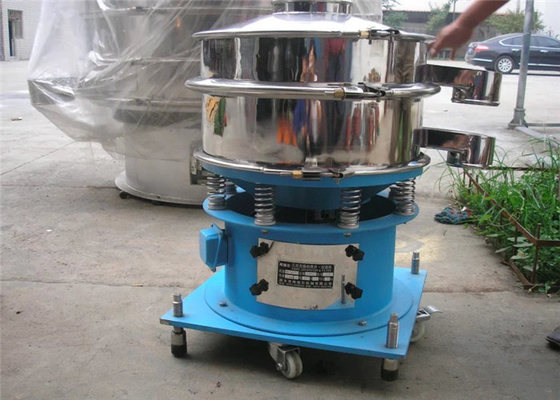

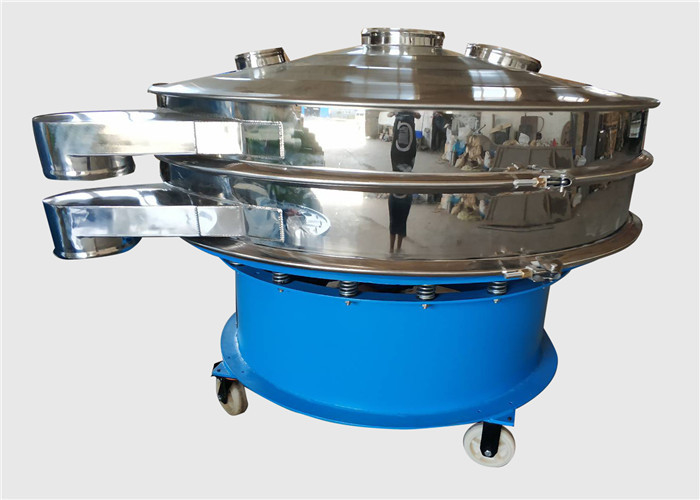

High Precision Vibrating Sieve Screen Three Dimensional For Fluorescent Powder
Introduction of High Precision Classic Three Dimensional Vibrating Sieve for Fluorescent Powder:
High Precision Classic Three Dimensional Vibrating Sieve for Fluorescent Powder belongs to a high precision fine powder separation machine. High screen efficiency and novel design are the main features of vibrating sifter. It adds the special cleaning device- bouncing ball. It can bounce up and down while the screen cloth is shaking, which can effectively avoid clogging. The sealing structure design and all- closed type which can be avoid polluting the environment . The installation is very safe and convenient.
Characteristics of High Precision Classic Three Dimensional Vibrating Sieve for Fluorescent Powder:
1. Simple and functional design – higher capacity, easy use, less maintenance, lower noise, and require minimal floor space.
2. Highly durable - designed for long hours of operation with minimal service required.
3. Simple and functional design - higher capacity, easy use, less maintenance, lower noise, and require minimal floor space.
4. Anti-binding devices - prevent screen clog without creating dust clouds during operations.
5. Automatic discharge of separated materials - continuous and uninterrupted production.
6. Up to 5 screens per unit - allowing multiple separations with just one unit for cost effective operation.
7. Light weight - easily movable with pellet jack or forklift.
8. Quick change design - allows screen change in less than 5 minutes.
9. Stainless Steel - all contact parts in stainless steel SS304. Full or partial SS316L upgrades available.
10. Wide range of sizes and modifications available to suit all types of powder and viscous liquids.
11. Lower energy consumption - reduce cost.
Structure of High Precision Classic Three Dimensional Vibrating Sieve for Fluorescent Powder:
The rotary vibro screening machine is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends. Rotary vibrating screen can be produced in horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter also can be ranged from 400mm to 2000mm, with single or multiple screening decks, material can be total carbon steel, total stainless steel or material contact parts are stainless steel according to different product.
Purpose of High Precision Classic Three Dimensional Vibrating Sieve for Fluorescent Powder:
Grading Solid-liquid Separation Impurity Removal
Some Information About High Precision Classic Three Dimensional Vibrating Sieve for Fluorescent Powder:
|Layers of Screen||1~5 screen decks with 2~6 discharge ports|
|Mesh Size||above 325 mesh|
|Screen Frame||adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external), flange type etc.|
|Self-cleaning System||bouncing balls (with ball decks, rubber balls, silicone balls etc.), ultrasonic de-blinding system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm|
|Material||stainless steel 304, 316L, carbon steel, plastic materials etc.|
|Surface Treatment||Paint, sandblast and mirror polish etc.|
|Function||solid-separation, grading, remove the impurity etc.|
|Movement||three dimensional vibration motion|
|Damping Spring||carbon steel spring, stainless steel spring, air spring, rubber spring etc.|
|Motor||one set of vibrating motor, verticle arrangement (sufficient power)|
|Motor Brand||AAREAL Made, OLI-WOLONG, Italvibras etc.|
|APO Safety System||Automatic Power Off Safety System is integrated in the motor|
mesh screen, perforated plate, bounce balls, clamps, springs,
sealing rubber strip, vibrating motor etc.
|Optional Design||discharge gate, magnetic guard, quick release clamp, glass viewing port, collecting tray etc.|
Working Principle of High Precision Classic Three Dimensional Vibrating Sieve for Fluorescent Powder:
The basic principle of the rotary vibration screening filter sieve is the heavy hammer (unbalanced heavy hammer) installed in the electrical axis transform the motor's rotary motion into horizontal, vertical, and inclined three dimensional movement, then this movement passed to the screen surface. By adjusting the upper and lower ends of heavy hammer's phase angle, which can change the trajectories of materials on the screen surface.
Overall Dimensions of High Precision Classic Three Dimensional Vibrating Sieve for Fluorescent Powder:
|Model||A||B||C||D||E||F||G||I||Single Layer Height||Double Layer Height||
Technical Parameters of High Precision Classic Three Dimensional Vibrating Sieve for Fluorescent Powder:
|Model||Power||Screen Surface Diameter||Effective Screen Area (sqm)||Decks|
Application of High Precision Classic Three Dimensional Vibrating Sieve for Fluorescent Powder:
1. Food industry: sugar, starch, salt, rice flour, milk powder, soy milk, egg, soy sauce, fruit juice.
2. Chemical industry: resins, coatings, industrial chemicals, cosmetics, paints, herbal powder.
3. Metal,Metallurgical Mining: aluminum powder, lead powder, ore alloy powder, powder electrodes, manganese dioxide, copper powder, magnetic power, abrasives, refractory, kaolin, limestone, alumina, calcium carbonate, quartz sand.
4. Other industries: abandoned oil, abandoned water, wasted-water dyeing, paper, chemicals, such as activated carbon.
