|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Movement:||Three-dimensional Motion||Diameter:||400, 600, 800, 1000, 1200, 1500, 1800, 2000mm|
|Screen Decks:||1~5 Screen Decks (suggest 1~3 Decks)||Screen Mesh:||Woven Wire Mesh, Perforated Plate, Grizzly Bar Etc.|
|Screen Frame:||L Type, Flange Type, Adhesive Type, Ultrasonic Type Etc.||Screen Material:||Stainless Steel, Polyurethane, Nylon, Plastic Etc.|
|Mesh De-blinding System:||Bounce Balls, Rotary Brush System, Ultrasonic System Etc.||Motor:||Verticle Vibrating Motor, 3 Phase Voltage|
Toner Vibro Screen Machine,
Carbon Vibro Screen Machine,
Toner vibro sifter machine

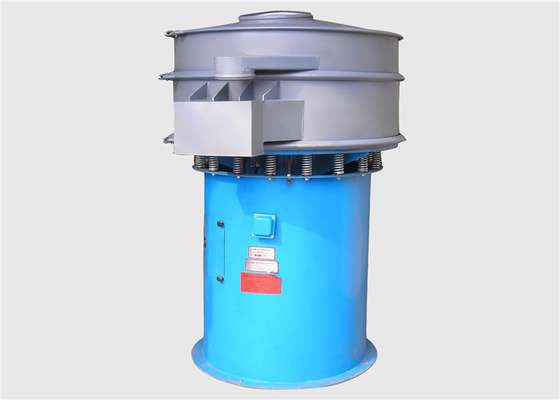

High Accuracy Vibro Screen Machine Vibratory Screen Separator For Toner Carbon Powder
Introduction of High Accuracy Rotary Vibrating Screen Separator for Toner Carbon Powder:
High Accuracy Rotary Vibrating Screen Separator for Toner Carbon Powder is designed as a high-precision screening machinery. It is more productive compared to conventional round vibro screen separators in terms of increased capacity, accuracy of screening, reduction in noise, loss of good product and production downtime. A standard motor is used rather than a vibratory type as it is easily available and less expensive than vibratory motors. It is designed to operate a continuous production line.
Structure of High Accuracy Rotary Vibrating Screen Separator for Toner Carbon Powder:
The rotary vibro screening machine is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends. Rotary vibrating screen can be produced in horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter also can be ranged from 400mm to 2000mm, with single or multiple screening decks, material can be total carbon steel, total stainless steel or material contact parts are stainless steel according to different product.
Purpose of High Accuracy Rotary Vibrating Screen Separator for Toner Carbon Powder:
Grading Solid-liquid Separation Impurity Removal
Some Information About High Accuracy Rotary Vibrating Screen Separator for Toner Carbon Powder:
|Layers of Screen||1~5 screen decks with 2~6 discharge ports|
|Mesh Size||above 325 mesh|
|Screen Frame||adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external), flange type etc.|
|Self-cleaning System||bouncing balls (with ball decks, rubber balls, silicone balls etc.), ultrasonic de-blinding system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm|
|Material||stainless steel 304, 316L, carbon steel, plastic materials etc.|
|Surface Treatment||Paint, sandblast and mirror polish etc.|
|Function||solid-separation, grading, remove the impurity etc.|
|Movement||three dimensional vibration motion|
|Damping Spring||carbon steel spring, stainless steel spring, air spring, rubber spring etc.|
|Motor||one set of vibrating motor, verticle arrangement (sufficient power)|
|Motor Brand||AAREAL Made, OLI-WOLONG, Italvibras etc.|
|APO Safety System||Automatic Power Off Safety System is integrated in the motor|
mesh screen, perforated plate, bounce balls, clamps, springs,
sealing rubber strip, vibrating motor etc.
|Optional Design||discharge gate, magnetic guard, quick release clamp, glass viewing port, collecting tray etc.|
Characteristics of High Accuracy Rotary Vibrating Screen Separator for Toner Carbon Powder:
1. Simple and functional design – higher capacity, easy use, less maintenance, lower noise, and require minimal floor space.
2. Highly durable - designed for long hours of operation with minimal service required.
3. Anti-binding devices - prevent screen clog without creating dust clouds during operations.
4. Automatic discharge of separated materials - continuous and uninterrupted production.
5. Up to 5 screens per unit - allowing multiple separations with just one unit for cost effective operation.
6. Simple and functional design - higher capacity, easy use, less maintenance, lower noise, and require minimal floor space.
7. Lower energy consumption – reduce cost.
8. Lower energy consumption - reduce cost.
9. Light weight - easily movable with pellet jack or forklift.
10. Quick change design - allows screen change in less than 5 minutes.
11. Stainless Steel - all contact parts in stainless steel SS304. Full or partial SS316L upgrades available.
12. Wide range of sizes and modifications available to suit all types of powder and viscous liquids.
Technical Parameters of High Accuracy Rotary Vibrating Screen Separator for Toner Carbon Powder:
|Model||Power||Screen Surface Diameter||Effective Screen Area (sqm)||Decks|
Working Principle of High Accuracy Rotary Vibrating Screen Separator for Toner Carbon Powder:
The rotary vibrating screener is made up of an upright motor as an excitation source. The upper and lower ends of the motor are equipped with an eccentric weight to convert the rotary motion of the motor into a horizontal, vertical, and inclined three-dimensional motion, and then transmit this motion to the screen surface. Adjusting the phase angle of the upper and lower ends can change the trajectory of the material on the screen surface.
Overall Dimensions of High Accuracy Rotary Vibrating Screen Separator for Toner Carbon Powder:
|Model||A||B||C||D||E||F||G||I||Single Layer Height||Double Layer Height||
Application of High Accuracy Rotary Vibrating Screen Separator for Toner Carbon Powder:
