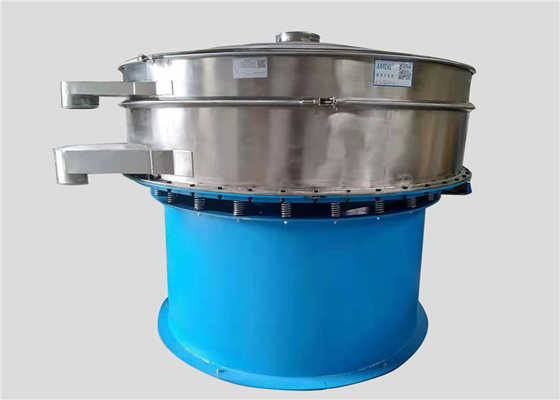

Three Dimensional Vibro Screen Machine For Heavy Ground Calcium Carbonate

Three Dimensional Vibro Screen Machine For Heavy Ground Calcium Carbonate

  • Three Dimensional Vibro Screen Machine For Heavy Ground Calcium Carbonate
  • Three Dimensional Vibro Screen Machine For Heavy Ground Calcium Carbonate
Three Dimensional Vibro Screen Machine For Heavy Ground Calcium Carbonate
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Motion: Three-dimensional Motion Model: AY-600, 800, 1000, 1200, 1500, 1800, 2000mm
Screen Decks: 1~5 Decks (suggest 1~3 Decks) Screen: Stainless Steel Woven Wire Mesh, Perforated Plate Etc.
Mesh Cleaning System: Bounce Balls, Ultrasonic System, Rotary Brush System Etc. Mesh Size: Below 500 Mesh
Screen Frame: L Type, Adhesive Type, Ultrasonic Type, Flange Type Etc. Application: Calcium Carbonate, Kaolin, Graphite, Quartz Sand Etc.
High Light:

Calcium Vibro Screen Machine

,

Carbonate Vibro Screen Machine

,

Calcium vibro separator machine

Three Dimensional Vibro Screen Machine For Heavy Ground Calcium Carbonate



Introduction of High Efficiency Rotary Vibrating Screen for Heavy Ground Calcium Carbonate:

High Efficiency Rotary Vibrating Screen for Heavy Ground Calcium Carbonate is also called round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, vibrating sifter, circular vibratory screen, circular vibrating screen, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro screen, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.

Three Dimensional Vibro Screen Machine For Heavy Ground Calcium Carbonate 0



Some Information About High Efficiency Rotary Vibrating Screen for Heavy Ground Calcium Carbonate:

Model AY
Shape circular or round shape
Layers of Screen 1~5 layers of screen with 2~6 outlets
Mesh Size above 325 mesh
Screen Frame adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external), flange type etc.
Self-cleaning System bouncing balls (with ball decks), ultrasonic de-blinding system, rotary brush system etc.
Diameter 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm
Material stainless steel 304, 316L, carbon steel, plastic materials etc.
Surface Treatment Paint, sandblast and polish etc.
Function solid-separation, grading, remove the impurity etc.
Movement three dimensional vibration motion
Damping Spring carbon steel spring, stainless steel spring, air spring, rubber spring etc.
Motor one set of vibrating motor, verticle arrangement
Motor Brand AAREAL Made, OLI-WOLONG, Italvibras etc.
APO Safety System Automatic Power Off Safety System is integrated in the motor
Quick-wear Parts

mesh screen, perforated plate, bounce balls, clamps, springs,

sealing rubber strip etc.

Optional Design discharge gate, magnetic guard, quick release clamp, glass viewing port, collecting tray etc.



Structure Diagram of High Efficiency Rotary Vibrating Screen for Heavy Ground Calcium Carbonate:

Three Dimensional Vibro Screen Machine For Heavy Ground Calcium Carbonate 1

  The rotary Vibrating Sieve is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends. Rotary vibrating screen can be produced in horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter also can be ranged from 400mm to 2000mm, with single or multiple screening decks, material can be total carbon steel, total stainless steel or material contact parts are stainless steel according to different product.



Features​ of High Efficiency Rotary Vibrating Screen for Heavy Ground Calcium Carbonate:

1. It is small in size, light in weight, convenient to move, and the direction of the discharge port can be adjusted arbitrarily. The coarse and fine materials are automatically discharged, which can be automated or manual.
2. High screening accuracy, high efficiency, any powder, grain, mucus can be used.
3. The screen is not blocked, the powder is not flying, the finest screening can reach 500 mesh (28 microns) and the finest filtration can reach 5 microns.
4. Unique grid design (female and child type), long-term use of the screen, convenient network change, only 3-5 minutes, easy to operate, easy to clean.
5. No mechanical action, easy maintenance, single or multi-layer use, the contact with the material is made of stainless steel (except for medical use).



Working Principle of High Efficiency Rotary Vibrating Screen for Heavy Ground Calcium Carbonate:

Three Dimensional Vibro Screen Machine For Heavy Ground Calcium Carbonate 2

  The rotary vibro screening machine is made up of an upright motor as an excitation source. The upper and lower ends of the motor are equipped with an eccentric weight to convert the rotary motion of the motor into a horizontal, vertical, and inclined three-dimensional motion, and then transmit this motion to the screen surface. Adjusting the phase angle of the upper and lower ends can change the trajectory of the material on the screen surface.

Three Dimensional Vibro Screen Machine For Heavy Ground Calcium Carbonate 3

Three Dimensional Vibro Screen Machine For Heavy Ground Calcium Carbonate 4



Purpose of High Efficiency Rotary Vibrating Screen for Heavy Ground Calcium Carbonate:

Three Dimensional Vibro Screen Machine For Heavy Ground Calcium Carbonate 5Three Dimensional Vibro Screen Machine For Heavy Ground Calcium Carbonate 6Three Dimensional Vibro Screen Machine For Heavy Ground Calcium Carbonate 7

                 Grading                         Solid-liquid Separation                Remove the Impurity



Technical Parameters of High Efficiency Rotary Vibrating Screen for Heavy Ground Calcium Carbonate:

Model Power Screen Surface Diameter Effective Screening Area (m2) Layers of Screen
AY-400 0.18 KW 350mm 0.0962 1~3
AY-600 0.25 KW 550mm 0.2375 1~3
AY-800 0.55 KW 750mm 0.4416 1~3
AY-1000 0.75 KW 920mm 0.6644 1~3
AY-1200 1.1 KW 1120mm 0.9847 1~3
AY-1500 1.5 KW 1420mm 1.5829 1~3
AY-1800 2.2 KW 1720mm 2.3223 1~3
AY-2000 3.0 KW 1920mm 2.89 1~3



Application of High Efficiency Rotary Vibrating Screen for Heavy Ground Calcium Carbonate:

1. Abrasive And Ceramics: alumina, quartz sand, slurry, atomizing soil particles.
2. Chemical: resin sand, pigment, washing powder, micropowder, paint, soda ash, lemon powder, rubber and plastics.
3. Food: sugar, salt, soda, MSG (monosodium glutamate), milk powder, soy-bean milk, yeast, juice, soy sauce, vinegar, etc.
4. Paper Making: coating, coated slurry, black-and-white liquid, waste liquor, papermaking liquid, waste water recycle.
5. Metallurgy: titanium oxide, zinc oxide, electromagnetic materials, metal powder, welding rod powder, etc.
6. Pharmaceutical: TCM (traditional Chinese medicine) powder, TCM liquid, western medical powder, western medical liquid, TCM & western medical particles, etc.

7. Environment Protection: rubbish, excrement, waste oil, food effluent, waste water processing, etc.



Overall Dimensions of High Efficiency Rotary Vibrating Screen for Heavy Ground Calcium Carbonate:

Three Dimensional Vibro Screen Machine For Heavy Ground Calcium Carbonate 8

Model A B C D E F G I Single Layer Height Double Layer Height

Three

Layer

Height

AY-400 472 372 150 400 110 60 300 270 550 660 770
AY-600 570 450 200 600 120 80 380 340 730 865 1000
AY-800 690 570 200 800 130 100 550 340 730 865 1000
AY-1000 810 690 250 970 150 120 650 400 790 925 1060
AY-1200 970 850 250 1170 180 130 760 450 860 1025 1190
AY-1500 1180 1060 250 1470 200 140 950 480 985 1180 1370
AY-1800 1480 1360 350 1770 220 150 1110 520 1030 1220 1410
