|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Motion:||Three-dimensional Motion||Diameter:||600, 800, 1000, 1200, 1500, 1800, 2000mm Etc.|
|Screen Decks:||1~5 Decks (suggest 1~3 Decks)||Mesh Size:||Below 500 Mesh|
|Screen Material:||Stainless Steel, Polyurethane, Nylon Etc.||Mesh Cleaning System:||Bounce Balls, Ultrasonic System, Rotary Brush System Etc.|
|Screen Frame:||L Type, Adhesive Type, Ultrasonic Type, Flange Type Etc.||Application:||Grading, Solid-liquid Separation, Remove The Impurity|
Dolomite Vibro Screen Machine,
Powder Vibro Screen Machine,
Dolomite ultrasonic vibro sifter

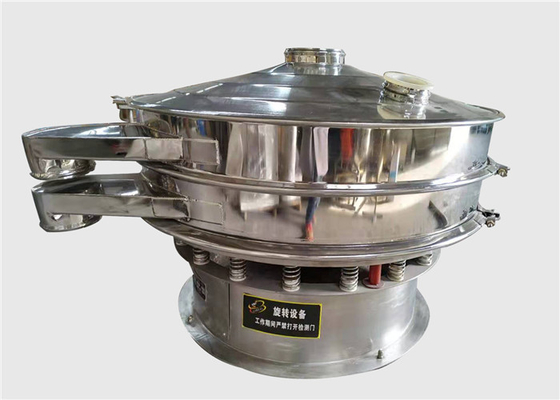

Dolomite Fine Powder Vibro Screen Machine Three D Rotary Vibrating Sieve
Introduction of High Accuracy Three-D Rotary Vibrating Sieve for Dolomite Fine Powder:
High Accuracy Three-D Rotary Vibrating Sieve for Dolomite Fine Powder is a high precision fine powder sieving machine. The fundamental principle of round separator is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.
Structure Diagram of High Accuracy Three-D Rotary Vibrating Sieve for Dolomite Fine Powder:
The rotary Vibrating Sieve is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends. Rotary vibrating screen can be produced in horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter also can be ranged from 400mm to 2000mm, with single or multiple screening decks, material can be total carbon steel, total stainless steel or material contact parts are stainless steel according to different product.
Features of High Accuracy Three-D Rotary Vibrating Sieve for Dolomite Fine Powder:
1. It is small in size, light in weight, convenient to move, and the direction of the discharge port can be adjusted arbitrarily. The coarse and fine materials are automatically discharged, which can be automated or manual.
2. High screening accuracy, high efficiency, any powder, grain, mucus can be used.
3. The screen is not blocked, the powder is not flying, the finest screening can reach 500 mesh (28 microns) and the finest filtration can reach 5 microns.
4. Unique grid design (female and child type), long-term use of the screen, convenient network change, only 3-5 minutes, easy to operate, easy to clean.
5. No mechanical action, easy maintenance, single or multi-layer use, the contact with the material is made of stainless steel (except for medical use).
Purpose of High Accuracy Three-D Rotary Vibrating Sieve for Dolomite Fine Powder:
Grading Solid-liquid Separation Remove the Impurity
Working Principle of High Accuracy Three-D Rotary Vibrating Sieve for Dolomite Fine Powder:
The rotary vibro screening machine adopts the latest vertical vibrating motor, which produces a horizontal, vertical and oblique vibration of three dimensional, and then directly passes the vibration to screen surface.
By changing the angle of the upper and lower eccentric block of the motor, it produces different exciting force, and the direction in which the material is running is changed.
Some Information About High Accuracy Three-D Rotary Vibrating Sieve for Dolomite Fine Powder:
|Shape||circular or round shape|
|Layers of Screen||1~5 layers of screen with 2~6 outlets|
|Mesh Size||above 325 mesh|
|Screen Frame||adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external) etc.|
|Self-cleaning System||bouncing balls (with ball decks), ultrasonic de-blinding system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm|
|Material||stainless steel 304, 316L, carbon steel, plastic materials etc.|
|Surface Treatment||Paint, sandblast and polish etc.|
|Function||solid-separation, grading, remove the impurity etc.|
|Movement||three dimensional vibration motion|
|Damping Spring||carbon steel spring, stainless steel spring, air spring, rubber spring etc.|
|Motor||one set of vibrating motor, verticle arrangement|
|Motor Brand||OLI-WOLONG, Italvibras, AAREAL Made etc.|
|APO Safety System||Automatic Power Off Safety System is integrated in the motor|
mesh screen, perforated plate, bounce balls, clamps, springs,
sealing rubber strip etc.
|Optional Design||discharge gate, magnetic guard, quick release clamp, glass viewing port, collecting tray etc.|
Technical Parameters of High Accuracy Three-D Rotary Vibrating Sieve for Dolomite Fine Powder:
|Model||Power||Screen Surface Diameter||Effective Screening Area (m2)||Layers of Screen|
Overall Dimensions of High Accuracy Three-D Rotary Vibrating Sieve for Dolomite Fine Powder:
|Model||A||B||C||D||E||F||G||I||Single Layer Height||Double Layer Height||
Application of High Accuracy Three-D Rotary Vibrating Sieve for Dolomite Fine Powder:
1. Food industry: sugar powder, starch, salt, rice flour, milk powder, soya bean milk, egg powder, soy sauce, fruit juice, etc.
2. Chemical industry: resin, coating, industrial medicine, cosmetics, paint, Chinese medicine powder, etc.
3. Metal, metallurgical mining: aluminum, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic material, grinding powder, refractory, kaolin, lime, alumina, heavy calcium carbonate, quartz sand and so on.
4. Public nuisance treatment: waste oil, waste water, dyeing and finishing wastewater, auxiliaries, activated carbon and so on.
