|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Movement:||Three-dimensional Motion||Diameter:||600, 800, 1000, 1200, 1500, 1800, 2000mm Etc.|
|Layers Of Screen:||1~5 Layers (suggest 1~3 Layers)||Screen Holder:||L Type, Adhesive Type, Ultrasonic Type, Flange Type Etc.|
|Mesh Cleaning System:||Rubber Balls, Ultrasonic System, Rotary Brush System Etc.||Motor:||Verticle Vibrating Motor, Excitation Force And Amplitude Adjustable|
|Screen Material:||Stainless Steel, Polyurethane, Nylon Etc.||Application:||Grading, Solid-liquid Separation, Remove The Impurity|
Mung vibro sifter machine,
Bean vibro separator machine,
Mung single deck vibrating screen

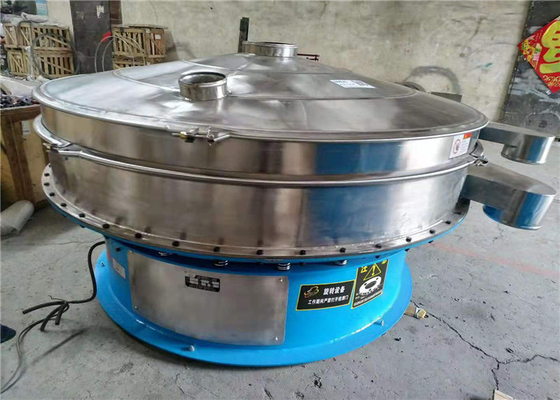

Introduction of Stainless Steel High Output Rotary Vibro Sieve Screener for Mung Bean:
Stainless Steel High Output Rotary Vibro Sieve Screener for Mung Bean is a high precision fine powder sieving machine. The fundamental principle of round separator is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.
Structure Diagram of Stainless Steel High Output Rotary Vibro Sieve Screener for Mung Bean:

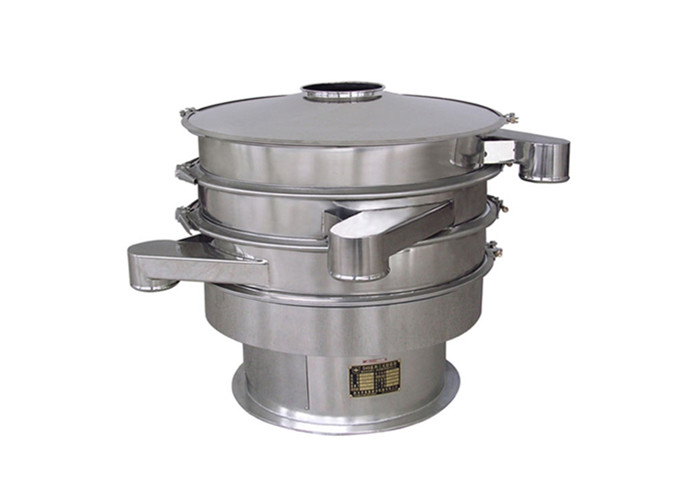

The rotary Vibrating Sieve is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends. Rotary vibrating screen can be produced in horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter also can be ranged from 400mm to 2000mm, with single or multiple screening decks, material can be total carbon steel, total stainless steel or material contact parts are stainless steel according to different product.
Purpose of Stainless Steel High Output Rotary Vibro Sieve Screener for Mung Bean:
Grading Solid-liquid Separation Remove the Impurity
Working Principle of Stainless Steel High Output Rotary Vibro Sieve Screener for Mung Bean:
It's vertical motor,which is installed eccentric hammers on the top and bottom,is regarded as a vibratory source.The eccentric harmmer change rotation into horizontal,vertical and inclined movement, and then pass the movement to the sieving surface.Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.
Features of Stainless Steel High Output Rotary Vibro Sieve Screener for Mung Bean:
1. High efficiency, refined design and durability. Any powder and mucus can be sieved.
2. Easy to replace the screen, simple operation and convenience cleaning or washing.
3. The mesh is not blocked. No powder flying. And it can be sieved to 500 mesh or 0.028mm.
4. Impurities and coarse materials are automatically discharged and can be continuously operated.
5. Unique screen flame design. The service life of screen is long. Only 3~5 minutes to replace the screen.
6. Small size, not occupying space, and easy to move.
7. The screen of the machine can reach up to 5 layers, but 3 layers are recommended.
Some Information About Stainless Steel High Output Rotary Vibro Sieve Screener for Mung Bean:
|Shape||circular or round shape|
|Layers of Screen||1~5 layers of screen with 2~6 outlets|
|Mesh Size||above 325 mesh|
|Screen Frame||adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external) etc.|
|Self-cleaning System||bouncing balls (with ball decks), ultrasonic de-blinding system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm|
|Material||stainless steel 304, 316L, carbon steel, plastic materials etc.|
|Surface Treatment||Paint, sandblast and polish etc.|
|Function||solid-separation, grading, remove the impurity etc.|
|Movement||three dimensional vibration motion|
|Damping Spring||carbon steel spring, stainless steel spring, air spring, rubber spring etc.|
|Motor||one set of vibrating motor, verticle arrangement|
|Motor Brand||OLI-WOLONG, Italvibras, AAREAL Made etc.|
|APO Safety System||Automatic Power Off Safety System is integrated in the motor|
mesh screen, perforated plate, bounce balls, clamps, springs,
sealing rubber strip etc.
|Optional Design||discharge gate, magnetic guard, quick release clamp, glass viewing port, collecting tray etc.|
Technical Parameters of Stainless Steel High Output Rotary Vibro Sieve Screener for Mung Bean:
|Model||Power||Screen Surface Diameter||Effective Screening Area (m2)||Layers of Screen|
Overall Dimensions of Stainless Steel High Output Rotary Vibro Sieve Screener for Mung Bean:
|Model||A||B||C||D||E||F||G||I||Single Layer Height||Double Layer Height||
Application of Stainless Steel High Output Rotary Vibro Sieve Screener for Mung Bean:
Food industry: Sugar powder, starch, salt, rice powder, milk powder, soy milk, egg powder, soy sauce, fruit juice, tea, beverage, dairy, candy, small food, frozen food, seasoning, protein, food additives, etc
Chemical industry: Resins, coatings, industrial chemicals, cosmetics, paints, etc.
Metallurgical powder industry: Aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic material, abrasive powder, refractory material, kaolin, lime, alumina, heavy calcium carbonate, quartz sand, etc.
Other industry: Waste oil, wastewater, dyeing and finishing wastewater, paper making, additives, activated carbon, Chinese medicine powder, granule pills, pellets, etc.
