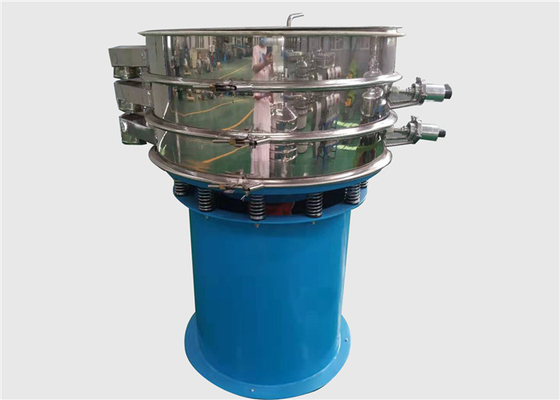

Ultrasonic Rotary Vibro Screen Machine Vibratory Separator For Powdered Alloy Powder

Ultrasonic Rotary Vibro Screen Machine Vibratory Separator For Powdered Alloy Powder

  • Ultrasonic Rotary Vibro Screen Machine Vibratory Separator For Powdered Alloy Powder
  • Ultrasonic Rotary Vibro Screen Machine Vibratory Separator For Powdered Alloy Powder
Ultrasonic Rotary Vibro Screen Machine Vibratory Separator For Powdered Alloy Powder
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Application: Grading, Solid-liquid Separation, Remove The Impurity Diameter: 600, 800, 1000, 1200, 1500, 1800, 2000mm Etc.
Mesh Cleaning System: Rubber Balls, Ultrasonic System, Rotary Brush System Etc. Layers Of Screen: 1~5 Layers (suggest 1~3 Layers)
Screen Material: Stainless Steel, Polyurethane, Nylon Etc. Motor: Verticle Vibrating Motor, Excitation Force And Amplitude Adjustable
Voltage: Three Phase, 380V, 50HZ (customizable) Power: 0.18KW ~ 2.2KW (sufficient Power)
High Light:

Powdered Vibro Screen Machine

,

2000mm vibro sieve separator

,

Ultrasonic Vibro Screen Machine

Ultrasonic Rotary Vibro Screen Machine Vibratory Separator For Powdered Alloy Powder



Introduction of Ultrasonic Rotary Vibrating Screen Machine for Powdered Alloy Powder:

Ultrasonic Rotary Vibrating Screen Machine for Powdered Alloy Powder is a high precision fine powder sieving machine. The fundamental principle of round separator is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.



Structure Diagram of Ultrasonic Rotary Vibrating Screen Machine for Powdered Alloy Powder:

Ultrasonic Rotary Vibro Screen Machine Vibratory Separator For Powdered Alloy Powder 0



Features​ of Ultrasonic Rotary Vibrating Screen Machine for Powdered Alloy Powder:

1. High efficiency, refined design and durability. Any powder and mucus can be sieved.
2. Easy to replace the screen, simple operation and convenience cleaning or washing.
3. The mesh is not blocked. No powder flying. And it can be sieved to 500 mesh or 0.028mm.
4. Impurities and coarse materials are automatically discharged and can be continuously operated.
5. Unique screen flame design. The service life of screen is long. Only 3~5 minutes to replace the screen.
6. Small size, not occupying space, and easy to move.

7. The screen of the machine can reach up to 5 layers, but 3 layers are recommended.



Purpose of Ultrasonic Rotary Vibrating Screen Machine for Powdered Alloy Powder:

Ultrasonic Rotary Vibro Screen Machine Vibratory Separator For Powdered Alloy Powder 1Ultrasonic Rotary Vibro Screen Machine Vibratory Separator For Powdered Alloy Powder 2Ultrasonic Rotary Vibro Screen Machine Vibratory Separator For Powdered Alloy Powder 3

                Grading                           Solid-liquid Separation              Remove the Impurity



Working Principle of Ultrasonic Rotary Vibrating Screen Machine for Powdered Alloy Powder:

Ultrasonic Rotary Vibro Screen Machine Vibratory Separator For Powdered Alloy Powder 4

1. The three-dimensional vibrating screen is made up of an upright motor as an excitation source. The upper and lower ends of the motor are equipped with an eccentric weight to convert the rotary motion of the motor into a horizontal, vertical, and inclined three-dimensional motion, and then transmit this motion to The sieve surface makes the material expand and involute on the screen surface, so the series of vibrating screens is called a vibrating screen.



2. The vibrating screen has the advantages of long track of material running and high utilization rate of screen surface. Adjusting the phase angle of the upper and lower ends of the hammer can change the movement track of the material on the screen surface. The material can be finely sieved and probability sieved.



3. After the vibrating screen is started, the power device is the eccentric block with different phases at the upper and lower ends of the vibrating motor. Due to the high-speed placement, a compound inertial force is generated, which forces the vibrating body of the screen to perform the reciprocating motion, and the screen frame is vibrating.



4. Under the action of the continuous reciprocating motion, the ground is driven to drive the screen surface for periodic vibration, so that the material on the screen surface is directionalally moved together with the screen box, during which the material smaller than the sieve surface diameter falls through the sieve hole to the lower layer, to become a sieve under the material, the material larger than the sieve aperture is discharged from the discharge opening after continuous jumping movement, and finally the screening work is completed.



5. The trajectory of the vibrating body of the vibrating screen is a complex spatial three-dimensional curve. The projection of the curve on the horizontal plane is circular, and the projections on the two vertical planes are two identical ellipse. In practical application, by adjusting the relative phase of the eccentric block at the upper and lower ends of the vibration motor, the movement trajectory of the material on the sieve surface can be changed, thereby achieving different screening operations.



Ultrasonic Rotary Vibro Screen Machine Vibratory Separator For Powdered Alloy Powder 5

Ultrasonic Rotary Vibro Screen Machine Vibratory Separator For Powdered Alloy Powder 6



Some Information About Ultrasonic Rotary Vibrating Screen Machine for Powdered Alloy Powder:

Model AY
Shape circular or round shape
Layers of Screen 1~5 layers of screen with 2~6 outlets
Mesh Size above 325 mesh
Screen Frame adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external) etc.
Self-cleaning System bouncing balls (with ball decks), ultrasonic de-blinding system, rotary brush system etc.
Diameter 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm
Material stainless steel 304, 316L, carbon steel, plastic materials etc.
Surface Treatment Paint, sandblast and polish etc.
Function solid-separation, grading, remove the impurity etc.
Movement three dimensional vibration motion
Damping Spring carbon steel spring, stainless steel spring, air spring, rubber spring etc.
Motor one set of vibrating motor, verticle arrangement
Motor Brand OLI-WOLONG, Italvibras, AAREAL Made etc.
APO Safety System Automatic Power Off Safety System is integrated in the motor
Quick-wear Parts

mesh screen, perforated plate, bounce balls, clamps, springs,

sealing rubber strip etc.

Optional Design discharge gate, magnetic guard, quick release clamp, glass viewing port etc.



Overall Dimensions of Ultrasonic Rotary Vibrating Screen Machine for Powdered Alloy Powder:

Ultrasonic Rotary Vibro Screen Machine Vibratory Separator For Powdered Alloy Powder 7

Model A B C D E F G I Single Layer Height Double Layer Height

Three

Layer

Height

AY-400 472 372 150 400 110 60 300 270 550 660 770
AY-600 570 450 200 600 120 80 380 340 730 865 1000
AY-800 690 570 200 800 130 100 550 340 730 865 1000
AY-1000 810 690 250 970 150 120 650 400 790 925 1060
AY-1200 970 850 250 1170 180 130 760 450 860 1025 1190
AY-1500 1180 1060 250 1470 200 140 950 480 985 1180 1370
AY-1800 1480 1360 350 1770 220 150 1110 520 1030 1220 1410



Technical Parameters of Ultrasonic Rotary Vibrating Screen Machine for Powdered Alloy Powder:

Ultrasonic Rotary Vibro Screen Machine Vibratory Separator For Powdered Alloy Powder 8

Model Power Screen Surface Diameter Effective Screening Area (m2) Layers of Screen
AY-400 0.18 KW 350mm 0.0962 1~3
AY-600 0.25 KW 550mm 0.2375 1~3
AY-800 0.55 KW 750mm 0.4416 1~3
AY-1000 0.75 KW 920mm 0.6644 1~3
AY-1200 1.1 KW 1120mm 0.9847 1~3
AY-1500 1.5 KW 1420mm 1.5829 1~3
AY-1800 2.2 KW 1720mm 2.3223 1~3
AY-2000 3.0 KW 1920mm 2.89 1~3



Application of Ultrasonic Rotary Vibrating Screen Machine for Powdered Alloy Powder:

Food industry: Sugar powder, starch, salt, rice powder, milk powder, soy milk, egg powder, soy sauce, fruit juice, tea, beverage, dairy, candy, small food, frozen food, seasoning, protein, food additives, etc
Chemical industry: Resins, coatings, industrial chemicals, cosmetics, paints, etc.
Metallurgical powder industry: Aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic material, abrasive powder, refractory material, kaolin, lime, alumina, heavy calcium carbonate, quartz sand, etc.
Other industry: Waste oil, wastewater, dyeing and finishing wastewater, paper making, additives, activated carbon, Chinese medicine powder, granule pills, pellets, etc.



Ultrasonic Rotary Vibro Screen Machine Vibratory Separator For Powdered Alloy Powder 9
