| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AY |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Model: | AY-600, 800, 1000, 1200, 1500, 1800, 2000 | Function: | Grading, Solid-liquid Separation, Impurity Removal Etc. |
|---|---|---|---|
| Application: | Milk Powder, Lactose, Vitamin, Starch Etc. | Feature: | Small Size, Multi-layer, High Screening Accuracy Etc. |
| Screen Material: | Stainless Steel, Polyurethane, Nylon Etc. | Material: | Stainless Steel 304, 316L, PVC, Carbon Steel Etc. |
| Mesh Cleaning System: | Rubber Balls, Ultrasonic System, Rotary Brush System Etc. | Motor: | Verticle Vibrating Motor, Excitation Force And Amplitude Adjustable |
| High Light: | vibrating sieve separator,vibratory screen separator |
||

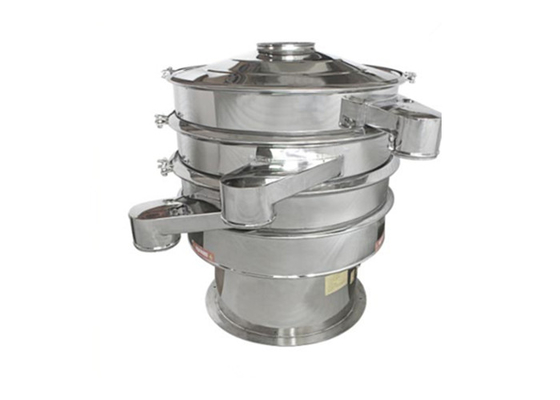

Food Grade Circular Vibrating Screen Separator Multi Layer Round Separator
Introduction of Food Grade High Precision Rotary Vibrating Sieve Screener for Whole Milk Powder:
Food Grade High Precision Rotary Vibrating Sieve Screener for Whole Milk Powder is a high-precision fine powder screening machine with low noise and high efficiency. It takes 3-5 minutes to change the screen quickly. It is fully enclosed and suitable for screening and filtering of particles, powder and mucilage.
Structure Diagram of High Screening Accuracy Rotary Vibratory Separator for Iron Oxide Red:
Working Principle of Food Grade High Precision Rotary Vibrating Sieve Screener for Whole Milk Powder:
Our rotary vibrating screen is made up of an upright motor as an excitation source. The upper and lower ends of the motor are equipped with an eccentric weight to convert the rotary motion of the motor into a horizontal, vertical, and inclined three-dimensional motion, and then transmit this motion to the screen surface. Adjusting the phase angle of the upper and lower ends can change the trajectory of the material on the screen surface.
The general characteristics of the vibrating motor adjustment are described below:
Some Information About Food Grade High Precision Rotary Vibrating Sieve Screener for Whole Milk Powder:
| Model | AY |
| Shape | circular or round shape |
| Layers of Screen | 1~5 layers of screen with 2~6 outlets |
| Mesh Size | above 325 mesh |
| Screen Frame | adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external) etc. |
| Self-cleaning System | bouncing balls (with ball decks), ultrasonic de-blinding system, rotary brush system etc. |
| Diameter | 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm |
| Material | stainless steel 304, 316L, carbon steel, plastic materials etc. |
| Surface Treatment | Paint, sandblast and polish etc. |
| Function | solid-separation, grading, remove the impurity etc. |
| Movement | three dimensional vibration motion |
| Damping Spring | carbon steel spring, stainless steel spring, air spring, rubber spring etc. |
| Motor | one set of vibrating motor, verticle arrangement |
| Motor Brand | OLI-WOLONG, Italvibras, AAREAL Made etc. |
| APO Safety System | Automatic Power Off Safety System is integrated in the motor |
| Quick-wear Parts |
mesh screen, perforated plate, bounce balls, clamps, springs, sealing rubber strip etc. |
| Optional Design | discharge gate, magnetic guard, quick release clamp, glass viewing port etc. |
Purpose of Food Grade High Precision Rotary Vibrating Sieve Screener for Whole Milk Powder:
1. Grading
Each model of circular vibrating sifter can precisely and continuously screen and separate screened products, the multi-layer type can sift and separate five groups of different particles at a time. It is suitable for dry materials.
2. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.
3. Remove the impurity
The rotary vibro sieve can quickly separate a few oversize or undersized particles from a quantity of materials.
Features of Food Grade High Precision Rotary Vibrating Sieve Screener for Whole Milk Powder:
1. Anti-binding devices - prevent screen clog without creating dust clouds during operations.
2. Automatic discharge of separated materials - continuous and uninterrupted production.
3. Simple and functional design - higher capacity, easy use, less maintenance, lower noise, and require minimal floor space.
4. Lower energy consumption - reduce cost.
5. Light weight - easily movable with pellet jack or forklift.
6. Highly durable - designed for long hours of operation with minimal service required.
7. Stainless Steel - all contact parts in stainless steel 304. Full or partial stainless steel 316L upgrades available.
8. Wide range of sizes and modifications available to suit all types of powder and viscous liquids.
9. Up to 5 screens per unit - allowing multiple separations with just one unit for cost effective operation.
10. Quick change design - allows screen change in less than 5 minutes.
Overall Dimensions of Food Grade High Precision Rotary Vibrating Sieve Screener for Whole Milk Powder:
| Model | A | B | C | D | E | F | G | I | Single Layer Height | Double Layer Height |
Three Layer Height |
| AY-400 | 472 | 372 | 150 | 400 | 110 | 60 | 300 | 270 | 550 | 660 | 770 |
| AY-600 | 570 | 450 | 200 | 600 | 120 | 80 | 380 | 340 | 730 | 865 | 1000 |
| AY-800 | 690 | 570 | 200 | 800 | 130 | 100 | 550 | 340 | 730 | 865 | 1000 |
| AY-1000 | 810 | 690 | 250 | 970 | 150 | 120 | 650 | 400 | 790 | 925 | 1060 |
| AY-1200 | 970 | 850 | 250 | 1170 | 180 | 130 | 760 | 450 | 860 | 1025 | 1190 |
| AY-1500 | 1180 | 1060 | 250 | 1470 | 200 | 140 | 950 | 480 | 985 | 1180 | 1370 |
| AY-1800 | 1480 | 1360 | 350 | 1770 | 220 | 150 | 1110 | 520 | 1030 | 1220 | 1410 |
Technical Parameters of Food Grade High Precision Rotary Vibrating Sieve Screener for Whole Milk Powder:
| Model | Power | Screen Surface Diameter | Effective Screening Area (m2) | Layers of Screen |
| AY-400 | 0.18 KW | 350mm | 0.0962 | 1~3 |
| AY-600 | 0.25 KW | 550mm | 0.2375 | 1~3 |
| AY-800 | 0.55 KW | 750mm | 0.4416 | 1~3 |
| AY-1000 | 0.75 KW | 920mm | 0.6644 | 1~3 |
| AY-1200 | 1.1 KW | 1120mm | 0.9847 | 1~3 |
| AY-1500 | 1.5 KW | 1420mm | 1.5829 | 1~3 |
| AY-1800 | 2.2 KW | 1720mm | 2.3223 | 1~3 |
| AY-2000 | 3.0 KW | 1920mm | 2.89 | 1~3 |
Application of Food Grade High Precision Rotary Vibrating Sieve Screener for Whole Milk Powder:
Metal and Mining Industry: alloy powder, molybdenum powder, stainless steel powder, tungsten powder, aluminum powder, nickel powder, cobalt powder, alumina, glass beads, graphite, kaolin, mineral salts etc.
Abrasive and Coating: aluminum silver paste, powder coating, iron oxide red, laser powder, pearlescent pigment, paper making coating, organic pigment carbon powder etc.
Electronic Materials: fluorescent powder, artificial black lead etc.
Chemical Industry: PVC, citric acid, electrode materials, resin fertilizer, urea-formaldehyde molding powder, cosmetics, oil paint etc.
Pharmaceutical Industry: lactose, glucose, vitamins, traditional chinese medicine powder, preparations etc.
Food Industry: wheat bread, bread flour, sugar powder, milk powder, starch, juice, vegetable juice, monosodium glutamate, spices, yeast, seasoning, tofu, ice cream, chocolate powder, potato powder etc.
Pollution Treatment: waste oil and papermaking effluent, effluent from brewery waste water, dyeing and finishing wastewater, activated carbon etc.
