|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Moving Trajectory:||Three-dimensional Motion||Purpose:||Grading, Solid-liquid Separation, Impurity Removal Etc.|
|Diameter:||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm Etc.||Mesh Cleaning System:||Rubber Balls, Ultrasonic System, Rotary Brush System Etc.|
|Screen Material:||Stainless Steel, Polyurethane, Nylon Etc.||Characteristics:||High Screening Accuracy, Multi-layer Sieving Available, Small Size Etc.|
|Material:||Carbon Steel, Stainless Steel 304, 316L, PVC Etc.||Application:||Oil Paint, Glass Beads, Aluminium Oxide, Flour Etc.|
Gyro Vibrating Sieve Sifters,
Electrode Vibrating Sieve Sifters,
Electrode vibro sifter machine

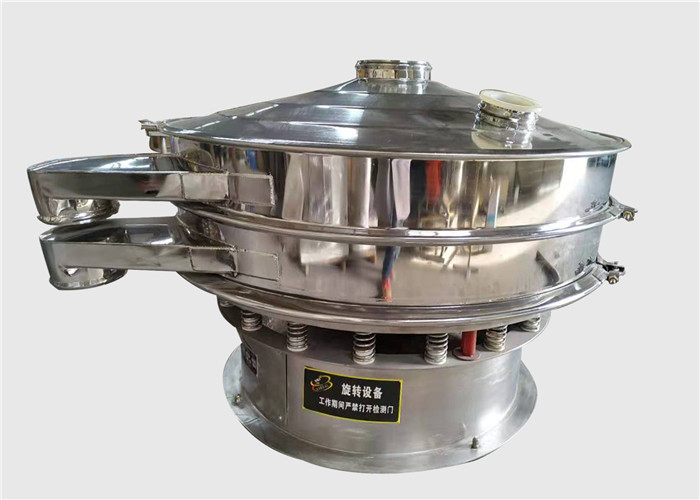

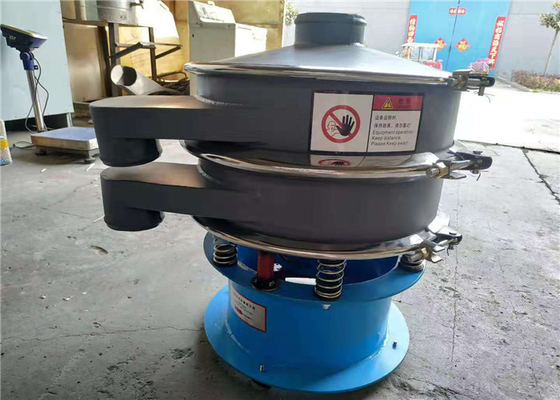

High Screening Accuracy Gyro Vibrating Sieve Sifters For Electrode Material
Introduction of Gyro Vibrating Sieve Sifters for Electrode Material with High Screening Accuracy:
Gyro Vibrating Sieve Sifters for Electrode Material with High Screening Accuracy is designed for general separation. It is suitable for both wet and dry materials for grading, classification, de-dusting, and quality control. The multi-purpose model is essential to improve quality and safety of production materials, increase productivity, and reduce cost and labour.
This kind of screening machine is also known as the rotary vibrating screen, circular vibrating screen, vibrating separator, vibro screen, vibro sifter, vibro sieve, vibro shifter, circular vibrating sieve, rotary vibrating sieve, vibrating sifter etc.
Some Information About Gyro Vibrating Sieve Sifters for Electrode Material with High Screening Accuracy:
|Shape||circular or round shape|
|Layers of Screen||1~5 layers of screen with 2~6 outlets|
|Mesh Size||above 325 mesh|
|Screen Frame||adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external) etc.|
|Self-cleaning System||bouncing balls (with ball decks), ultrasonic de-blinding system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm|
|Material||stainless steel 304, 316L, carbon steel, plastic materials etc.|
|Surface Treatment||Paint, sandblast and polish etc.|
|Function||solid-separation, grading, remove the impurity etc.|
|Movement||three dimensional vibration motion|
|Damping Spring||carbon steel spring, stainless steel spring, air spring, rubber spring etc.|
|Motor||one set of vibrating motor, verticle arrangement|
|Motor Brand||OLI-WOLONG, Italvibras, AAREAL Made etc.|
|APO Safety System||Automatic Power Off Safety System is integrated in the motor|
mesh screen, perforated plate, bounce balls, clamps, springs,
sealing rubber strip etc.
|Optional Design||discharge gate, magnetic guard, quick release clamp, glass viewing port etc.|
Structure Diagram of Gyro Vibrating Sieve Sifters for Electrode Material with High Screening Accuracy:
Purpose of Gyro Vibrating Sieve Sifters for Electrode Material with High Screening Accuracy:
1. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.
Each model of circular vibrating sifter can precisely and continuously screen and separate screened products, the multi-layer type can sift and separate five groups of different particles at a time. It is suitable for dry materials.
3. Remove the impurity
The rotary vibro sieve can quickly separate a few oversize or undersized particles from a quantity of materials.
Features of Gyro Vibrating Sieve Sifters for Electrode Material with High Screening Accuracy:
1. Easy to replace the screen.
2. Totally enclosed structure, never jam, no powder flying, the powder size can be separated between 500 mesh and 0.028 mm.
3. High efficiency, reasonable design, suitable for any powders and mucilage.
4. Small volume, move easily.
5. Discharge the impurity and coarse automatically and works continuously.
6. The highest layers of the screen can be reached 5 layers. But 3 layers are suggested.
7. Unique screen frame design, wearable screen mesh, just 3-5min needed to replace the screen mesh.
Working Principle of Gyro Vibrating Sieve Sifters for Electrode Material with High Screening Accuracy:
The vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. The direction of the eccentric weights can change its rotational mode,rotation of the upper weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery,while the lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The trajectories of materials on the screen can be changed by adjusting the phase angle of upper and lower weights.
The general characteristics of the vibrating motor adjustment are described below:
Overall Dimensions of Gyro Vibrating Sieve Sifters for Electrode Material with High Screening Accuracy:
|Model||A||B||C||D||E||F||G||I||Single Layer Height||Double Layer Height||
Application of Gyro Vibrating Sieve Sifters for Electrode Material with High Screening Accuracy:
1. Pharmacy profession: Chinese herbal medicine, western medicine powder, liquid, particle, etc.
2. Food industry: Sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup, etc.
3. Chemical industry: Rubber, PVC powder, resin, pigment, industrial medicine, cosmetic, coatings, etc.
4. Ceramic and abrasive: Alumina, quartz sand, mud etc.
5. Metal, metallurgy and mining industry: Aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, manganese dioxide, electrolysis copper powder, electromagnetism materials, grinding powder, fire-resistant material, lime, alumina, heavy calcium carbonate, etc.
6. Paper making: Paper pulp, paint, wasted water recycling.
7. Social pollution disposed: Disposed oil, disposed water, disposed dye water, assistant, active carbon.
Technical Parameters of Gyro Vibrating Sieve Sifters for Electrode Material with High Screening Accuracy:
|Model||Power||Screen Surface Diameter||Effective Screening Area (m2)||Layers of Screen|
