| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AY |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Purpose: | Grading, Solid-liquid Separation, Impurity Removal Etc. | Moving Trajectory: | Three-dimensional Motion |
|---|---|---|---|
| Material: | Carbon Steel, Stainless Steel 304, 316L, PVC Etc. | Mesh Cleaning System: | Rubber Balls, Ultrasonic System, Rotary Brush System Etc. |
| Layers Of Screen: | 1~5 Screen Decks (suggest 1~3 Decks) | Screen: | Stainless Steel, Polyurethane Sieve Plate, Nylon Etc. |
| Characteristics: | High Screening Accuracy, Multi-layer Sieving Available, Small Size Etc. | Application: | Glass Beads, Aluminium Oxide, Cobalt Powder Etc. |
| High Light: | vibrating sieve separator,vibratory screen separator |
||

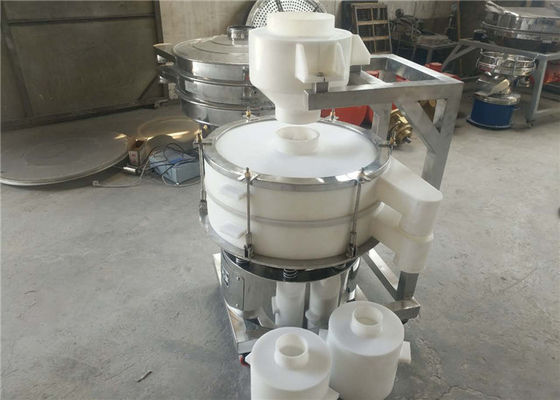

Mineral Salt Vibrating Screen Machine Anti Corrosive Screen Shaker Separator

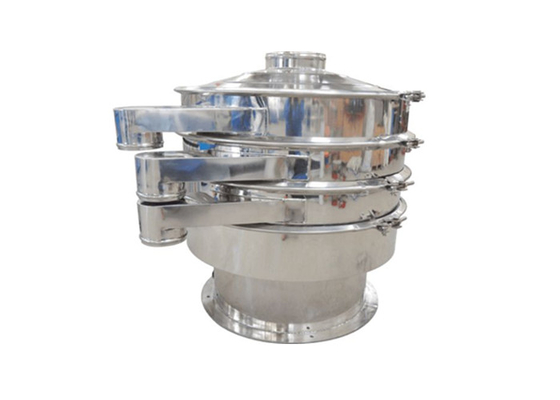

Introduction of Stainless Steel Anti-corrosive Rotary Vibrating Screen Machine for Mineral Salt:
Stainless Steel Anti-corrosive Rotary Vibrating Screen Machine for Mineral Salt does three-dimensional motion. It can be used in food, medicine, chemical industry, metals, mining, abrasive, ceramics, pigments, coatings, electronic materials, pollution treatment and other industries for wet and dry screening, sieving, grading, classification, filtering, cleaning, de-dusting, impurity removal, lump breaking, quality control and so on.
It is also known as the rotary vibrating screen, circular vibrating screen, vibrating separator, vibro screen, vibro sifter, vibro sieve, vibro shifter, circular vibrating sieve, rotary vibrating sieve, vibrating sifter etc. This is a kind of classic vibrating screening machine for most materials general use.
Purpose of Stainless Steel Anti-corrosive Rotary Vibrating Screen Machine for Mineral Salt:
1. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.
2. Grading
Each model of circular vibrating sifter can precisely and continuously screen and separate screened products, the multi-layer type can sift and separate five groups of different particles at a time. It is suitable for dry materials.
3. Remove the impurity
The rotary vibro sieve can quickly separate a few oversize or undersized particles from a quantity of materials.
Some Information About Stainless Steel Anti-corrosive Rotary Vibrating Screen Machine for Mineral Salt:
| Model | AY |
| Shape | circular or round shape |
| Layers of Screen | 1~5 layers of screen with 2~6 outlets |
| Mesh Size | above 325 mesh |
| Screen Frame | adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external) etc. |
| Self-cleaning System | bouncing balls (with ball decks), ultrasonic de-blinding system, rotary brush system etc. |
| Diameter | 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm |
| Material | stainless steel 304, 316L, carbon steel, plastic materials etc. |
| Surface Treatment | Paint, sandblast and polish etc. |
| Function | solid-separation, grading, remove the impurity etc. |
| Movement | three dimensional vibration motion |
| Damping Spring | carbon steel spring, stainless steel spring, air spring, rubber spring etc. |
| Motor | one set of vibrating motor, verticle arrangement |
| Motor Brand | OLI-WOLONG, Italvibras, AAREAL Made etc. |
| APO Safety System | Automatic Power Off Safety System is integrated in the motor |
| Quick-wear Parts |
mesh screen, perforated plate, bounce balls, clamps, springs, sealing rubber strip etc. |
| Optional Design | discharge gate, magnetic guard, quick release clamp, glass viewing port etc. |
Structure Diagram of Stainless Steel Anti-corrosive Rotary Vibrating Screen Machine for Mineral Salt:
Characteristics of Stainless Steel Anti-corrosive Rotary Vibrating Screen Machine for Mineral Salt:
1. Rotary vibrating screen with high precision and high efficiency screening ablity and applied to all kinds of food/ chemical powder, granules.
2. 304 and 316 stainless steel material, make sure the quality of raw material.
3. New type of frame structure, long service life, only 3-5 minutes to replace the screen.
4. Fully automated, continuous 7 days*24 hours operation.
5. Fully closed structure, the powder don't float in the sky, the liquid don't leak, no mesh jams.
Working Principle of Stainless Steel Anti-corrosive Rotary Vibrating Screen Machine for Mineral Salt:
The vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. The direction of the eccentric weights can change its rotational mode,rotation of the upper weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery,while the lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The trajectories of materials on the screen can be changed by adjusting the phase angle of upper and lower weights.
The general characteristics of the vibrating motor adjustment are described below:
Technical Parameters of Stainless Steel Anti-corrosive Rotary Vibrating Screen Machine for Mineral Salt:
| Model | Power | Screen Surface Diameter | Effective Screening Area (m2) | Layers of Screen |
| AY-400 | 0.18 KW | 350mm | 0.0962 | 1~3 |
| AY-600 | 0.25 KW | 550mm | 0.2375 | 1~3 |
| AY-800 | 0.55 KW | 750mm | 0.4416 | 1~3 |
| AY-1000 | 0.75 KW | 920mm | 0.6644 | 1~3 |
| AY-1200 | 1.1 KW | 1120mm | 0.9847 | 1~3 |
| AY-1500 | 1.5 KW | 1420mm | 1.5829 | 1~3 |
| AY-1800 | 2.2 KW | 1720mm | 2.3223 | 1~3 |
| AY-2000 | 3.0 KW | 1920mm | 2.89 | 1~3 |
Overall Dimensions of Stainless Steel Anti-corrosive Rotary Vibrating Screen Machine for Mineral Salt:
| Model | A | B | C | D | E | F | G | I | Single Layer Height | Double Layer Height |
Three Layer Height |
| AY-400 | 472 | 372 | 150 | 400 | 110 | 60 | 300 | 270 | 550 | 660 | 770 |
| AY-600 | 570 | 450 | 200 | 600 | 120 | 80 | 380 | 340 | 730 | 865 | 1000 |
| AY-800 | 690 | 570 | 200 | 800 | 130 | 100 | 550 | 340 | 730 | 865 | 1000 |
| AY-1000 | 810 | 690 | 250 | 970 | 150 | 120 | 650 | 400 | 790 | 925 | 1060 |
| AY-1200 | 970 | 850 | 250 | 1170 | 180 | 130 | 760 | 450 | 860 | 1025 | 1190 |
| AY-1500 | 1180 | 1060 | 250 | 1470 | 200 | 140 | 950 | 480 | 985 | 1180 | 1370 |
| AY-1800 | 1480 | 1360 | 350 | 1770 | 220 | 150 | 1110 | 520 | 1030 | 1220 | 1410 |
Application of Stainless Steel Anti-corrosive Rotary Vibrating Screen Machine for Mineral Salt:
1. Ceramic and abrasive: Alumina, quartz sand, mud etc.
2. Metal, metallurgy and mining industry: Aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, manganese dioxide, electrolysis copper powder, electromagnetism materials, grinding powder, fire-resistant material, lime, alumina, heavy calcium carbonate, etc.
3. Food industry: Sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup, etc.
4. Chemical industry: Rubber, PVC powder, resin, pigment, industrial medicine, cosmetic, coatings, etc.
5. Paper making: Paper pulp, paint, wasted water recycling.
6. Social pollution disposed: Disposed oil, disposed water, disposed dye water, assistant, active carbon.
7. Pharmacy profession: Chinese herbal medicine, western medicine powder, liquid, particle, etc.
