| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AY |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Moving Trajectory: | Three-dimensional Motion | Layers Of Screen: | 1~5 Layers Of Screen (suggest 1~3 Decks) |
|---|---|---|---|
| Screen: | Stainless Steel, Polyurethane Sieve Plate, Nylon Etc. | Quick-wear Parts: | Screen, Sealing Rubber Strip, Bounce Balls, Springs, Clamps Etc. |
| Surface Treatment: | Mirror Polish, Paint, Sandblast Etc. | Mesh Cleaning System: | Rubber Balls, Ultrasonic System, Rotary Brush System Etc. |
| Characteristics: | High Screening Accuracy, Multi-layer Sieving Available, Small Size Etc. | Application: | Glass Beads, Aluminium Oxide, Cobalt Powder Etc. |
| High Light: | vibro sieve machine,round separator |
||

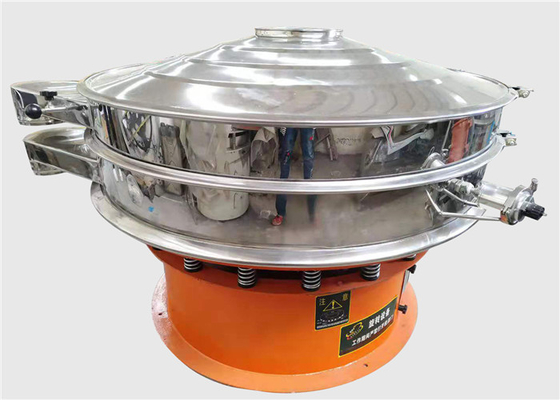

Metal Powder Sieving Machine Vibro Sifter For Glass Beads Microballoon
Introduction of High Accuracy Circular Vibro Screen Machine for Glass Beads Microballoon:
High Accuracy Circular Vibro Screen Machine for Glass Beads Microballoon is also known as the rotary vibrating screen, circular vibrating screen, vibrating separator, vibro screen, vibro sifter, vibro sieve, vibro shifter, circular vibrating sieve, rotary vibrating sieve, vibrating sifter etc. This is a kind of classic vibrating screening machine for most materials general use.
It is designed as a high-precision screening machinery, it is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends. Rotary vibrating screen can be produced in horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter also can be ranged from 400mm to 2000mm, with single or multiple screening decks, material can be total carbon steel, total stainless steel or material contact parts are stainless steel according to different product.
Purpose of High Accuracy Circular Vibro Screen Machine for Glass Beads Microballoon:
1. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.
2. Grading
Each model of circular vibrating sifter can precisely and continuously screen and separate screened products, the multi-layer type can sift and separate five groups of different particles at a time. It is suitable for dry materials.
3. Remove the impurity
The rotary vibro sieve can quickly separate a few oversize or undersized particles from a quantity of materials.
Some Information About High Accuracy Circular Vibro Screen Machine for Glass Beads Microballoon:
| Model | AY |
| Shape | circular or round shape |
| Layers of Screen | 1~5 layers of screen with 2~6 outlets |
| Mesh Size | above 325 mesh |
| Screen Frame | adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external) etc. |
| Self-cleaning System | bouncing balls (with ball decks), ultrasonic de-blinding system, rotary brush system etc. |
| Diameter | 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm |
| Material | stainless steel 304, 316L, carbon steel, plastic materials etc. |
| Surface Treatment | Paint, sandblast and polish etc. |
| Function | solid-separation, grading, remove the impurity etc. |
| Movement | three dimensional vibration motion |
| Damping Spring | carbon steel spring, stainless steel spring, air spring, rubber spring etc. |
| Motor | one set of vibrating motor, verticle arrangement |
| Motor Brand | OLI-WOLONG, Italvibras, AAREAL Made etc. |
| APO Safety System | Automatic Power Off Safety System is integrated in the motor |
| Quick-wear Parts |
mesh screen, perforated plate, bounce balls, clamps, springs, sealing rubber strip etc. |
| Optional Design | discharge gate, magnetic guard, quick release clamp, glass viewing port etc. |
Structure Diagram of High Accuracy Circular Vibro Screen Machine for Glass Beads Microballoon:
Characteristics of High Accuracy Circular Vibro Screen Machine for Glass Beads Microballoon:
1. It can be used with single or multilayer screen cloth.
2. Automatic discharge of materials, continuous operation.
3. No dead corner of parts, easy rinse thoroughly and disinfection.
4. High screening precision, high efficiency, suitable for any powder, grain and mucus materials.
5. New grid structure, long service life of screen cloth, only 3-5min for screen replacement.
6. Small volume, less space occupation, easy to move, 360 degree adjustment of discharge opening.
7. Fully enclosed structure, no flying dust, no liquid leakage, no blocking of mesh opening, screen can reach 500 meshes, and filter can reach 5μm.
Working Principle of High Accuracy Circular Vibro Screen Machine for Glass Beads Microballoon:
Sealed Multi-layer Three-dimensional Circular Vibrating Screen Machine is a vertical-motor system, with eccentric hammers being installed on top and bottom of the machine, where the motor acts as the vibratory source.
The direction of the eccentric hammers may change its rotational mode either in horizontal, vertical and inclined movement onto the sieving screener surface. The trajectories of the materials on the sieving machine can be changed by adjusting the angle of eccentric hammers on both top and bottom parts.
The general characteristics of the vibrating motor adjustment are described below:
Technical Parameters of High Accuracy Circular Vibro Screen Machine for Glass Beads Microballoon:
| Model | Power | Screen Surface Diameter | Effective Screening Area (m2) | Layers of Screen |
| AY-400 | 0.18 KW | 350mm | 0.0962 | 1~3 |
| AY-600 | 0.25 KW | 550mm | 0.2375 | 1~3 |
| AY-800 | 0.55 KW | 750mm | 0.4416 | 1~3 |
| AY-1000 | 0.75 KW | 920mm | 0.6644 | 1~3 |
| AY-1200 | 1.1 KW | 1120mm | 0.9847 | 1~3 |
| AY-1500 | 1.5 KW | 1420mm | 1.5829 | 1~3 |
| AY-1800 | 2.2 KW | 1720mm | 2.3223 | 1~3 |
| AY-2000 | 3.0 KW | 1920mm | 2.89 | 1~3 |
Overall Dimensions of High Accuracy Circular Vibro Screen Machine for Glass Beads Microballoon:
| Model | A | B | C | D | E | F | G | I | Single Layer Height | Double Layer Height |
Three Layer Height |
| AY-400 | 472 | 372 | 150 | 400 | 110 | 60 | 300 | 270 | 550 | 660 | 770 |
| AY-600 | 570 | 450 | 200 | 600 | 120 | 80 | 380 | 340 | 730 | 865 | 1000 |
| AY-800 | 690 | 570 | 200 | 800 | 130 | 100 | 550 | 340 | 730 | 865 | 1000 |
| AY-1000 | 810 | 690 | 250 | 970 | 150 | 120 | 650 | 400 | 790 | 925 | 1060 |
| AY-1200 | 970 | 850 | 250 | 1170 | 180 | 130 | 760 | 450 | 860 | 1025 | 1190 |
| AY-1500 | 1180 | 1060 | 250 | 1470 | 200 | 140 | 950 | 480 | 985 | 1180 | 1370 |
| AY-1800 | 1480 | 1360 | 350 | 1770 | 220 | 150 | 1110 | 520 | 1030 | 1220 | 1410 |
Application of High Accuracy Circular Vibro Screen Machine for Glass Beads Microballoon:
1. Food industry: Sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup, etc.
2. Chemical industry: Rubber, PVC powder, resin, pigment, industrial medicine, cosmetic, coatings, etc.
3. Ceramic and abrasive: Alumina, quartz sand, mud etc.
4. Metal, metallurgy and mining industry: Aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, manganese dioxide, electrolysis copper powder, electromagnetism materials, grinding powder, fire-resistant material, lime, alumina, heavy calcium carbonate, etc.
5. Paper making: Paper pulp, paint, wasted water recycling.
6. Pharmacy profession: Chinese herbal medicine, western medicine powder, liquid, particle, etc.
7. Social pollution disposed: Disposed oil, disposed water, disposed dye water, assistant, active carbon.
