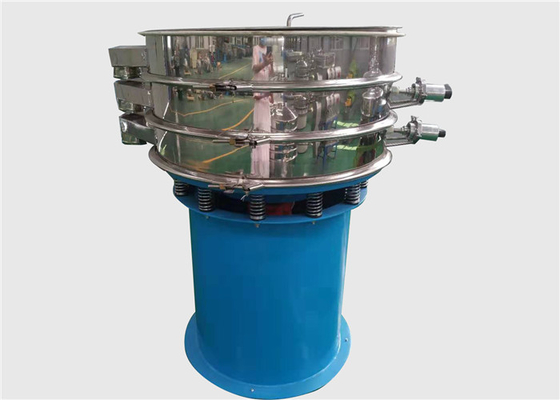

Small Size Gyratory Screen Separator Pottery Clay Argil Rotex Vibrating Screen

Small Size Gyratory Screen Separator Pottery Clay Argil Rotex Vibrating Screen

  • Small Size Gyratory Screen Separator Pottery Clay Argil Rotex Vibrating Screen
  • Small Size Gyratory Screen Separator Pottery Clay Argil Rotex Vibrating Screen
Small Size Gyratory Screen Separator Pottery Clay Argil Rotex Vibrating Screen
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Motion: Three-dimensional Movement Characteristics: Small Size, High Screening Accuracy, Accept Multi-layer Sieving Etc.
Warranty: One Year For The Machine Mesh Cleaning System: Rubber Balls, Ultrasonic System, Rotary Brush System Etc.
Surface Treatment: Paint, Sandblast, Mirror Polish Etc. Power: 0.18KW~3.0KW
Spare Parts: Screen, Springs, Bounce Balls, Clamps, Sealing Rubber Strip Etc. Material: Carbon Steel, Stainless Steel 304, 316L, Plastic Etc.
High Light:

round vibrating screen

,

round separator

Small Size Gyratory Screen Separator Pottery Clay Argil Rotex Vibrating Screen



Introduction of High Accuracy Rotary Vibro Sieving Machine for China Pottery Clay Argil:

High Accuracy Rotary Vibro Sieving Machine for China Pottery Clay Argil is proundly created for handling fine materials. It can efficiently screen foreign matters, filter impurities, and grade materials to ensure high quality products. Compared to conventional vibrating screeners, the rotary vibro sifter machine are more efficient and more accurate. Each machine can achieve six levels of sieving with more precision.

  This kind of sieve machine is also well known as the circular vibrating sieve, rotary vibrating sieve, vibro screen, vibro sifter, rotary vibrating screen, circular vibrating screen, vibro sieve, vibro shifter, vibrating separator, vibrating sifter etc. This is a kind of classic vibrating screening machine for most materials general use.



Purpose of High Accuracy Rotary Vibro Sieving Machine for China Pottery Clay Argil:

Small Size Gyratory Screen Separator Pottery Clay Argil Rotex Vibrating Screen 0

1. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.



2. Grading
Each model of circular vibrating sifter can precisely and continuously screen and separate screened products, the multi-layer type can sift and separate five groups of different particles at a time. It is suitable for dry materials.



3. Remove the impurity
The rotary vibro sieve can quickly separate a few oversize or undersized particles from a quantity of materials.



Some Information About High Accuracy Rotary Vibro Sieving Machine for China Pottery Clay Argil:

Model AY
Shape circular or round shape
Layers of Screen 1~5 layers of screen with 2~6 outlets
Mesh Size above 325 mesh
Screen Frame adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external) etc.
Self-cleaning System bouncing balls (with ball decks), ultrasonic system, rotary brush system etc.
Diameter 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm etc.
Material stainless steel 304, 316L, carbon steel, plastic materials etc.
Surface Treatment Paint, sandblast and polish etc.
Function solid-separation, grading, remove the impurity etc.
Movement three dimensional vibration motion
Damping Spring carbon steel spring, stainless steel spring, air spring, rubber spring etc.
Motor one set of vibrating motor, verticle arrangement
Motor Brand OLI-WOLONG, Italvibras, AAREAL Made, Other China Made brand etc.
APO Safety System Automatic Power Off Safety System is integrated in the motor
Spare Parts

mesh screen, perforated plate, bounce balls, clamps, springs,

sealing rubber strip etc.

Optional Design discharge gate, magnetic guard, quick release clamp, glass viewing port etc.



Structure Diagram of High Accuracy Rotary Vibro Sieving Machine for China Pottery Clay Argil:

Small Size Gyratory Screen Separator Pottery Clay Argil Rotex Vibrating Screen 1

Application of High Accuracy Rotary Vibro Sieving Machine for China Pottery Clay Argil:

1. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

2. Chemical industry: resin pigment, medicine, grease, paint, palette, cosmetic, etc.
3. Mining industry: kaolin, alumina, carbon, quartz sand,titanium oxide, zinc oxide, etc.

4. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive,refractory material, slurry, etc.
6. Metallurgy industry: aluminum powder, lead powder, copper powder, ore, alloy powder ,electrode powder, manganese dioxide, electrolytic copper powder, electric magnetic material, polishing powder, refractory material, etc.
7. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
8. Pollution treatment: waste oil, waste water,additives, activated carbon, etc.



Working Principle of High Accuracy Rotary Vibro Sieving Machine for China Pottery Clay Argil:

  The three-dimensional circular vibrating screen machine adopts the latest verticle vibrating motor as the source of vibration, equipped eccentricity hammer on the both sides of motor, change circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen. Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.

  Rotary vibro sifter machine allow users to adjust the phase angle of the upper and lower ends on the motor, which can change the vibration trace of the material on the screen surface. Through that way, the throughput and accuracy can be kept into one perfect balance .

  The general characteristics of the vibrating motor adjustment are described below:

Small Size Gyratory Screen Separator Pottery Clay Argil Rotex Vibrating Screen 2

Small Size Gyratory Screen Separator Pottery Clay Argil Rotex Vibrating Screen 3



Technical Parameters of High Accuracy Rotary Vibro Sieving Machine for China Pottery Clay Argil:

Small Size Gyratory Screen Separator Pottery Clay Argil Rotex Vibrating Screen 4

Model Power Screen Surface Diameter Effective Screening Area (m2) Layers of Screen
AY-400 0.18 KW 350mm 0.0962 1~3
AY-600 0.25 KW 550mm 0.2375 1~3
AY-800 0.55 KW 750mm 0.4416 1~3
AY-1000 0.75 KW 920mm 0.6644 1~3
AY-1200 1.1 KW 1120mm 0.9847 1~3
AY-1500 1.5 KW 1420mm 1.5829 1~3
AY-1800 2.2 KW 1720mm 2.3223 1~3
AY-2000 3.0 KW 1920mm 2.89 1~3



Overall Dimensions of High Accuracy Rotary Vibro Sieving Machine for China Pottery Clay Argil:

Small Size Gyratory Screen Separator Pottery Clay Argil Rotex Vibrating Screen 5

Model A B C D E F G I Single Layer Height Double Layer Height

Three

Layer

Height

AY-400 472 372 150 400 110 60 300 270 550 660 770
AY-600 570 450 200 600 120 80 380 340 730 865 1000
AY-800 690 570 200 800 130 100 550 340 730 865 1000
AY-1000 810 690 250 970 150 120 650 400 790 925 1060
AY-1200 970 850 250 1170 180 130 760 450 860 1025 1190
AY-1500 1180 1060 250 1470 200 140 950 480 985 1180 1370
AY-1800 1480 1360 350 1770 220 150 1110 520 1030 1220 1410



Characteristics​ of High Accuracy Rotary Vibro Sieving Machine for China Pottery Clay Argil:

1. Automatic discharge of materials, continuous operation.
2. No dead corner of parts, easy rinse thoroughly and disinfection.

3. High screening precision, high efficiency, suitable for any powder, grain and mucus materials.
4. New grid structure, long service life of screen cloth, only 3-5min for screen replacement.

5. Can be used with single or multilayer screen mesh.
6. Small volume, less space occupation, easy to move,360 degree adjustment of discharge opening.
7. Fully enclosed structure, no flying dust, no liquid leakage, no blocking of mesh opening, screen can reach 500 meshes, and filter can reach 5 um.



Small Size Gyratory Screen Separator Pottery Clay Argil Rotex Vibrating Screen 6Small Size Gyratory Screen Separator Pottery Clay Argil Rotex Vibrating Screen 7
