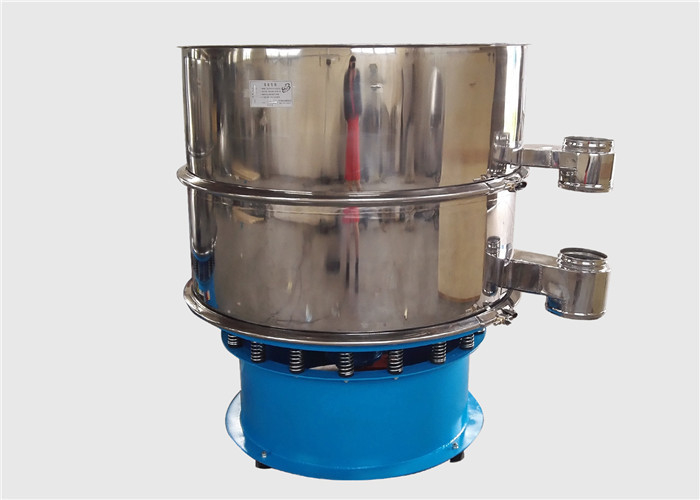

Multi Deck Round Vibrating Screen Three Dimensional For Water Soluble Paint

Multi Deck Round Vibrating Screen Three Dimensional For Water Soluble Paint

  • Multi Deck Round Vibrating Screen Three Dimensional For Water Soluble Paint
  • Multi Deck Round Vibrating Screen Three Dimensional For Water Soluble Paint
Multi Deck Round Vibrating Screen Three Dimensional For Water Soluble Paint
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Movement: Three-dimensional Motion Self-cleaning System: Bounce Balls, Ultrasonic System, Rotary Brush System Etc.
Diameter: 400mm~2000m Screen Decks: 1~5 Layers Of Screen (2^6 Outlets)
Surface Treatment: Mirror Polish, Paint, Sandblast Etc. Machine Material: Stainless Steel 304, 316L, Carbon Steel, Plastic Etc.
Voltage: 380V/3-Ph/50HZ (or At Your Requirement ) Application: Aluminum Silver Pulp, Paper Pulp, Powder Coating, Yeast, Rice Flour Etc.
High Light:

round vibrating screen

,

round separator

Multi Deck Round Vibrating Screen Three Dimensional For Water Soluble Paint



Introduction of Multi-deck Three-dimensional Rotary Vibrating Sieve for Water Soluble Paint:

Multi-deck Three-dimensional Rotary Vibrating Sieve for Water Soluble Paint is also well known as the rotary vibrating screen, rotary vibrating sieve, circular vibrating screen, circular vibrating sieve, vibro screen, vibro sifter, vibro sieve, vibrating separator, vibrating sifter etc. It is a kind of classic vibrating sieve machine for most materials general use.



Working Principle of Multi-deck Three-dimensional Rotary Vibrating Sieve for Water Soluble Paint:

  Our AY model rotary vibrating sieve machine uses the upright motor as the source of vibration, equipped eccentricity hammer on the both sides of motor, change circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen. Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.

  The general characteristics of the vibrator adjustment are described below:

Multi Deck Round Vibrating Screen Three Dimensional For Water Soluble Paint 0

Multi Deck Round Vibrating Screen Three Dimensional For Water Soluble Paint 1



Some Information About Multi-deck Three-dimensional Rotary Vibrating Sieve for Water Soluble Paint:

Model AY
Shape circular or round shape
Layers of Screen 1~5 layers of screen with 2~6 outlets
Mesh Size above 325 mesh
Screen Frame adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external) etc.
Mesh Cleaning Method bouncing balls, ultrasonic system, rotary brush system etc.
Machine Diameter 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm etc.
Material stainless steel 304, 316L, carbon steel, plastic materials etc.
Surface Treatment Paint, sandblast and polish etc.
Function grading, solid-separation, remove the impurity, dewatering etc.
Movement three dimensional vibration motion
Damping Spring carbon steel spring, stainless steel spring, air spring, rubber spring etc.
Motor verticle vibrating motor
Motor Brand AAREAL Made, OLI-WOLONG, Italvibras etc.
APO Safety System Automatic Power Off Safety System is integrated in the motor
Optional Design discharge gate, magnetic guard, quick release clamp, glass viewing port etc.



Structure Diagram of Multi-deck Three-dimensional Rotary Vibrating Sieve for Water Soluble Paint:

Multi Deck Round Vibrating Screen Three Dimensional For Water Soluble Paint 2

Features​ of Multi-deck Three-dimensional Rotary Vibrating Sieve for Water Soluble Paint:

1. Can be used with single or multilayer screen mesh.
2. Automatic discharge of materials, continuous operation.
3. No dead corner of parts, easy rinse thoroughly and disinfection.
4. High screening precision, high efficiency, suitable for any powder, grain and mucus materials.
5. New grid structure, long service life of screen cloth, only 3-5min for screen replacement.
6. Small volume, less space occupation, easy to move,360 degree adjustment of discharge opening.
7. Fully enclosed structure, no flying dust, no liquid leakage, no blocking of mesh opening, screen can reach 500 meshes, and filter can reach 5 um.



Basic Function of Multi-deck Three-dimensional Rotary Vibrating Sieve for Water Soluble Paint:

Multi Deck Round Vibrating Screen Three Dimensional For Water Soluble Paint 3

1. Grading
Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi-layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.



2. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.



3. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.



Technical Parameters of Multi-deck Three-dimensional Rotary Vibrating Sieve for Water Soluble Paint:

Multi Deck Round Vibrating Screen Three Dimensional For Water Soluble Paint 4

Model Power Screen Surface Diameter Effective Screening Area (m2) Layers of Screen
AY-400 0.18 KW 350mm 0.0962 1~3
AY-600 0.25 KW 550mm 0.2375 1~3
AY-800 0.55 KW 750mm 0.4416 1~3
AY-1000 0.75 KW 920mm 0.6644 1~3
AY-1200 1.1 KW 1120mm 0.9847 1~3
AY-1500 1.5 KW 1420mm 1.5829 1~3
AY-1800 2.2 KW 1720mm 2.3223 1~3
AY-2000 3.0 KW 1920mm 2.89 1~3



Overall Dimensions of Multi-deck Three-dimensional Rotary Vibrating Sieve for Water Soluble Paint:

Multi Deck Round Vibrating Screen Three Dimensional For Water Soluble Paint 5

Model A B C D E F G I Single Layer Height Double Layer Height

Three

Layer

Height

AY-400 472 372 150 400 110 60 300 270 550 660 770
AY-600 570 450 200 600 120 80 380 340 730 865 1000
AY-800 690 570 200 800 130 100 550 340 730 865 1000
AY-1000 810 690 250 970 150 120 650 400 790 925 1060
AY-1200 970 850 250 1170 180 130 760 450 860 1025 1190
AY-1500 1180 1060 250 1470 200 140 950 480 985 1180 1370
AY-1800 1480 1360 350 1770 220 150 1110 520 1030 1220 1410



Application of Multi-deck Three-dimensional Rotary Vibrating Sieve for Water Soluble Paint:

1. Food Industry:
Sugar powder, starch, salt, rice flour, milk powder, soybean milk, egg powder, soy sauce, juice, tea, drink, dairy products, sweets, small food, frozen food, spices, protein, food additives, dehydrated vegetables, etc.



2. Powder Metallurgy Industry
Iron powder, copper powder, molybdenum powder, tungsten powder, silver powder, aluminium.



3. Pharmaceuticals Industry:
Active pharmaceutical ingredients, penicillin, tetracycline HCL, vitamin, powder, pharmaceutical intermediates, tablet, granule and granule, Chinese medicine medicinal slices, etc.



4. Chemical Industry:
Epoxy resin, resin, rubber additives, desiccant, accelerant, fluorescent whitening agent, paint, phenolic resin, polyethylene powder particles, EPS, PVC, catalyst, blowing agent etc.



5. Other Industries
Magnetic materials, lithium iron phosphate, cobalt acid lithium, graphite powder, laundry detergent, activated carbon, starch glue, glass fiber, feldspar, white corundum, quick lime, mica, polishing powder, refractory material, kaolin, carbon acid calcium, quartz sand, paper, etc



Multi Deck Round Vibrating Screen Three Dimensional For Water Soluble Paint 6Multi Deck Round Vibrating Screen Three Dimensional For Water Soluble Paint 7
