Place of Origin: | China |
Brand Name: | AAREAL |
Certification: | ISO9001:2015 |
Model Number: | AY |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Fumigation-free plywood wooden case for export |
Delivery Time: | 20~30 work days after order confirmed |
Payment Terms: | T/T, L/C, Western Union, MoneyGram |
Supply Ability: | 20 sets per month |
Self-cleaning System: | Bounce Balls, Ultrasonic System, Rotary Brush System Etc. | Structure: | Screen Frame, Screen Holder, Cover, Bottom, Vibrating Motor Etc. |
---|---|---|---|
Screen Decks: | 1~5 Layers Of Screen | Model: | AY-600, 800, 1000, 1200, 1500, 1800, 2000 Etc. |
Surface Treatment: | Polish, Paint, Sandblast Etc. | Material: | Stainless Steel 304, 316L, Carbon Steel, Plastic Etc. |
Motor: | One Set Of Verticle Vibrating Motor | Application: | Powder, Particles, Slurry Etc. |
Highlight: | round vibrating screen,round separator |

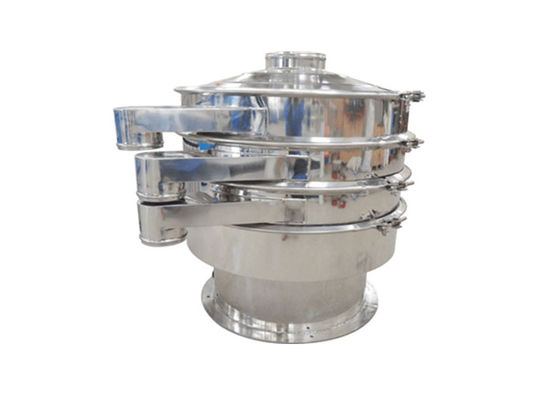

Three Dimensional Rotary Vibrating Screen Magnetic Pigment Tumbler Sieve
Introduction of Three-dimensional Rotary Vibration Sieving Machine for Magnetic Pigment:
Three-dimensional Rotary Vibration Sieving Machine for Magnetic Pigment belongs to a high precision fine powder separation machine. High screen efficiency and novel design are the main features of vibrating sifter. It adds the special cleaning device- bouncing ball. It can bounce up and down while the screen cloth is shaking, which can effectively avoid clogging. The sealing structure design and all- closed type which can be avoid polluting the environment . The installation is very safe and convenient.
Some Information About Three-dimensional Rotary Vibration Sieving Machine for Magnetic Pigment:
Model | AY |
Shape | circular or round shape |
Layers of Screen | 1~5 layers of screen with 2~6 outlets |
Mesh Size | above 325 mesh |
Screen Frame | adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external) etc. |
Mesh Cleaning Method | bouncing balls, ultrasonic system, rotary brush system etc. |
Machine Diameter | 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm etc. |
Material | stainless steel 304, 316L, carbon steel, plastic materials etc. |
Surface Treatment | Paint, sandblast and polish etc. |
Function | grading, solid-separation, remove the impurity, dewatering etc. |
Movement | three dimensional vibration motion |
Damping Spring | carbon steel spring, stainless steel spring, air spring, rubber spring etc. |
Motor | verticle vibrating motor |
Motor Brand | AAREAL Made, OLI-WOLONG, Italvibras etc. |
APO Safety System | Automatic Power Off Safety System is integrated in the motor |
Optional Design | magnetic guard, quick release clamp, discharge gate, glass viewing port etc. |
Features of Three-dimensional Rotary Vibration Sieving Machine for Magnetic Pigment:
1. It has superb anti-binding properties – It helps to prevent screen clog neatly. Unlike other equipment, it does not create dust clouds as it operates. Like a robot, it has an automatic capacity to discharge separated materials.
2. It contains up to 5 screens per unit – This makes it capable of conducting multiple operations with just a single unit; This is another feature which makes it cost effective. Moreover, its screen can easily be adjusted or changed in five minutes. Now, that’s quick enough.
3. Simple and functional design – This makes it run with sustained efficiency. It is also easier to use and has a higher capacity. Further, it is designed so that it can run with minimal supervision. It has a low-maintenance structure. Moreover, it creates lower noise and covers a minimal floor space. Also, it is lightweight and can easily be transferred using a pallet jack or forklift.
4. Consumes lower energy compared to conventional equipment – It does not sacrifice output quality. It not only generates premium outputs but also contributes to minimizing environmental damage.
5. It can work on its own for long hours – It does not entail much manual attention. In other words, its high durability makes it run with minimal supervision.
6. The rotary vibrating sieve is made up of stainless steel, including all its contact parts – Even better, it can be fully or partially upgraded to SS316. This is to meet arising needs/demands. Likewise, it has various sizes and available modification schemes to suit all types of materials. Among these are different forms of powder and liquids.
Basic Function of Three-dimensional Rotary Vibration Sieving Machine for Magnetic Pigment:
1. Grading
Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi-layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.
2. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.
3. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.
Technical Parameters of Three-dimensional Rotary Vibration Sieving Machine for Magnetic Pigment:
Model | Power | Screen Surface Diameter | Effective Screening Area (m2) | Layers of Screen |
AY-400 | 0.18 KW | 350mm | 0.0962 | 1~3 |
AY-600 | 0.25 KW | 550mm | 0.2375 | 1~3 |
AY-800 | 0.55 KW | 750mm | 0.4416 | 1~3 |
AY-1000 | 0.75 KW | 920mm | 0.6644 | 1~3 |
AY-1200 | 1.1 KW | 1120mm | 0.9847 | 1~3 |
AY-1500 | 1.5 KW | 1420mm | 1.5829 | 1~3 |
AY-1800 | 2.2 KW | 1720mm | 2.3223 | 1~3 |
AY-2000 | 3.0 KW | 1920mm | 2.89 | 1~3 |
Working Principle of Three-dimensional Rotary Vibration Sieving Machine for Magnetic Pigment:
AY model rotary vibrating sieve use upright motor as the source of vibration, equipped eccentricity hammer on the both sides of motor, change circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen. Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.
The general characteristics of the vibrator adjustment are described below:
Overall Dimensions of Three-dimensional Rotary Vibration Sieving Machine for Magnetic Pigment:
Model | A | B | C | D | E | F | G | I | Single Layer Height | Double Layer Height |
Three Layer Height |
AY-400 | 472 | 372 | 150 | 400 | 110 | 60 | 300 | 270 | 550 | 660 | 770 |
AY-600 | 570 | 450 | 200 | 600 | 120 | 80 | 380 | 340 | 730 | 865 | 1000 |
AY-800 | 690 | 570 | 200 | 800 | 130 | 100 | 550 | 340 | 730 | 865 | 1000 |
AY-1000 | 810 | 690 | 250 | 970 | 150 | 120 | 650 | 400 | 790 | 925 | 1060 |
AY-1200 | 970 | 850 | 250 | 1170 | 180 | 130 | 760 | 450 | 860 | 1025 | 1190 |
AY-1500 | 1180 | 1060 | 250 | 1470 | 200 | 140 | 950 | 480 | 985 | 1180 | 1370 |
AY-1800 | 1480 | 1360 | 350 | 1770 | 220 | 150 | 1110 | 520 | 1030 | 1220 | 1410 |
Structure Diagram of Three-dimensional Rotary Vibration Sieving Machine for Magnetic Pigment:
Application of Three-dimensional Rotary Vibration Sieving Machine for Magnetic Pigment:
1. Food Industry:
Sugar powder, starch, salt, rice flour, milk powder, soybean milk, egg powder, soy sauce, juice, tea, drink, dairy products, sweets, small food, frozen food, spices, protein, food additives, dehydrated vegetables, etc.
2. Chemical Industry:
Epoxy resin, resin, phenolic resin, polyethylene powder particles, EPS, PVC, catalyst, blowing agent, rubber additives, desiccant, accelerant, fluorescent whitening agent, paint, etc.
3. Powder Metallurgy Industry
Iron powder, copper powder, molybdenum powder, tungsten powder, silver powder, aluminium.
4. Pharmaceuticals Industry:
Active pharmaceutical ingredients, pharmaceutical intermediates, tablet, granule and granule, penicillin, tetracycline HCL, vitamin, powder, Chinese medicine medicinal slices, etc.
5. Other Industries
Magnetic materials, lithium iron phosphate, cobalt acid lithium, graphite powder, laundry detergent, activated carbon, starch glue, glass fiber, feldspar, white corundum, quick lime, mica, polishing powder, refractory material, kaolin, carbon acid calcium, quartz sand, paper, etc
