Place of Origin: | China |
Brand Name: | AAREAL |
Certification: | ISO9001:2015 |
Model Number: | AY |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Fumigation-free plywood wooden case for export |
Delivery Time: | 20~30 work days after order confirmed |
Payment Terms: | T/T, L/C, Western Union, MoneyGram |
Supply Ability: | 20 sets per month |
Movement: | Three Dimensional Vibration Motion | Material: | Carbon Steel, Stainless Steel, Plastic Material Etc. |
---|---|---|---|
Layers Of Screen: | 1~5 Layers, Suggest 1~3 Layers | Screen Holder: | Bolt Insert Type, Flange Type, Glue Adhesive Type Etc. |
Mesh De-blinding: | Bounce Balls, Ultrasonic Deblinding System, Rotary Brush System Etc. | Diameter: | 800mm, 1000mm, 1200mm, 1500mm, 1800mm Etc. |
Power: | 0.18KW ~ 3.0KW | Application: | Ceramics, Sand, Paper Pulp, Yeast, Graphite, Flour Etc. |
Highlight: | round vibrating screen,round separator |

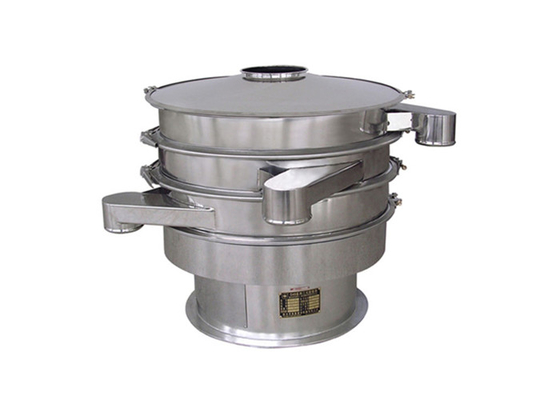

Economical Tumbler Screening Machine , Kaolin White Clay Gyratory Sifter
Introduction of Economical Rotary Vibro Shifter Sieve Machine for Kaolin White Clay:
Economical Rotary Vibro Shifter Sieve Machine for Kaolin White Clay is a high precision fine powder screening machine.The rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.
Characteristics of Economical Rotary Vibro Shifter Sieve Machine for Kaolin White Clay:
1. Simple and functional design – higher capacity, easy use, less maintenance, lower noise, and require minimal floor space.
2. Lower energy consumption – reduce cost.
3. Stainless Steel - all contact parts in stainless steel SS304. Full or partial SS316L upgrades available.
4. Wide range of sizes and modifications available to suit all types of powder and viscous liquids.
5. Quick change design - allows screen change in less than 5 minutes.
6. Simple and functional design - higher capacity, easy use, less maintenance, lower noise, and require minimal floor space.
7. Anti-binding devices - prevent screen clog without creating dust clouds during operations.
8. Automatic discharge of separated materials - continuous and uninterrupted production.
9. Light weight - easily movable with pellet jack or forklift.
10. Up to 5 screens per unit - allowing multiple separations with just one unit for cost effective operation.
11. Lower energy consumption - reduce cost.
12. Highly durable - designed for long hours of operation with minimal service required.
Important Information About Economical Rotary Vibro Shifter Sieve Machine for Kaolin White Clay:
Model | AY |
Shape | circular or round shape |
Layers of Screen | 1~5 layers of screen with 2~6 outlets |
Mesh Size | above 325 mesh |
Screen Frame | adhesive type, L type, ultrasonic type (transducer internal and external) etc. |
Mesh Cleaning Method | bouncing balls, ultrasonic system, rotary brush system etc. |
Machine Diameter | 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm etc. |
Material | stainless steel 304, 316L, carbon steel, plastic materials etc. |
Function | grading, solid-separation, remove the impurity, dewatering etc. |
Movement | three dimensional vibration motion |
Damping Spring | carbon steel spring, stainless steel spring, air spring, rubber spring etc. |
Motor | verticle vibrating motor |
Motor Brand | China Made, OLI-WOLONG or other brand |
Optional Design | magnetic guard, quick release clamp, discharge gate, glass viewing port etc. |
Optional Designs for Economical Rotary Vibro Shifter Sieve Machine for Kaolin White Clay:
1. The APO Safety System (Automatic Power Off Safety System) is integrated in the motor. In case of short circuit, phase loss, electric leakage and unstable voltage, the motor can cut off the power automatically to safeguard the machine and your staff.
2. Discharge Gate: it is used to control production flow and speed. This enables a better flow and provides consistent discharge characteristics from even surfaces. However, the discharge rate might differ from the ratio and diameter of the discharge pipe.
3. Customised Dust Cover: it is used to reduce any leaks from the machine. It also helps reduce airborne dust from flowing on the steam or conveyer belt. This device is made custom to fit your production line.
4. Quick Release Clamp: it is used for releasing camps rings without the need to use tools. While the other side of the clamp is used for tightening. It is mostly used for cleaning and dissembling purposes.
5. Magnetic Guard: it is used for preventing any contamination and also to ensure that manufacturing is done safely and free from any irregularities. It captures particles with the use of high magnetic strength. The collected contaminants are then unleashed into the discharge chutes.
6. Spring Dust Cover: it is used to provide additional protection against dust and other particles by the strength of the springs, which is determined by the rollers which are also spring-loaded.
Structure Diagram of Economical Rotary Vibro Shifter Sieve Machine for Kaolin White Clay:
Basic Function of Economical Rotary Vibro Shifter Sieve Machine for Kaolin White Clay:
1. Grading
Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi-layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.
2. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.
3. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.
Technical Parameters of Economical Rotary Vibro Shifter Sieve Machine for Kaolin White Clay:
Model | Power | Screen Surface Diameter | Effective Screening Area (m2) | Screen Decks |
AY-400 | 0.18 KW | 350mm | 0.0962 | 1~3 |
AY-600 | 0.25 KW | 550mm | 0.2375 | 1~3 |
AY-800 | 0.55 KW | 750mm | 0.4416 | 1~3 |
AY-1000 | 0.75 KW | 920mm | 0.6644 | 1~3 |
AY-1200 | 1.1 KW | 1120mm | 0.9847 | 1~3 |
AY-1500 | 1.5 KW | 1420mm | 1.5829 | 1~3 |
AY-1800 | 2.2 KW | 1720mm | 2.3223 | 1~3 |
AY-2000 | 3.0 KW | 1920mm | 2.89 | 1~3 |
Working Principle of Economical Rotary Vibro Shifter Sieve Machine for Kaolin White Clay:
By means of the upper and lower hammer mounted on the vibration motor, the sifter can turn the rotary motion force of the motor into three-dimensional motion (horizontal, vertical, inclined). Then this motion will be delivered to the screen surface. Thus, the sifter realizes the purpose of sieving.
The general characteristics of the vibrator adjustment are described below:
Overall Dimensions of Economical Rotary Vibro Shifter Sieve Machine for Kaolin White Clay:
Model | A | B | C | D | E | F | G | I | Single Layer Height | Double Layer Height |
Three Layer Height |
AY-400 | 472 | 372 | 150 | 400 | 110 | 60 | 300 | 270 | 550 | 660 | 770 |
AY-600 | 570 | 450 | 200 | 600 | 120 | 80 | 380 | 340 | 730 | 865 | 1000 |
AY-800 | 690 | 570 | 200 | 800 | 130 | 100 | 550 | 340 | 730 | 865 | 1000 |
AY-1000 | 810 | 690 | 250 | 970 | 150 | 120 | 650 | 400 | 790 | 925 | 1060 |
AY-1200 | 970 | 850 | 250 | 1170 | 180 | 130 | 760 | 450 | 860 | 1025 | 1190 |
AY-1500 | 1180 | 1060 | 250 | 1470 | 200 | 140 | 950 | 480 | 985 | 1180 | 1370 |
AY-1800 | 1480 | 1360 | 350 | 1770 | 220 | 150 | 1110 | 520 | 1030 | 1220 | 1410 |
Application of Economical Rotary Vibro Shifter Sieve Machine for Kaolin White Clay:
1. Chemical Industry: colophony, dope, industry leechdom, cosmetic, paint
2. Grinding Materials And china Industry: alumina, quartz, slurry, kaoline, carborundum, sprayer dust.
3. Food Industry: sugar, amylum, rice powder, milk powder, soyabean milk, angel cake, sauce, juice.
4. Paper-Making Industry: dope,white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water recycling.
5. Metallurgy, Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese,electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate.
