|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Other Names:||Vibro Sieve, Vibro Screen, Vibrating Sifter, Round Separator Etc.||Optional:||Quick Release Clamp, Discharge Gate, Magnetic Guard, Glass Viewing Port Etc.|
|Customized:||Low-profile Screen, High Frequency Screen, Avalanche Screen Etc.||Motion:||Three Dimensional Movement|
|Screen Frame:||Bolt Insert Type, Glue Adhesive Type, Flange Type Etc.||Motor:||One Unit Of Vibrating Motor, Verticle Arrangement|
|Mesh Cleaning Method:||Bouncing Balls, Ultrasonic Deblinding System, Rotary Brush System Etc.||Application:||Particle Size Grading, Impurity Removal, Filtering, De-watering, De-dusting, Lump Breaking, Cooling, Size Control Etc.|
vibro sieve machine,

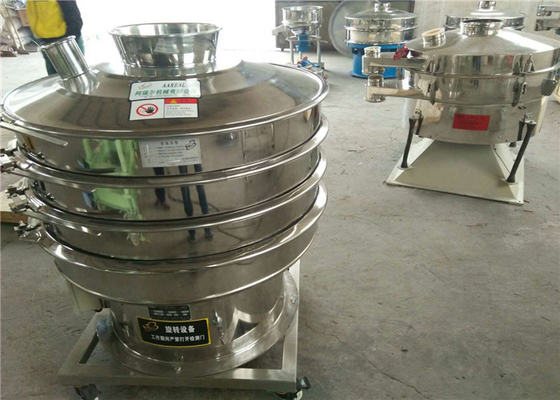

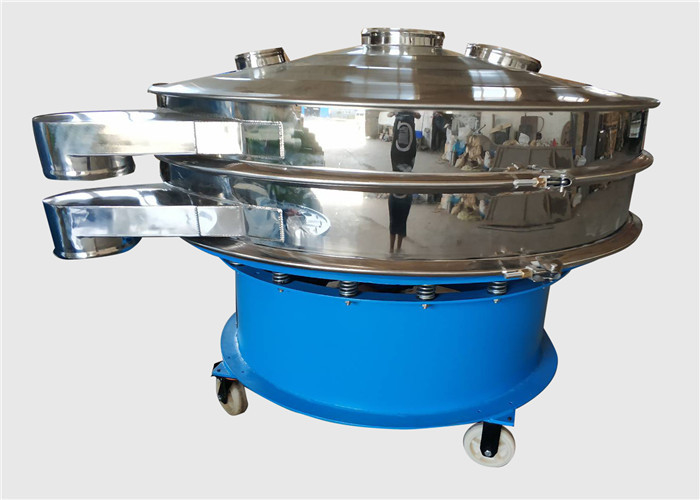

Product Description of Multilayer Rotary Vibrating Sieve Machine for Wheat Flour Powder:
Multilayer Rotary Vibrating Sieve Machine for Wheat Flour Powder is a revolutionary high performance vibrating screen for screening both dry and wet materials.
The rotary vibrating sifter machine is suitable for screening all of dry material (from 0.074mm to 20mm). This screening machine dimension is ranged from diameter 450mm, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm. It supports at most 5 layers. But 3 layers are highly recommended.
This kind of sieving machine is also known as the circular vibratory screen, circular vibrating screen, circular vibrating sieve, rotary vibrating screen, rotary vibrating sieve, round separator, vibro screen, vibrating sifter, round vibro sieve, gyro screen, gyro sieve, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.
Working Principle of Multilayer Rotary Vibrating Sieve Machine for Wheat Flour Powder:
The multi-deck rotary vibating screen separator adopts the latest vertical vibrating motor, which produces a horizontal, vertical and oblique vibration of three dimensional, and then directly passes the vibration to screen surface. Changing the angle of the upper and lower eccentric block of the motor, it produces different exciting force, and the direction in which the material is running is changed.
The rotary vibrating screen filter sieve machine is made up of spring buffer, base, upper and lower heavy hammer,vibrating motor, screen frame, clamp ring, vibrating body, inlet and outlet port, dust proof cover and other parts. The exciting force will generate by the rotation of vibrating motor. The exciting force drives the vibrating body to vibrate. So the materials on the screen cloth can shake to reach the objective that filters different grade materials., The adjustable eccentric hammer is driven to the center line through the motor, caused centrifuged force under the state of unbalance and so that the materials from regular spiral. Speed and track of materials on the screen can be controlled by adjusting the angle of the two eccentric weights.
Important Information You May Concern About Multilayer Rotary Vibrating Sieve Machine for Wheat Flour Powder:
|Shape||circular or round shape|
|Layers of Screen||1~5 screen decks (with 2~6 discharge ports)|
|Mesh Size||above 325 mesh|
|Screen Frame||adhesive type, L type, ultrasonic type (transducer internal and external) etc.|
|Mesh Cleaning Method||bouncing balls, ultrasonic system, rotary brush system etc.|
|Machine Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm etc.|
|Material||stainless steel 304, 316L, carbon steel etc.|
|Function||grading, solid-separation, remove the impurity etc.|
|Movement||three dimensional vibration motion|
|Damping Spring||galvanized steel spring etc.|
|Motor||verticle vibrating motor|
|Motor Brand||China Made, OLI-WOLONG etc.|
|Optional||quick release clamp, magnetic guard, discharge gate, glass viewing port etc.|
The general characteristics of the vibrator adjustment are described below:
Structure Diagram of Multilayer Rotary Vibrating Sieve Machine for Wheat Flour Powder:
Basic Function of Multilayer Rotary Vibrating Sieve Machine for Wheat Flour Powder:
1. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.
Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi-layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.
3. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.
Features of Multilayer Rotary Vibrating Sieve Machine for Wheat Flour Powder:
1. it is applicable to any powder, liquid and granular;
2. screen powder does not float in the sky, spray liquid not disorderly, granule not jump;
3. people can replace rapidly network layer without any tool, using the network layer to 8 layer;
4. the time can be setting under automatic control, can be set 1 to 60 minutes;
5. screen mesh from 3.5 mesh to 400 mesh.
Technical Parameters of Multilayer Rotary Vibrating Sieve Machine for Wheat Flour Powder:
|Model||Power||Screen Surface Diameter||Effective Screening Area (m2)||Screen Decks|
Overall Dimensions of Multilayer Rotary Vibrating Sieve Machine for Wheat Flour Powder:
|Model||A||B||C||D||E||F||G||I||Single Layer Height||Double Layer Height||
Optional Designs for Multilayer Rotary Vibrating Sieve Machine for Wheat Flour Powder:
1. Discharge Gate: it is used to control production flow and speed. This enables a better flow and provides consistent discharge characteristics from even surfaces. However, the discharge rate might differ from the ratio and diameter of the discharge pipe.
2. Quick Release Clamp: it is used for releasing camps rings without the need to use tools. While the other side of the clamp is used for tightening. It is mostly used for cleaning and dissembling purposes.
3. Spring Dust Cover: it is used to provide additional protection against dust and other particles by the strength of the springs, which is determined by the rollers which are also spring-loaded.
4. Customised Dust Cover: it is used to reduce any leaks from the machine. It also helps reduce airborne dust from flowing on the steam or conveyer belt. This device is made custom to fit your production line.
5. Magnetic Guard: it is used for preventing any contamination and also to ensure that manufacturing is done safely and free from any irregularities. It captures particles with the use of high magnetic strength. The collected contaminants are then unleashed into the discharge chutes.
Application of Multilayer Rotary Vibrating Sieve Machine for Wheat Flour Powder:
1. Food Industry: sugar, amylum, rice powder, milk powder, soyabean milk, angel cake, sauce, juice.
2. Paper-Making Industry: dope,white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water recycling.
3. Chemical Industry: colophony, dope, industry leechdom, cosmetic, paint
4. Grinding Materials And china Industry: quartz, slurry, kaoline, carborundum, alumina, sprayer dust.
5. Metallurgy, Mining Industry: aluminum powder, welding rod powder, dioxide manganese, electrolyze copper powder, ceruse, copper powder, ore alloy powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate.
