Payment & Shipping Terms:
|Purpose:||Grading, Solid-separation, Impurity Removal, De-water Etc.||Other Names:||Rotary Vibrating Separator, Vibro Screen, Vibro Sifter, Vibro Shifter Etc.|
|Diameter:||400mm~2000mm||Screen Deck:||1~5 Layers (suggest 1~3 Layers)|
|Mesh De-blinding:||Ultrasonic Device, Bouncing Balls Etc.||Material:||Carbon Steel, Stainless Steel, Plastic Etc.|
|Motor Power:||0.18KW ~3.0KW||Application:||Milk Powder, Glucose, Starch, Yeast, Glaze Etc.|
Food Grade round vibrating screen,
Rotary Vibrating Sieve Machine,
Yeast Powder Rotary Vibrating Screen

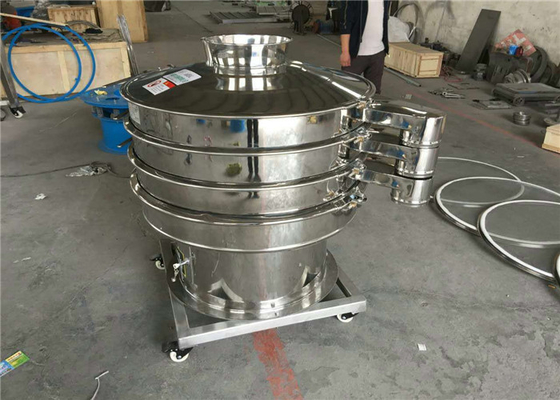

Yeast Powder Rotary Vibrating Screen Machine Food Grade

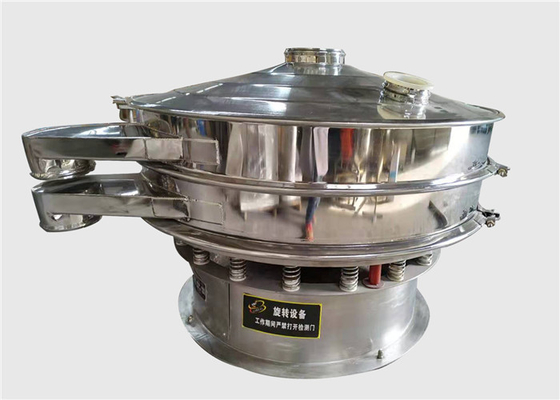

Overview of Food Grade Yeast Powder High Precision Rotary Vibrating Sieve Machine:
Food Grade Yeast Powder High Precision Rotary Vibrating Sieve Machine is a kind of high precision sieving machine, low noise, high efficiency, only 3-5 minutes to replace the screen rapidly, fully closed structure. It can apply to granule, powder and liquid screening and filtering.
This kind of sieving machine is also well known as the circular vibratory screen, circular vibrating screen, round separator, vibro sifter, vibro separator, vibro screen, rotary vibrating screen, rotary vibrating sieve, vibrating sifter, round vibro sieve, gyro screen, gyro sieve, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.
Important Information About Food Grade Yeast Powder High Precision Rotary Vibrating Sieve Machine:
|Layers of Screen||1~5 screen decks with 2~6 outlets|
|Mesh Size||above 325 mesh|
|Screen Frame||flange type, L type (bolt insert type), adhesive glue type etc.|
|Mesh Cleaning Method||bouncing balls, ultrasonic deblinding system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 900mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm etc.|
|Material||carbon steel, contact parts stainless steel 304/316L, full stainless steel etc.|
|Function||grading, solid-separation, remove the impurity, de-water etc.|
|Movement||three dimensional vibration motion|
|Damping Spring||carbon steel spring, stainless steel spring, air spring, rubber spring etc.|
|Motor||one unit of verticle vibrating motor,|
|Motor Brand||China Made, OLI-WOLONG etc.|
|Optional||quick release clamp, magnetic guard, discharge gate, glass viewing port etc.|
|Attention||people must remove the red transportation support before operation !!!|
Features and Advantages of Food Grade Yeast Powder High Precision Rotary Vibrating Sieve Machine:
1. Never jam the hole meshwork, no powder flying, filter size of the powder between 5mm to 0.025 mm.
2. Discharge the impurities or coarse materials automobile and operates continuously.
3. High efficiency, refined design, duration, any powders and mucilage are suitable for using.
4. Easily to replace the screen, simple operation and convenience washing.
5. Small volume, move easily.
6. The highest layers of the screen are about 5 layers. But 3 layers are suggested.
7. Unique screen flame design, long duration of screen, only 3-5 min to replace the screen.
Working Principle of Food Grade Yeast Powder High Precision Rotary Vibrating Sieve Machine:
Our round vibrating sieve machine is a high precision fine powder screening machine, with low noise and high efficiency. It takes only 3~5 minutes to quickly change the screen. This rotary vibro screen is made of an upright motor as the excitation source. The upper and lower ends of the motor are equipped with eccentric hammer. The rotary motion of the motor is transformed into horizontal, vertical and inclined tridimensional motion, which is then transmitted to the screen surface.By adjusting the phase angle of upper and lower ends, the movement track of materials on the screen surface can be changed. Materials can be fine screening, probability screening etc.
Application of Food Grade Yeast Powder High Precision Rotary Vibrating Sieve Machine:
1. Abrasive and Ceramics: alumina, quartz sand, slurry, atomizing soil particles.
2. Chemical: resin sand, pigment, washing powder, micropowder, paint, soda ash, lemon powder, rubber and plastics.
3. Food: sugar, salt, soda, MSG (monosodium glutamate), milk powder, soy-bean milk, yeast, juice, soy sauce, vinegar, etc.
4. Pharmaceutical: TCM (traditional Chinese medicine) powder, TCM liquid, western medical powder, western medical liquid, TCM & western medical particles, etc.
5. Environment Protection: rubbish, excrement, waste oil, food effluent, waste water processing, etc.
6. Paper Making: coating, coated slurry, black-and-white liquid, waste liquor, papermaking liquid, waste water recycle.
7. Metallurgy: titanium oxide, zinc oxide, electromagnetic materials, metal powder, welding rod powder, etc.
Technical Parameters of Food Grade Yeast Powder High Precision Rotary Vibrating Sieve Machine:
|Model||Power||Screen Diameter||Effective Screening Area (m2)||Layers of Screen|
Note: The above data are for reference only. We reserve the right to modify the data
