Classical High Precision Rotary Vibrating Screen For Epoxy Powder Coating

Classical High Precision Rotary Vibrating Screen For Epoxy Powder Coating

  • Classical High Precision Rotary Vibrating Screen For Epoxy Powder Coating
  • Classical High Precision Rotary Vibrating Screen For Epoxy Powder Coating
Classical High Precision Rotary Vibrating Screen For Epoxy Powder Coating
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Alternative Names: Rotary Vibrating Screen, Round Separator, Rotary Vibrating Sieve, Vibro Screen, Vibro Sifter, Vibro Shifter Etc. Function: Grading, Solid-separation, Remove The Impurity, De-water Etc.
Screen Deck: 1~5 Screen Decks (suggest 1~3) Diameter: 400mm~2000mm
Mesh De-blinding: Bouncing Balls, Ultrasonic System, Rotary Brush Etc. Motor Power: 0.18KW ~3.0KW
Application: Glucose, Aluminum Silver Paste, Starch, Yeast Etc. Attention: Must Remove The Transportation Support Before Operation
High Light:

round vibrating screen

,

round separator

Overview of Classical High Precision Rotary Vibrating Screen For Epoxy Powder Coating​​​​​:

Classical High Precision Rotary Vibrating Screen For Epoxy Powder Coating is also known as the round separator, vibro screen, rotary vibrating screen, rotary vibrating sieve, vibrating sifter, round vibro sieve, gyro screen, gyro sieve, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, circular vibratory screen, circular vibrating screen, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.

  The rotary vibro sieve is designed as a high-precision screening machinery. Rotary vibro separator price is composed of vertical motor,and eccentric weight installed at two ends. We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter can be ranged from 400mm to 2000mm, with single or multiple layers of screen (1~5 layers). Material can be full carton steel, contact part stainless steel and full stainless steel etc.

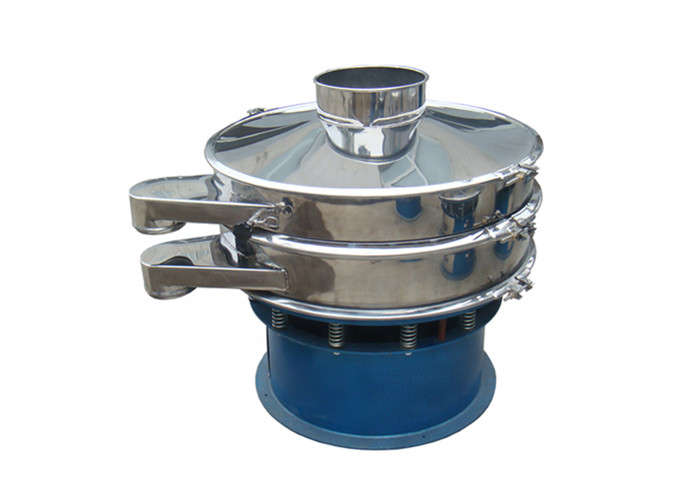

Classical High Precision Rotary Vibrating Screen For Epoxy Powder Coating 0

Features and Advantages of Classical High Precision Rotary Vibrating Screen For Epoxy Powder Coating​​​:

1. The screening precision of our circular vibrating screen is excellent, and the blocking rate of the screen is less than 10% in average.
2. The screen frame of the circular vibrating screen is specially designed. It takes only 5~10 min for the screen replacement. The stainless steel woven wire mesh is easy to clean and operate, while the life span is quite long.
3. The movement locus and vibration amplitude are both adjustable. Any granular, powdery and serous materials could be roughly screened, or just filtered according to the material applications.
4. The screening machine is 400~2000 mm in diameter, and the overall size is quite small. Wheels can be mounted on it for convenient moving.
5. During the operation, if short circuit, phase loss or unstable voltage occurred, the motor will automatically cut off the power supply and stop working to make sure the motor will be not burnt out. Thus the electric element's damage can be reduced to an extremely low level.
6. The protective grade of the motor comply with IP65, which means it is dustproof and waterproof. Besides, it is also heatproof and oil proof.

7. Completely enclosed structure is adopted so the particulate matter pollution in the air is quite limited.
8. The discharging outlet can be rotated at 360 degree, facilitating the installation of matching equipment.
9. The energy consumption of our circular vibrating screen is small, while the noise could reach as low as 73~80 dB.



Important Information About Classical High Precision Rotary Vibrating Screen For Epoxy Powder Coating:

Model AY
Shape round
Layers of Screen 1~5 screen decks with 2~6 outlets
Mesh Size above 325 mesh
Screen Frame flange type, L type (bolt insert type), adhesive glue type etc.
Mesh Cleaning Method bouncing balls, ultrasonic deblinding system, rotary brush system etc.
Diameter 400mm, 600mm, 800mm, 900mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm etc.
Material carbon steel, contact parts stainless steel 304/316L, full stainless steel etc.
Function grading, solid-separation, remove the impurity, de-water etc.
Movement three dimensional vibration motion
Damping Spring carbon steel spring, stainless steel spring, air spring, rubber spring etc.
Motor one unit of verticle vibrating motor,
Motor Brand China Made, OLI-WOLONG etc.
Optional quick release clamp, magnetic guard, discharge gate, glass viewing port etc.
Attention people must remove the red transportation support before operation !!!



Working Principle of Classical High Precision Rotary Vibrating Screen For Epoxy Powder Coating:

   The gyro screen machine is a high precision fine powder screening machine, with low noise and high efficiency. It takes only 3~5 minutes to quickly change the screen. This rotary vibro screen is made of an upright motor as the excitation source. The upper and lower ends of the motor are equipped with eccentric hammer. The rotary motion of the motor is transformed into horizontal, vertical and inclined tridimensional motion, which is then transmitted to the screen surface.By adjusting the phase angle of upper and lower ends, the movement track of materials on the screen surface can be changed. Materials can be fine screening, probability screening etc.

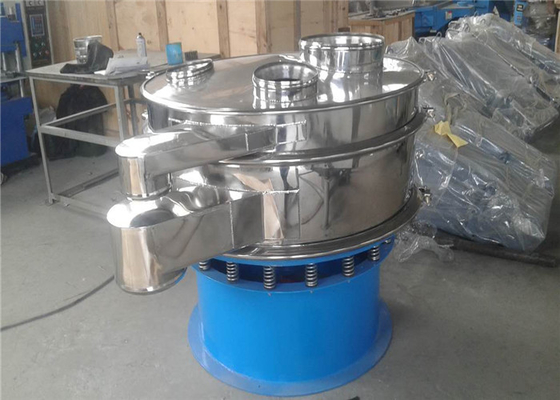

Classical High Precision Rotary Vibrating Screen For Epoxy Powder Coating 1



Technical Parameters of Classical High Precision Rotary Vibrating Screen For Epoxy Powder Coating:

Model Power Screen Diameter Effective Screening Area (m2) Layers of Screen
AY-400 0.18 KW 350mm 0.0962 1~3
AY-600 0.25 KW 550mm 0.2375 1~3
AY-800 0.55 KW 750mm 0.4416 1~3
AY-1000 0.75 KW 920mm 0.6644 1~3
AY-1200 1.1 KW 1120mm 0.9847 1~3
AY-1500 1.5 KW 1420mm 1.5829 1~3
AY-1800 2.2 KW 1720mm 2.3223 1~3
AY-2000 3.0 KW 1920mm 2.89 1~3



Application of Classical High Precision Rotary Vibrating Screen For Epoxy Powder Coating:

1. Pharmaceutical industry: Chinese medicine liquid, western medicine powder, pharmaceutical intermediates, medical accessories, traditional Chinese medicine powder, western medicine liquid etc.
2. Chemical industry: paint, resin powder, PVC resin powder, citric acid, polyethylene powder, washing powder etc.

3. Food industry: flour, milk powder, dextrin, drinks, fruit juice, sugar, soy sauce, starch, fish meal, rice flour, vitamins, spices, pineapple juice, yeast mixture etc.
4. Ceramic abrasive metallurgical industry: quartz, alumina, artificial black aluminum, aluminum silver paste, slurry, kaolin, graphite, silicon carbide, spray soil particles, emery, iron powder, titanium dioxide, electrolytic copper powder etc.



Matters Need Attention For Classical High Precision Rotary Vibrating Screen For Epoxy Powder Coating:

1. When feeding materials, pay attention to try the best to ensure the uniform feeding.
2. When the material through down, keeping no big impact to damage the screen.

3. Once the machine on operation, vibration part shall not be connected or contact with any object.
4. Before operation and power off, there should no be any material on screen surface.
5. Ensure vibration motor maintenance regularly.

6. If there is any abnormal sound in the operation, the machine should be shutdown immediately and to check.



Classical High Precision Rotary Vibrating Screen For Epoxy Powder Coating 2
