|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for small size|
|Delivery Time:||20~30 workdays after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||10 sets per month|
|Other Names:||Linear Vibrating Sieve, Rectangular Separator, Horizonal Vibrating Screen Etc.||Characteristics:||Large Capacity, Low Noise, Multi-deck Screening, Easy To Clean And Install Etc.|
|Motion:||Linear Motion||Power Source:||Double Vibrating Motors|
|Screen Slope Angle:||Inclination Angle 0°~7°||Screen Frame:||Wooden Frame, Carbon Steel Frame, Stainless Steel Frame Etc.|
|Mesh Deblinding System:||Ultrasonic Deblinding System, Bouncing Balls Etc.||Application:||Fodder, Plastic Particle, Chemical Fertilizer, Limestone, Tea, Lysine, Urea Etc.|
linear motion vibrating screen,
vibratory screening equipment

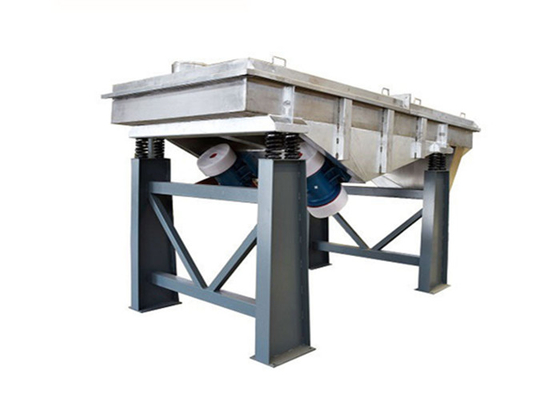

Low Noise Ultrasonic Linear Vibrating Screen Equipment For Fodder Feeding Stuff
Introduction of Linear Vibrating Screen Machine for Fodder Feeding Stuff:
The Linear Vibrating Screen Machine for Fodder Feeding Stuff is a kind of multi-layer fine screening machinery with greater capacity. It could support 7 layers of screen to use at most. Any dry material with a diameter of 0.074 mm~20 mm could be handled. The maximum granule diameter should be less than 30 mm. It is widely used in quartz sand, limestone, dolomite milling production line. It provides a larger capacity for micro powder screening
This linear vibrating screen machine can also be called linear vibrating sieve, rectangular separator, inclined vibrating screen, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.
Working Principle of Linear Vibrating Screen Machine for Fodder Feeding Stuff:
The linear vibrating sieve machine uses the vibration motor installed at the bottom of it as vibration source. When working, the two motors spin in opposite directions, the eccentric blocks at the ends of motor produce vibration force. Under the action of vibration force, the screen box which supported on the four compression spring produces a continuous linear vibration. In the process of the movement, the materials do the projectile motion and keep going in a straight line at the same time. The materials enter into the feed port, go through the multi-layer screen, then different size of materials was separated out from different outlet.
Structure of Linear Vibrating Screen Machine for Fodder Feeding Stuff:
The linear vibrating screen is composed of two vibration motors, a sieve box, a screen mesh, a vibration absorbing body and a vibration damping device.
1. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
Important Information About Linear Vibrating Screen Machine for Fodder Feeding Stuff:
|Other Names||linear vibrating sieve, rectangular separator, inclined vibrating screen, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.|
|Structural Composition||screen box, screen, vibration motor, motor base, damping spring, support etc.|
|Vibrating Motor||two sets of horizontal vibrating motors, synchronous reverse rotation|
|Applicable Material||suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7%|
|Screen Surface||horizontal or inclined (0°~7°)|
|Layers of Screen||1~6 layers of screen (The more layers can be customized according to the actual situation)|
|Screen Frame||wooden screen frame, carbon steel screen frame, stainless steel screen frame etc.|
|Mesh Cleaning Method||bouncing balls, ultrasonic system etc.|
|Material||carbon steel, stainless steel 304/316L, titanium material etc.|
|Screen Size||screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc.|
|Application||plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff, refractory material etc.|
Features of Linear Vibrating Screen Machine for Fodder Feeding Stuff:
1. vibration develop in the horizontal and in the vertical plane and can be settled in both directions;
2. high screening efficiency both with liquid and solid products;
3. vibrating motor design allows to adjust easily the counterweight and modify the vibration to find the best way to sieve a product (for gentle screening, long residence times, high throughputs or difficult-to-screen products);
4. vibration is activated by one or two vibrating motors with adjustable out-of-balance force;
5. rectangular separators are provided with high quality suspension that virtually eliminates transmitted vibrations;
6. screens are easy and fast to change and can be equipped with rubber balls cleaning system;
7. built on customer request with carbon steel, stainless steel 304, 316L;
8. vibrating motor are standard and provide reliable power.
Technical Parameters of Linear Vibrating Screen Machine for Fodder Feeding Stuff:
|Model||Nominal Size (mm)||Particle Size (mm)||Leaning Angle of Screen (°)||Amplitude (mm)||Layer||Power (Kw)|
Note: The data in the table are for reference only. Our company reserve the right to modify the above data.
Application of Linear Vibrating Screen Machine for Fodder Feeding Stuff:
The rectangular vibrating separator is widely used in metallurgy, building material, chemical industry, cement, ceramic, grain and food industry, It is used to classify different levels of materials. It also can be applied in flowing line to achieve automatic operation.
