| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AZ |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for small size |
| Delivery Time: | 20~30 workdays after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
| Other Names: | Rectangular Separator, Linear Vibrating Screen, Linear Vibrating Screener, Horizonal Vibrating Screen Etc. | Power Source: | Two Vibrating Motors |
|---|---|---|---|
| Motion: | Linear Vibration Motion | Material: | Carbon Steel, Stainless Steel 304, 316L, Titanium Material Etc. |
| Screen Slope Angle: | Inclination Angle 0°~7° | Screen Frame: | Wooden Frame, Carbon Steel Frame, Stainless Steel Frame Etc. |
| Mesh Deblinding System: | Bouncing Balls, Ultrasonic Deblinding System Etc. | Application: | Chemical Fertilizer, Plastic Particle, Limestone, Tea, Lysine, Urea Etc. |
| High Light: | linear motion vibrating screen,vibratory screening equipment |
||

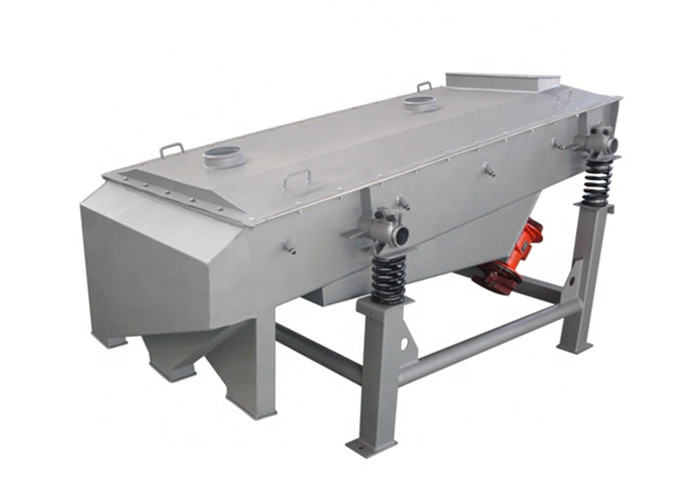

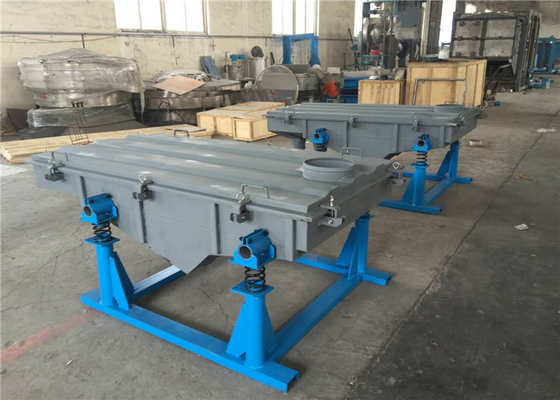

Industrial Rectangular Vibrating Screen Machine For Organic Fertilizer
Introduction of Industrial Rectangular Vibrating Screen Machine for Organic Fertilizer:
This Industrial Rectangular Vibrating Screen Machine for Organic Fertilizer is also well known as linear vibrating screen, rectangular separator, inclined vibrating screen, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.
The main functions for linear vibrating screen machine are grading, filtering and removing impurity.
Working Principle of Industrial Rectangular Vibrating Screen Machine for Organic Fertilizer:
The rectangular vibrating separator uses two vibration motors as the vibration source, which make the material jump in straight line on the screen surface, material evenly go into the feed port of linear vibrating screen from the feeding machine, generating multiple materials through the multilayer rectangular separator, and be discharged from each outlets.
Important Information About Industrial Rectangular Vibrating Screen Machine for Organic Fertilizer:
| Shape | rectangular shape |
| Motion | linear motion |
| Structural Composition | screen box, screen, vibration motor, motor base, damping spring, support etc. |
| Vibrating Motor | two sets of horizontal vibrating motors, synchronous reverse rotation |
| Applicable Material | suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7% |
| Screen Surface | horizontal or inclined (0°~7°) |
| Layers of Screen | 1~6 layers of screen (The higher layers can be customized according to the actual situation) |
| Screen Frame | wooden screen frame, carbon steel screen frame, stainless steel screen frame etc. |
| Mesh Cleaning Method | bouncing balls, ultrasonic system etc. |
| Material | carbon steel, stainless steel 304/316L, titanium material etc. |
| Screen Size | screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc. |
| Application | plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff, refractory material etc. |
Features of Industrial Rectangular Vibrating Screen Machine for Organic Fertilizer:
1.Low energy consumption, high efficiency,
2.Simple structure, easy to maintenance
3.Full closed structure, no dust flying
4. Sieving accuracy reach to 400 mesh, 6 layers
Technical Parameters of Industrial Rectangular Vibrating Screen Machine for Organic Fertilizer:
| Model | Nominal Size (mm) | Particle Size (mm) | Leaning Angle of Screen (°) | Amplitude (mm) | Layer | Power (Kw) |
| AZ-520 | 500*2000 | 0.074~10 | 0~7° | 4~10 | 1~6 | 2*(0.4~0.75) |
| AZ-525 | 500*2500 | 2*(0.4~0.75) | ||||
| AZ-530 | 500*3000 | 2*(0.4~0.75) | ||||
| AZ-1020 | 1000*2000 | 2*(0.4~0.75) | ||||
| AZ-1025 | 1000*2500 | 2*(0.4~1.1) | ||||
| AZ-1030 | 1000*3000 | 2*(1.1~1.5) | ||||
| AZ-1040 | 1000*4000 | 2*(1.1~1.5) | ||||
| AZ-1225 | 1200*2500 | 2*(1.1~1.5) | ||||
| AZ-1235 | 1200*3500 | 2*(1.1~2.2) | ||||
| AZ-1250 | 1200*5000 | 2*(1.1~2.2) | ||||
| AZ-1535 | 1500*3500 | 2*(1.1~2.2) | ||||
| AZ-1560 | 1500*6000 | 2*(2.2~3.7) | ||||
| AZ-1845 | 1800*4500 | 0.074~15 | 2*(2.2~3.7) | |||
| AZ-2050 | 2000*5000 | 2*(2.2~3.7) | ||||
| AZ-2060 | 2000*6000 | 2*(2.2~3.7) |
Note: The data in the table are for reference only. Our company reserve the right to modify the above data.
Structure of Industrial Rectangular Vibrating Screen Machine for Organic Fertilizer:
The linear vibrating screen is composed of two vibration motors, a sieve box, a screen mesh, a vibration absorbing body and a vibration damping device.
1. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
Application of Industrial Rectangular Vibrating Screen Machine for Organic Fertilizer:
The linear vibrating screen has a unique effect on powdery, granular materials selection and classification. It is widely used in chemical, pharmaceutical, food, metal, metallurgy, mining and other industries.
1. Food industry: soy, chestnut, small steamed bread, spices, sugar, starch, salt, rice flour, milk powder, soy milk, egg, soy sauce, fruit juice.
2. Chemical industry: fertilizers, urea, petroleum coke, resins, paints, cosmetics, paints etc.
3. Pharmaceutical industry: industrial chemicals, the powder particles pills, pellets etc.
4. Metals, mining metallurgy: aluminum powder, lead powder, copper powder, ore alloy powder, powder electrodes, manganese dioxide, copper powder, magnetic power, abrasives, refractory, kaolin, limestone, alumina, heavy carbon acid calcium, quartz sand.
5. Other industries: plastics, abrasives, activated carbon, carbon, building materials industry.
