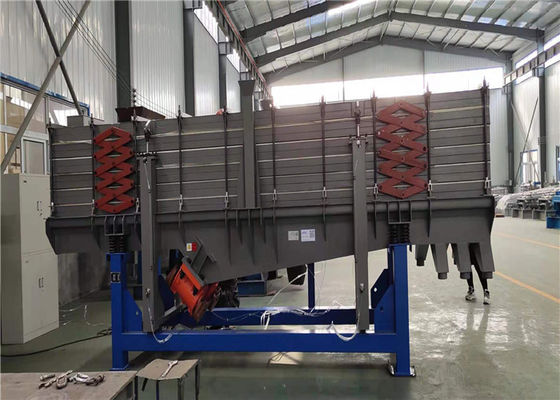

Single Deck Linear Vibrating Screen Horizontal Or Inclined

Single Deck Linear Vibrating Screen Horizontal Or Inclined
Single Deck Linear Vibrating Screen Horizontal Or Inclined Single Deck Linear Vibrating Screen Horizontal Or Inclined

Large Image :  Single Deck Linear Vibrating Screen Horizontal Or Inclined

Product Details:

Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AZ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for small size
Delivery Time: 20~30 workdays after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Detailed Product Description
Movement: Linear Vibration Movement Other Names: Linear Vibrating Screen, Linear Vibrating Screener, Rectangualr Separator, Horizonal Vibrating Screen Etc.
Application: Plastic Particle, Chemical Fertilizer, Limestone, Tea, Lysine, Urea Etc. Vibrating Motor: Double Vibrating Motors, Horizontal Arrangement
Screen Frame: Wooden Frame, Carbon Steel Frame, Stainless Steel Frame Etc. Screen Width*Length: 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*3000mm, 1200*3500mm, 1200*4000mm, 1500*3500mm Etc.
Mesh Cleaning Device: Rubber Balls, Ultrasonic Deblinding System Etc. Screen Slope Angle: Horizontal Or Inclined (inclination Angle 0°~7° )
High Light:

vibratory screening equipment


horizontal vibrating screen

Single Deck Linear Vibrating Screen Horizontal Or Inclined


Introduction of Linear Motion Vibrating Sieve for Ammonium Sulfate Fertilizer:

This Linear Motion Vibrating Sieve for Ammonium Sulfate Fertilizer is also widely known as the rectangular separator, linear vibrating screen, inclined vibrating screen, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.

  We produce both light and heavy-duty type linear vibrating screen which is suitable for anything, from screening off fine particles as product moves along a feeding line, to those specifically designed for separating out complex and irregular shapes using a special purpose screen.


Important Information About Linear Motion Vibrating Sieve for Ammonium Sulfate Fertilizer:

Shape rectangular shape
Motion linear motion
Structural Composition screen box, screen, vibration motor, motor base, damping spring, support etc.
Vibrating Motor two sets of horizontal vibrating motors, synchronous reverse rotation
Applicable Material suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7%
Screen Surface horizontal or inclined (0°~7°)
Layers of Screen 1~6 layers of screen (The higher layers can be customized according to the actual situation)
Screen Frame wooden screen frame, carbon steel screen frame, stainless steel screen frame etc.
Mesh Cleaning Method bouncing balls, ultrasonic system etc.
Material carbon steel, stainless steel 304/316L,  titanium material etc.
Screen Size screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc.
Application plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff, refractory material etc.


Features of Linear Motion Vibrating Sieve for Ammonium Sulfate Fertilizer:

1. Low maintenance cost and long service time:

All parts of the screen body are welded properly with excellent steel plates, and the overall rigidity is good, firm and reliable for very long time.

2. Flexible machine structures:
Different shapes and structures can be designed according to the production site.

3. Good sealing and minimal dust spillage:
Fully enclosed structure, automatic discharge lead to nearly zero rate of dust spillage.

4. Suitable for different screening sizes:
Change the screen spacing and inclination according to material size, permeability probability and productivity

5. High sieving precision:
The material has a long stroke on the screen surface, high screening precision and large processing capacity.

6. High capacity and Friendly working space:
With excellent structuer of machine and motors, the output is very high and working noise is low.

7. Easy to repace screen and parts:
Using a special grid structure design, the screens and parts can be easily changed and tighten.

8. Movable screening process:
At the same time of screening, the material has been transported over long distances.


Working Principle of Linear Motion Vibrating Sieve for Ammonium Sulfate Fertilizer:

  The rectangular vibrating separator use vibration motors as the vibration source. The material is rosed and moved in the straight at the same time. The material are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different gates.

Single Deck Linear Vibrating Screen Horizontal Or Inclined 0

Structure of Linear Motion Vibrating Sieve for Ammonium Sulfate Fertilizer:

  The linear vibrating screen is composed of two vibration motors, a sieve box, a screen mesh, a vibration absorbing body and a vibration damping device.

1. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.

3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.

4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.


Application of Linear Motion Vibrating Sieve for Ammonium Sulfate Fertilizer:

1. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

2. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive,refractory material, slurry, etc.

3. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.

4. Metallurgy industry: aluminum powder, lead powder, copper powder, ore, alloy powder ,electrode powder, manganese dioxide, electrolytic copper powder, electric magnetic material, polishing powder, refractory material, etc.

5. Chemical industry: resin pigment, medicine, grease, paint, palette, cosmetic, etc.

6. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

7. Mining industry: kaolin, alumina, carbon, quartz sand,titanium oxide, zinc oxide, etc.

8. Pollution treatment: waste oil, waste water,additives, activated carbon,etc.


Technical Parameters of Linear Motion Vibrating Sieve for Ammonium Sulfate Fertilizer:

Model Nominal Size (mm) Particle Size (mm) Leaning Angle of Screen (°) Amplitude (mm) Layer Power (Kw)
AZ-520 500*2000 0.074~10 0~7° 4~10 1~6 2*(0.4~0.75)
AZ-525 500*2500 2*(0.4~0.75)
AZ-530 500*3000 2*(0.4~0.75)
AZ-1020 1000*2000 2*(0.4~0.75)
AZ-1025 1000*2500 2*(0.4~1.1)
AZ-1030 1000*3000 2*(1.1~1.5)
AZ-1040 1000*4000 2*(1.1~1.5)
AZ-1225 1200*2500 2*(1.1~1.5)
AZ-1235 1200*3500 2*(1.1~2.2)
AZ-1250 1200*5000 2*(1.1~2.2)
AZ-1535 1500*3500 2*(1.1~2.2)
AZ-1560 1500*6000 2*(2.2~3.7)
AZ-1845 1800*4500 0.074~15 2*(2.2~3.7)
AZ-2050 2000*5000 2*(2.2~3.7)
AZ-2060 2000*6000 2*(2.2~3.7)

Note: The data in the table are for reference only. Our company reserve the right to modify the above data.


Single Deck Linear Vibrating Screen Horizontal Or Inclined 1Single Deck Linear Vibrating Screen Horizontal Or Inclined 2
