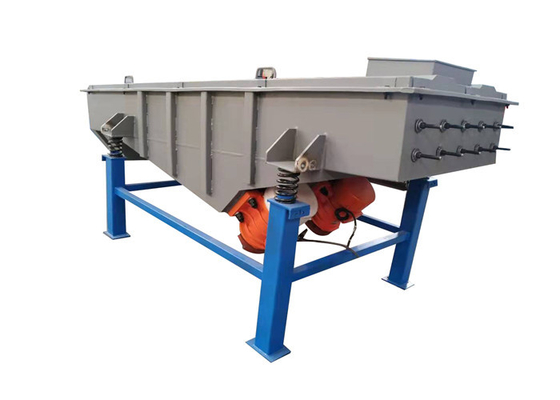

Urea Granules Linear Vibrating Screener Machine Large Capacity Easy To Install

Urea Granules Linear Vibrating Screener Machine Large Capacity Easy To Install

  • Urea Granules Linear Vibrating Screener Machine Large Capacity Easy To Install
  • Urea Granules Linear Vibrating Screener Machine Large Capacity Easy To Install
Urea Granules Linear Vibrating Screener Machine Large Capacity Easy To Install
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for small size
Delivery Time: 20~30 workdays after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Other Names: Linear Vibrating Screen, Linear Vibrating Screener, Rectangualr Separator, Horizonal Vibrating Screen Etc. Purpose: Suitable For The Rough Screening Of Non-viscous Material With <7% Water Content
Application: Limestone, Chemical Fertilizer, Plastic Particle, Tea, Lysine, Urea Etc. Motor: Two Vibrating Motors, Horizontal Arrangement
Motion: Linear Movement Screen Width*Length: 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*3000mm, 1200*3500mm, 1200*4000mm, 1500*3500mm Etc.
Screen Frame: Wooden Frame, Carbon Steel Frame, Stainless Steel Frame Etc. Mesh Deblinding System: Rubber Balls, Ultrasonic Deblinding System Etc.
Screen Surface: Horizontal Or Inclined (angle Of Inclination 0°~7° ) Material: Stainless Steel 304, 316L, Titanium Material, Carbon Steel Etc.
High Light:

vibratory screening equipment

,

horizontal vibrating screen

Urea Granules Linear Vibrating Screener Machine Large Capacity Easy To Install



Introduction of Classic Large Capacity Linear Vibrating Screener Machine for Urea Granules:

This Classic Large Capacity Linear Vibrating Screener Machine for Urea Granules can be also called linear vibrating screen, rectangular separator, inclined vibrating screen, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.

  The linear vibrating screen machine is a vibratory size sorting machine, electric vibrating motor drived, sizing/grading raw materials by different mesh size, and separating raw materials into different size fractions. It is mainly applicated to mineral, cereal,rubber recycle, chemical industries etc.

  The excellent horizontal motors are used as the power source to make the material be sifted on the screen while moving forward in a straight line. It can be equipped with single or multi-layer screens to achieve grading, impurity removal, powder removal, inspection, washing, dehydration and other purposes.



Features of Classic Large Capacity Linear Vibrating Screener Machine for Urea Granules:

1. Simple structure, easy to install and maintain.
2. Can be used for single-layer, multi-layers screening with long life.
3. Good sealing without dust flying.
4. Low consumption with high yield and low cost.
5. Sieve body parts adopt steel plates and sectional material welded together (part of the body for bolt connection) the overall good stiffness, strong and reliable.
6. Material auto discharge, be able to continuous operation.



Important Information About Classic Large Capacity Linear Vibrating Screener Machine for Urea Granules​​​:

Shape rectangular shape
Motion linear motion
Structural Composition screen box, screen, vibration motor, motor base, damping spring, support etc.
Vibrating Motor two sets of horizontal vibrating motors, synchronous reverse rotation
Applicable Material suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7%
Screen Surface horizontal or inclined (0°~7°)
Layers of Screen 1~6 layers of screen (The higher layers can be customized according to the actual situation)
Screen Frame wooden screen frame, carbon steel screen frame, stainless steel screen frame
Mesh Cleaning Method bouncing balls, ultrasonic system etc.
Material carbon steel, stainless steel 304/316L,  titanium material etc.
Screen Size screen width*length 500*200mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc.
Application plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff, refractory material etc.



Structure of Classic Large Capacity Linear Vibrating Screener Machine for Urea Granules​​​:

  The linear vibrating screen is composed of two vibration motors, a sieve box, a screen mesh, a vibration absorbing body and a vibration damping device.

1. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.

3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.

4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.



Working Principle of Classic Large Capacity Linear Vibrating Screener Machine for Urea Granules:

  The rectangular vibrating screen use vibration motor as vibration source, the material is rosed and moved in the straight at the same time. The material are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different gates.

Urea Granules Linear Vibrating Screener Machine Large Capacity Easy To Install 0

Application of Classic Large Capacity Linear Vibrating Screener Machine for Urea Granules:

  Our classic linear vibrating screener can be used in powder, granular materials selection and classification, widely used in plastics, abrasives, chemicals, pharmaceuticals, building materials, food, carbon, fertilizer and other industries.
1. Food Industries: sugar powder, monosodium, salt, starch, spices, seasonings, bread crumbs, beans powder, animal feed etc.
2. Grinding Material and Ceramic Industries: alumina, quartz, slurry, carborundum etc.

3. Chemical Industries: fertilizer, detergent powder, talcum powder, dyestuff, rubber, resin, pigment, cosmetic, coatings, PVC powder, CPE powder etc.
4. Metal, Metallurgy and Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate etc.



Technical Parameters of Classic Large Capacity Linear Vibrating Screener Machine for Urea Granules:

Model Nominal Size (mm) Particle Size (mm) Leaning Angle of Screen (°) Amplitude (mm) Layer Power (Kw)
AZ-520 500*2000 0.074~10 0~7° 4~10 1~6 2*(0.4~0.75)
AZ-525 500*2500 2*(0.4~0.75)
AZ-530 500*3000 2*(0.4~0.75)
AZ-1020 1000*2000 2*(0.4~0.75)
AZ-1025 1000*2500 2*(0.4~1.1)
AZ-1030 1000*3000 2*(1.1~1.5)
AZ-1040 1000*4000 2*(1.1~1.5)
AZ-1225 1200*2500 2*(1.1~1.5)
AZ-1235 1200*3500 2*(1.1~2.2)
AZ-1250 1200*5000 2*(1.1~2.2)
AZ-1535 1500*3500 2*(1.1~2.2)
AZ-1560 1500*6000 2*(2.2~3.7)
AZ-1845 1800*4500 0.074~15 2*(2.2~3.7)
AZ-2050 2000*5000 2*(2.2~3.7)
AZ-2060 2000*6000 2*(2.2~3.7)

Note: The data in the table are for reference only. Our company reserve the right to modify the above data.
