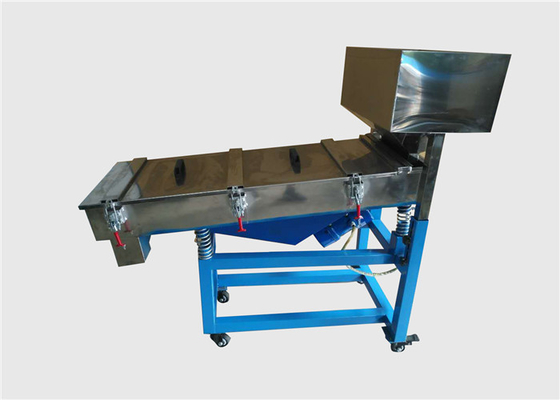

Horizontal Vibratory Screening Equipment Linear Motion For Plastic Particles

Horizontal Vibratory Screening Equipment Linear Motion For Plastic Particles

  • Horizontal Vibratory Screening Equipment Linear Motion For Plastic Particles
  • Horizontal Vibratory Screening Equipment Linear Motion For Plastic Particles
Horizontal Vibratory Screening Equipment Linear Motion For Plastic Particles
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for small size
Delivery Time: 20~30 workdays after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Purpose: Suitable For The Rough Screening Of Non-viscous Material With <7% Water Content Alternative Names: Rectangualr Separator, Horizonal Vibrating Screen, Linear Vibrating Screen Etc.
Motion: Linear Motion Motor: Double Horizontal Vibrating Motors
Screen Dimensions: Screen Width*length 500*200mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*3000mm, 1200*3500mm, 1200*4000mm, 1500*3500mm Etc. Mesh Size: 200 Mesh~10mm
Material: Carbon Steel, Stainless Steel 304, 316L, Titanium Material Etc. Screen Surface Angle: 0°~7°
Screen Frame: Wooden Frame, Carbon Steel Frame, Stainless Steel Frame Etc. Mesh Deblinding System: Bouncing Rubber Balls, Ultrasonic System Etc.
High Light:

vibratory screening equipment

,

horizontal vibrating screen

Horizontal Vibratory Screening Equipment Linear Motion For Plastic Particles



Introduction of High-efficiency Linear Motion Vibrating Screens For Plastic Particles​​:

The high-efficiency linear motion vibrating screens for plastic particles is an efficient new screening equipment widely used in mining, coal, metallurgy, building materials, refractory materials, light industry, chemical industry etc.

   It is also known as the linear vibrating screen, rectangular separator, inclined vibrating screen, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.



Important Information About High-efficiency Linear Motion Vibrating Screens For Plastic Particles:

Shape rectangular shape
Structural Composition screen box, screen, vibration motor, motor base, damping spring, support etc.
Vibrating Motor two sets of horizontal vibrating motors, synchronous reverse rotation
Applicable Material suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7%
Screen Surface horizontal or inclined (0°~7°)
Layers of Screen 1~6 layers of screen (The higher layers can be customized according to the actual situation)
Screen Frame wooden screen frame, carbon steel screen frame, stainless steel screen frame
Mesh Cleaning Method bouncing balls, ultrasonic system etc.
Material carbon steel, stainless steel 304/316L,  titanium material etc.
Screen Size screen width*length 500*200mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc.



Features of High-efficiency Linear Motion Vibrating Screens For Plastic Particles:

1. Multi layers structure is optional for multi grades screening.
2. Low energy consumption, high efficiency.
3. Fully sealed structure is optional, no dust spillover.
4. Simple structre, easy to maintain.



Technical Parameters of High-efficiency Linear Motion Vibrating Screens For Plastic Particles:

The following table shows the detailed data of different models of linear vibratory screen equipment for your reference.

Model Nominal Size (mm) Particle Size (mm) Leaning Angle of Screen(°) Amplitude (mm) Layer Power (Kw)
AZ-520 500*2000 0.074~10 0~7° 4~10 1~6 2*(0.4~0.75)
AZ-525 500*2500 2*(0.4~0.75)
AZ-530 500*3000 2*(0.4~0.75)
AZ-1020 1000*2000 2*(0.4~0.75)
AZ-1025 1000*2500 2*(0.4~1.1)
AZ-1030 1000*3000 2*(1.1~1.5)
AZ-1040 1000*4000 2*(1.1~1.5)
AZ-1225 1200*2500 2*(1.1~1.5)
AZ-1235 1200*3500 2*(1.1~2.2)
AZ-1250 1200*5000 2*(1.1~2.2)
AZ-1535 1500*3500 2*(1.1~2.2)
AZ-1560 1500*6000 2*(2.2~3.7)
AZ-1845 1800*4500 0.074~15 2*(2.2~3.7)
AZ-2050 2000*5000 2*(2.2~3.7)
AZ-2060 2000*6000 2*(2.2~3.7)

Note: The data in the table are for reference only. Our company reserve the right to modify the above data.



Working Principle of High-efficiency Linear Motion Vibrating Screens For Plastic Particles:

Horizontal Vibratory Screening Equipment Linear Motion For Plastic Particles 0

  The material enters the feed port of the sieve machine uniformly from the feeder, and several grading products are produced through the multi-layer screens. Different grading materials are respectively discharged from the respective outlets.

  Our rectangular vibrating screen separator is a double vibration motor drive. The axis of two motors have an inclination angle with respect to the screen surface. When the two vibrating motors are synchronized and reversely operated, the exciting forces generated by the eccentric blocks cancel each other in a direction parallel to the motor axis, and are combined in a direction perpendicular to the motor axis. The motion trace of materials on the screen is a parabolic motion of the straight line forward. Under the combined force of the excitation force and the material self-gravity, the material is thrown up and jumped forward on the screen surface to linearly move, thereby achieving the purpose of screening and classifying the materials.



Structure of High-efficiency Linear Motion Vibrating Screens For Plastic Particles​​​:

  The linear vibrating screen is mainly composed of sieve box, sieve mesh, vibration motor, motor pedestal, damping spring and brackets.

1. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.

3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.

4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.



Application of High-efficiency Linear Motion Vibrating Screens For Plastic Particles:

1. Chemical Industries: fertilizer, detergent powder, talcum powder, dyestuff, rubber, resin, pigment, cosmetic, coatings, PVC powder, CPE powder etc.
2. Food Industries: sugar powder, monosodium, salt, starch, spices, seasonings, bread crumbs, beans powder, animal feed etc.
3. Grinding Material and Ceramic Industries: alumina, quartz, slurry, carborundum etc.
4. Metal, Metallurgy and Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate etc.



Horizontal Vibratory Screening Equipment Linear Motion For Plastic Particles 1Horizontal Vibratory Screening Equipment Linear Motion For Plastic Particles 2
