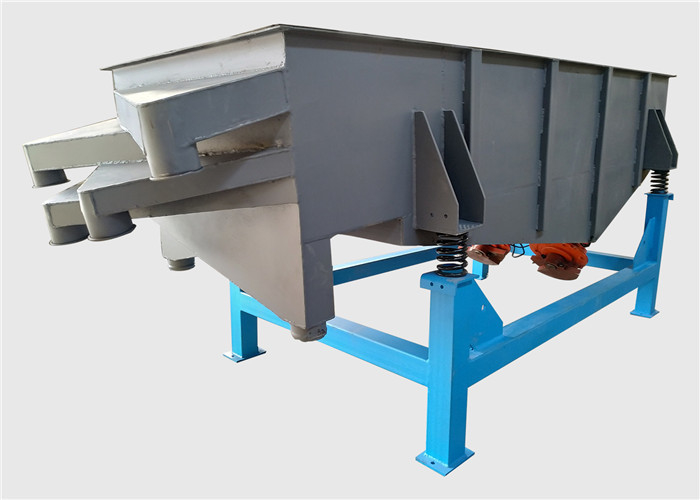

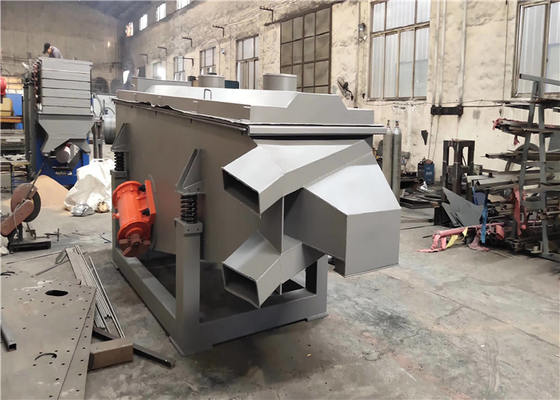

High Efficiency Linear Vibrating Screener Multi Layer For Abrasive Material

High Efficiency Linear Vibrating Screener Multi Layer For Abrasive Material

  • High Efficiency Linear Vibrating Screener Multi Layer For Abrasive Material
  • High Efficiency Linear Vibrating Screener Multi Layer For Abrasive Material
High Efficiency Linear Vibrating Screener Multi Layer For Abrasive Material
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for small size
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Purpose: Suitable For The Rough Screening Operation Of High Capacity Motion: Linear Movement
Drive Device: Two Horizontal Vibrating Motors Screen Size: Screen Width*length 500*200mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm Etc.
Screen Frame/Holder: Wooden Screen Frame, Carbon Steel Screen Frame, Stainless Steel Screen Frame Etc. Advantage: 1~8 Sieve Decks Available, Can Adjust Screen Surface Angle To Balance The Screening Accuracy And Production Capacity
Material: Carbon Steel, Stainless Steel 304/316L, Titanium Material Etc. Applicable Material: Suitable For Sieving 0.074mm~10mm Non-sticky Materials With Moisture Content Less Than 7%
High Light:

linear motion vibrating screen

,

vibratory screening equipment



High Efficiency Linear Vibrating Screener Multi Layer For Abrasive Material



Overview of High-efficiency Multi-layer Linear Vibrating Screener For Abrasive Material​:

The multi-layer linear vibrating screener for abrasive material  is also called rectangular separator, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.

  The multi-layer linear vibrating screener machine is an efficient new screening equipment, which is widely used in coal, metallurgy, mining, building materials industry. Two sets of horizontal vibration motors are as the power source, so that the screened material was tossed in the sieve, while forward in a straight line into the screening machine’s discharging outlet. It can be supplied of different sizes depending on capacity required. And can be supplied of multi-layer as requirements of screening aim. Inlets, outlets and legs can be customized to fit your installation requirements.



Important Information About the High-efficiency Multi-layer Linear Vibrating Screener For Abrasive Material​:

Shape rectangular shape
Structural Composition screen box, screen, vibration motor, motor base, damping spring, support etc.
Vibrating Motor two sets of horizontal vibrating motors, synchronous reverse rotation
Applicable Material suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7%
Layers of Screen 1~6 layers of screen
Screen Frame wooden screen frame, carbon steel screen frame, stainless steel screen frame
Mesh Cleaning Method bouncing balls, ultrasonic system etc.
Material carbon steel, stainless steel 304/316L,  titanium material etc.
Screen Size screen width*length 500*200mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc.



Working Principle of High-efficiency Multi-layer Linear Vibrating Screener For Abrasive Material​:

High Efficiency Linear Vibrating Screener Multi Layer For Abrasive Material 0

  The rectangular separator is driven by dual vibrating motors. When the two vibration motors do synchronized and reversed rotation, the vibration force generated by its eccentric block offset each other parallel to the direction of the motor spindle, superimposing as a resultant force perpendicular to the direction of the motor shaft, thus the movement trajectory of the screening machine is a straight line.

  The two motor shafts have an angle of dip in the vertical direction relative to the screen surface. Under the combined effect of vibration force and material self-gravity, materials in the screen surface do jumping movement, so as to achieve the purpose of screening and grading materials. It can be used to realize automatic operation in the assembly line.



Structure of High-efficiency Multi-layer Linear Vibrating Screener For Abrasive Material​:

Rectangular separator is mainly composed of screen box, sieve mesh, vibration motor, motor pedestal, damping spring and brackets.

1. Screen box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.

3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.

4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.



Features of High-efficiency Multi-layer Linear Vibrating Screener For Abrasive Material​:

1. Simple structure, large screening capacity.
2. Sealed structure, no dust flying.
3. Single layer or multi-layer are both available, can be installed 7 layers at most.
4. Bounce balls could prevent the mesh from be blocked through jumping from up to down.
5. Robust construction for improved fatigue life.
6. Manufactured in standard models or as per customer requirement.



Application of High-efficiency Multi-layer Linear Vibrating Screener For Abrasive Material​:

  This sieving machine is suitable for screening materials which are between 0.74mm and 10mm, water content less than 7%, and no sticky.

It is widely used in chemical industry, food, plastic, medicine, metallurgy, glass, building materials, grain, fertilizer, abrasive, ceramics and other industries, for dry powder or granular material screening.



Technical Parameters of High-efficiency Multi-layer Linear Vibrating Screener For Abrasive Material​:

Model Nominal Size (mm) Particle Size (mm) Leaning Angle of Screen(°) Amplitude (mm) Layer Power (Kw)
AZ-520 500*2000 0.074~10 0~7° 4~10 1~6 2*(0.4~0.75)
AZ-525 500*2500 2*(0.4~0.75)
AZ-530 500*3000 2*(0.4~0.75)
AZ-1020 1000*2000 2*(0.4~0.75)
AZ-1025 1000*2500 2*(0.4~1.1)
AZ-1030 1000*3000 2*(1.1~1.5)
AZ-1040 1000*4000 2*(1.1~1.5)
AZ-1225 1200*2500 2*(1.1~1.5)
AZ-1235 1200*3500 2*(1.1~2.2)
AZ-1250 1200*5000 2*(1.1~2.2)
AZ-1535 1500*3500 2*(1.1~2.2)
AZ-1560 1500*6000 2*(2.2~3.7)
AZ-1845 1800*4500 0.074~15 2*(2.2~3.7)
AZ-2050 2000*5000 2*(2.2~3.7)
AZ-2060 2000*6000 2*(2.2~3.7)



High Efficiency Linear Vibrating Screener Multi Layer For Abrasive Material 1High Efficiency Linear Vibrating Screener Multi Layer For Abrasive Material 2

                   Plastic Grain Separator                                Washing Powder Separator

High Efficiency Linear Vibrating Screener Multi Layer For Abrasive Material 3High Efficiency Linear Vibrating Screener Multi Layer For Abrasive Material 4

                        Single Layer                                                              Multi-layer

High Efficiency Linear Vibrating Screener Multi Layer For Abrasive Material 5High Efficiency Linear Vibrating Screener Multi Layer For Abrasive Material 6

                                                         New Type Spring Separator
