|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||10 sets per month|
|Features:||Compact Design, Lower Height, Large Capacity, Fast Screen Replacement Etc.||Other Names:||Compact Sieve, Safety Screeners, Control Sieves, Low-profile Vibrating Sieve, Low Profile Separator, Inline Vibrating Screen, Flo-thru Sifter, Flow-thru Separator Etc.|
|Material:||Sanitary Stainless Steel||Purpose:||Suitable For Remove Oversized Materials Rapidly From Powders Or Liquids|
|Machine Diameter:||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm Etc.||Layers Of Screen:||1~2 Layers Of Screen|
|Driving Device:||Single Vibrating Motor Or Dual Vibrating Motors||Application:||Milk Powder, Flour, Starch, Washing Powder, Metal Powder Or Granule, Additive, Chemicals Etc.|
400mm Circular Vibrating Screen,
600mm Circular Vibrating Screen,
Milk multi deck vibrating screen
High Performance Vibro Screen Machine , Whole Milk Powder Circular Vibrating Screen
Product Introduction of Flow-thru Low-profile Circular Vibro Screen Machine for Whole Milk Powder:
The flow-thru low-profile circular vibro screen machine for whole milk powder is also called compact sieve, flow-thru separator, flo-thru sifter, safety screeners, control sieves, low-profile vibrating sieve, low profile separator, inline vibrating screen etc.
The low profile separator offers high capacities of wet or dry scalping in a low headroom design. These low profile separators fit neatly into production lines, providing considerable screening capacity without requiring excessive headroom.
The direct discharge vibrating screen is a separating machine with high precision for fine powder or granular. It is suitable for dry, wet and various geometric materials. High performance, low noise, fully enclosed structure, no dust, good continuous separation of powder materials to meet a variety of needs.
Working Principle of Flow-thru Low-profile Circular Vibro Screen Machine for Whole Milk Powder:
The low profile flow-thru separator uses vertical vibration motor as excitation source. This motor is equipped on both sides with an eccentric hammer which functions to transfer the rotation movement of motor to horizontal, vertical and inclined motions. And the hammer then delivers the motions to screen surface for sifting.
Technical Parameters of Flow-thru Low-profile Circular Vibro Screen Machine for Whole Milk Powder:
Standard Type: AX-400, 600, 800, 1000, 1300, 1500
Portable Type: AXS-400, 600, 800, 1000, 1300, 1500
Easy Unpick and Wash Type: AXSS-400, 600, 800, 1000, 1300, 1500
Straight Jump Type: AXT-400, 600, 800, 1000, 1300, 1500
Note: the data above are for reference only, and our company reserves the right to modify the data.
Some Important Information About Flow-thru Low-profile Circular Vibro Screen Machine for Whole Milk Powder You May Care:
|Alternative Name||flow-thru separator, compact sieve, check screening machine, safety screener, control sieve, inline vibrating sieve, flo-thru sifter etc.|
|Motor||single vibrating motor, dual vibrating motors|
|Height||can be made as low as 300mm|
|Mesh Debling System||ultrasonic deblinding system, bouncing balls, rotary brush system etc.|
|Screen Decks||1~2 screen decks (multiple layers can be customized according to the specific situation)|
|Machine Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm etc.|
|Discharge Port||the discharge port for fine particles are at the bottom of the machine|
|Purpose||suitable for materials safety screening with less oversize particles|
|Machine Shape||round, rectangular|
|Damping Spring||steel spring, rubber spring|
|Application||flour, starch, milk powder, additives, instant noodles, noodles, snacks, solid drinks etc.|
|Voltage||three-phase/380V, 415V, 440V etc.|
Characteristics of Flow-thru Low-profile Circular Vibro Screen Machine for Whole Milk Powder:
1. Compact structure, low occupancy height (can be as low as 300mm)
2. Material flow adopts direct-current design.The product is discharged directly from the bottom of the sieve machine, easy to connect with the production line.
3. It is used for the high production capacity of coarse screening, very suitable for the dry materials security screening with less large particles.
4. Small and light.
Application of Flow-thru Low-profile Circular Vibro Screen Machine for Whole Milk Powder:
It is widely applied in pharmaceutical, foodstuff and other industries.
1. Food industry: sugar, gourmet powder, salt, fruit juice, starch, milk powder, food, soya-bean milk, egg powder, rice, soy, fish meal, pineapple juice etc.
2. Metals, metallurgical mining: ore, alloy powder, electrode powder, aluminite powder, lead powder, copper powder, abrasive powder, refraclory materials, kaolin, lime, aluminium oxide, quartz sand ect.
3. Chemical industry: resin, coating, drug industry, cosmetic, oil, herbal powder ect.

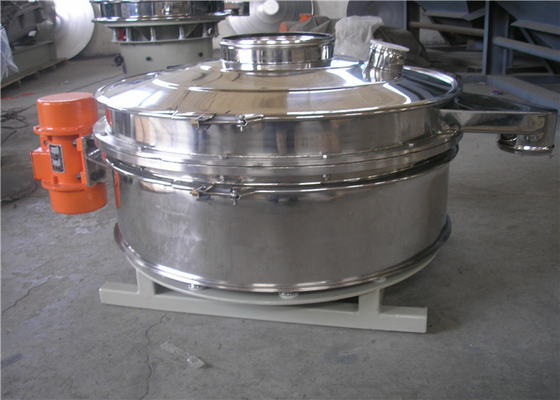

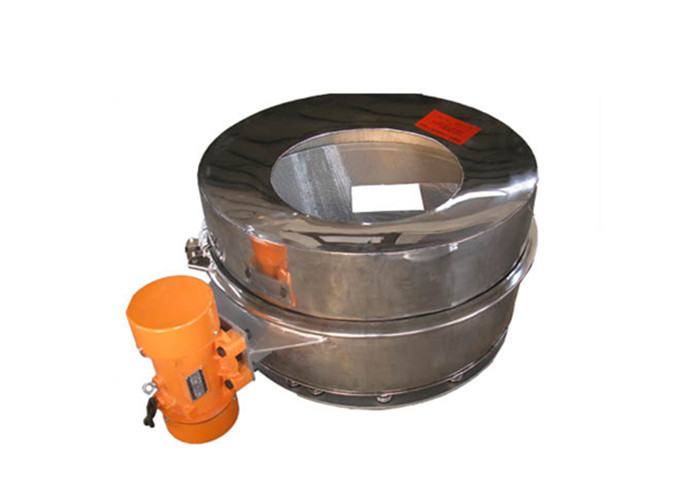

Some Photos for Flow-thru Low-profile Circular Vibro Screen Machine for Whole Milk Powder:
Contact Person: Ms. Magie
Alternative Name: flo-thru sifter, flow-thru separator, compact sieve, safety screeners, control sieves, low-profile vibrating sieve, low profile separator, inline vibrating screen etc.
Machine Diameter: 400mm~2100mm
Layers of Screen: 1~2 screen layers
Purpose: suitable for eliminating oversized materials rapidly from powders and liquids
Advantages: large capacity, short height, compact design, fast screen replacement etc.
Purpose: suitable for eliminating oversized material rapidly from powders and liquids
Machine Diameter: 600m~2100mm
Layers of Screen: 1~2 decks (multiple screen decks can be customized according to the specific situation)
