| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AX |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
| Features: | Compact Design, Large Capacity, Fast Screen Replacement Etc. | Alternative Name: | Flo-thru Sifter, Flow-thru Separator, Compact Sieve, Safety Screeners, Control Sieves, Low-profile Vibrating Sieve, Low Profile Separator, Inline Vibrating Screen Etc. |
|---|---|---|---|
| Machine Diameter: | 400mm~2100mm | Layers Of Screen: | 1~2 Screen Layers |
| Purpose: | Suitable For Eliminating Oversized Materials Rapidly From Powders And Liquids | Anti-Blinding Device: | Bouncing Balls, Rotary Brush System, Ultrasonic Mesh Cleaning Systems Etc. |
| Driving Device: | Single Or Dual Vibrating Motors | Application: | Milk Powder, Flour, Starch, Washing Powder, Metal Powder Or Granule, Additive, Chemicals Etc. |
| High Light: | 400mm Vibro Screen Machine,2100mm Vibro Screen Machine,2100mm vibro sieve machine |
||
Low Profile Vibro Screen Machine Round Vibrating Separator With Two Screen Layers
Product Introduction of Low-profile Flow-thru Round Vibrating Separator:
The low-profile flow-thru round vibrating separator is also known as the flow-thru separator, flo-thru sifter, compact sieve, safety screeners, control sieves, low-profile vibrating sieve, low profile separator, inline vibrating screen etc. It is a powerful high-efficient machine that compacts high capacity scalping for both wet and dry materials.
The flo-thru vibro screen sifter is offered in stainless steel or carbon steel in diameters from 400mm up to 2100mm.
The low profile vibratory sieve can handle large capacity of the big size and small size grading operation, its discharge capacity increases than conventional circular sieving machine for more than ten times. It applies to not only just fine material preliminary classification processing or terminal subtraction once liquid-solid heterogeneous body of solid separation recovery, but also can be used for liquid waste screen recovery operation.
The flow-thru separator is intended for installation above or below storage vessels, bulk bag and drum unloaders, bag dump stations, blenders/mixers and other process equipment, and can be installed with minimum alteration to existing layouts.
Characteristics of Low-profile Flow-thru Round Vibrating Separator:
1. Low manpower and maintenance costs.
2. Low headroom design that easily fits into existing product lines.
3. Very easy to operate.
4. Feeding Inlet and material discharge outlet in same centerline helps in reduction of process time by reducing the movement of material.
5. Inlets and Outlets can be customized to meet existing plant requirements.
6. Available with Clean in Place systems.
7. Quick mesh change system.
Working Principle of Low-profile Flow-thru Round Vibrating Separator:

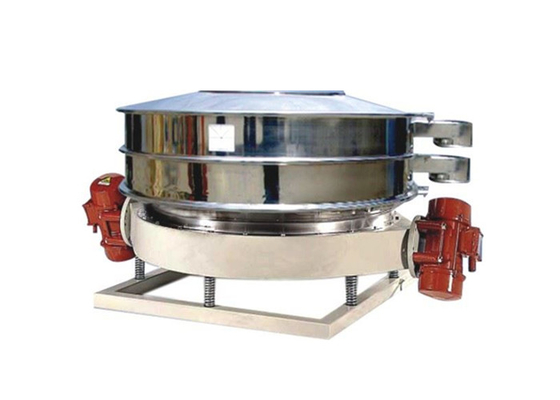

The low profile flow-thru design employs two unbalanced-weight gyratory motors mounted on opposing exterior sidewalls of the unit, instead of one motor positioned beneath the screening chamber, reducing minimum height requirements significantly.
And this design also aligns the top inlet above the bottom outlet, allowing on-size material to descend through the screen in a straight-through path at high rates. Oversize material is ejected through a spout at the periphery of the screen.
Technical Parameters of Low-profile Flow-thru Round Vibrating Separator:
| Model | 400 | 600 | 800 | 1000 | 1200 | 1300 | 1500 |
| Power | 0.1kw | 0.1kw | 0.1kw | 0.2kw | 0.2kw | 0.2kw | 0.4kw |
| Screen Diameter | 350mm | 550mm | 750mm | 920mm | 1005mm | 1120mm | 1420mm |
Note: the data above are for reference only, and our company reserves the right to modify the data.
Some Important Information You May Concern About Low-profile Flow-thru Round Vibrating Separator:
| Alternative Name | flow-thru separator, compact sieve, check screening machine, safety screener, control sieve, inline vibrating sieve, flo-thru sifter etc. |
| Motor | single vibrating motor, dual vibrating motors |
| Height | can be made as low as 300mm |
| Mesh Debling System | ultrasonic deblinding system, bouncing balls, rotary brush system etc. |
| Screen Decks | 1~2 screen decks (multiple layers can be customized according to the specific situation) |
| Machine Diameter | 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm etc. |
| Discharge Port | the discharge port for fine particles are at the bottom of the machine |
| Purpose | suitable for materials safety screening with less oversize particles |
| Machine Shape | round, rectangular |
| Damping Spring | steel spring, rubber spring |
| Application | flour, starch, milk powder, additives, instant noodles, noodles, snacks, solid drinks etc. |
| Voltage | three-phase/380V, 415V, 440V etc. |
Application of Low-profile Flow-thru Round Vibrating Separator:
1. Chemical industry: resin, coating, drug industry, cosmetic, oil, herbal powder ect.
2. Food industry: sugar, gourmet powder, salt, fruit juice, starch, milk powder, food, soya-bean milk, egg powder, rice, soy, fish meal, pineapple juice etc.
3. Metals, metallurgical mining: aluminite powder, lead powder, copper powder, ore, alloy powder, electrode powder, abrasive powder, refraclory materials, kaolin, lime, aluminium oxide, quartz sand ect.
Some Photos for Low-profile Flow-thru Round Vibrating Separator:
