Place of Origin: | China |
Brand Name: | AAREAL |
Certification: | ISO9001:2015 |
Model Number: | AX |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Fumigation-free plywood wooden case for export |
Delivery Time: | 20~30 work days after order confirmed |
Payment Terms: | T/T, L/C |
Supply Ability: | 10 sets per month |
Alternative Name: | Flow-thru Separator, Flo-thru Sifter, Compact Sieve, Safety Screeners, Control Sieves, Low-profile Vibrating Sieve, Low Profile Separator, Inline Vibrating Screen Etc. | Purpose: | Suitable For Eliminating Oversized Material Rapidly From Powders And Liquids |
---|---|---|---|
Advantages: | Large Capacity, Compact Design, Fast Screen Replacement Etc. | Machine Diameter: | 400mm~2100mm |
Anti-Blinding Device: | Bouncing Balls, Rotary Brush System, Ultrasonic Mesh Cleaning Systems Etc. | Damping Spring: | Steel Spring, Rubber Spring Etc. |
Driving Device: | Single Or Dual Vibrating Motors | Application: | Milk Powder, Flour, Starch, Washing Powder, Metal Powder Or Granule, Additive, Chemicals Etc. |
Highlight: | Thru Vibro Energy Separator,milk Vibro Energy Separator,Thru Rotary Vibratory Sifter |

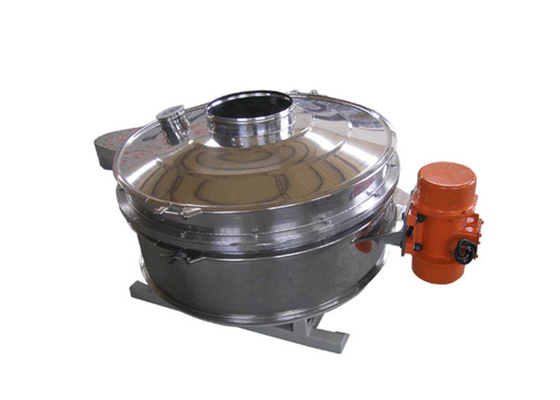

Flo Thru Vibro Energy Separator Rotary Vibratory Sifter For Skim Milk Powder
Product Introduction of Low Profile Flow-thru Circular Vibro Sifter Sieve Machine for Quartz Silica Sand:
The low-profile flo-thru rotary vibratory sifter for skim milk powder is also known as the flow-thru separator, flo-thru sifter, compact sieve, safety screeners, control sieves, low-profile vibrating sieve, low profile separator, inline vibrating screen etc. It is a powerful high-efficient machine that compacts high capacity scalping for both wet and dry materials.
The flo-thru vibro screen sifter is offered in stainless steel or carbon steel in diameters from 400mm up to 2100mm.
The flow-thru separator is intended for installation above or below storage vessels, bulk bag and drum unloaders, bag dump stations, blenders/mixers and other process equipment, and can be installed with minimum alteration to existing layouts.
Working Principle of Low Profile Flow-thru Circular Vibro Sifter Sieve Machine for Quartz Silica Sand:
The low profile flow-thru design employs two unbalanced-weight gyratory motors mounted on opposing exterior sidewalls of the unit, instead of one motor positioned beneath the screening chamber, reducing minimum height requirements significantly.
And this design also aligns the top inlet above the bottom outlet, allowing on-size material to descend through the screen in a straight-through path at high rates. Oversize material is ejected through a spout at the periphery of the screen.
Advantages of Low Profile Flow-thru Circular Vibro Sifter Sieve Machine for Quartz Silica Sand:
1. Low profile.
2. Large handling capacity
3. Low power consumption
4. Automatic discharge the oversize materials
5. Easy to replace the screen, simple operation
Some Important Information You May Concern About Low Profile Flow-thru Circular Vibro Sifter Sieve Machine for Quartz Silica Sand:
Alternative Name | flow-thru separator, compact sieve, check screening machine, safety screener, control sieve, inline vibrating sieve etc. |
Motor | single vibrating motor, dual vibrating motors (optional) |
Height | 500mm or less (such as 300mm) |
Mesh Debling System | ultrasonic deblinding system, bouncing balls, rotary brush etc. |
Layers of Screen | 1~2 layers of screens (multiple layers can be customized according to the specific situation) |
Diameter | 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm etc. |
Discharge Port | the discharge port for fine particles are at the bottom of the machine |
Purpose | suitable for materials safety screening with less oversize particles |
Machine Shape | round, rectangular |
Damping Spring | steel spring, rubber spring |
Application | flour, starch, milk powder, additives, instant noodles, noodles, snacks, solid drinks etc. |
Voltage | three-phase/380V, 415V, 440V etc. |
Technical Parameters of Low Profile Flow-thru Circular Vibro Sifter Sieve Machine for Quartz Silica Sand:
Model | 400 | 600 | 800 | 1000 | 1200 | 1300 | 1500 |
Power | 0.1kw | 0.1kw | 0.1kw | 0.2kw | 0.2kw | 0.2kw | 0.4kw |
Screen Diameter | 350mm | 550mm | 750mm | 920mm | 1005mm | 1120mm | 1420mm |
Note: the data above are for reference only, and our company reserves the right to modify the data.
Structure of Low Profile Flow-thru Circular Vibro Sifter Sieve Machine for Quartz Silica Sand (A Sample):
Application of Low Profile Flow-thru Circular Vibro Sifter Sieve Machine for Quartz Silica Sand:
1. Food industry: sugar powder, starch, table salt, rice, milk powder, egg powder, sauce, syrup.
2. Chemical industry: resin, pigment, industrial medicine, cosmetic, coatings, medicine powder, granules.
3. Medical industry: all kinds of medicine
4. Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon
5. Metallurgy, Mining industry: aluminum powder, copper powder, ore alloy powder, welding rod powder.
Some Photos for Low Profile Flow-thru Circular Vibro Sifter Sieve Machine for Quartz Silica Sand:
