|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||20 sets per month|
|Shape:||Rectangular, Round||Purpose:||Suitable For Materials Safety Screening With Less Oversize Particles|
|Layers Of Screen:||1~2 Layers (multiple Layers Can Be Customized According To The Specific Situation)||Material:||Contact Parts Stainless Steel 304, 316L Etc.|
|Damping Spring:||Steel Spring, Rubber Spring Etc.||Surface Treatment:||Spray Paint, Sand Blasting, Mirror Polishing, Wire Drawing Etc.|
|Driving Device:||Single Vibrating Motor, Dual Vibrating Motors||Advantages:||Compact Design, High Capacity, Low Height, Fast Screen Replacement Etc.|
SS304 Vibratory Screening Equipment,
SS316L Vibratory Screening Equipment,
vibratory sand screening machine

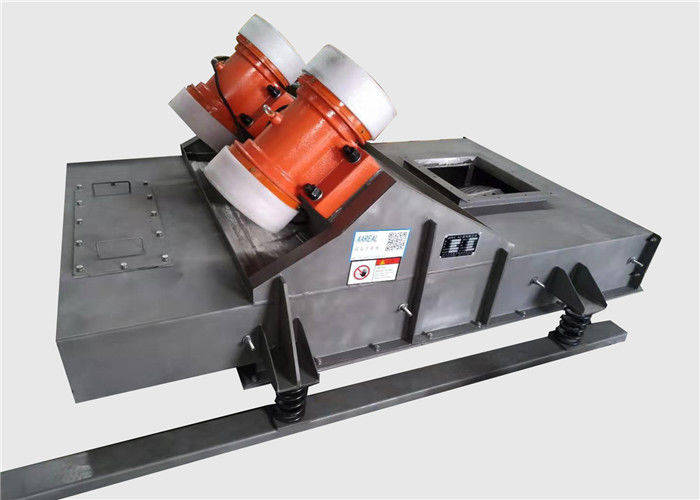

Rectangular Type Vibratory Screening Equipment Stainless Steel 304 316L
Product Introduction of Rectangular Type Low Profile Flow-thru Rotary Vibratory Screen Separator:
The low profile flow-thru rotary vibratory screen separator is a kind of new-type and high efficient screening machine. It can be made into Round or Rectangular shape. This machine offers high capacity wet or dry scalping in a compact, low head room design. Double motors mounted on opposite of body create the three-dimensional motion that allows maximum flow-thru of material. This sieve machine is ideally suited for prepackaging screening in many food and pharmaceutical applications, as well as for bulk bag unloading and screening of raw ingredients.
The inline vibro screen is also well known as the compact sieve, safety screeners, flow-thru separator, control sieves, low-profile vibrating sieve, low profile separator, inline vibrating screen etc.
Working Principle of Rectangular Type Low Profile Flow-thru Rotary Vibratory Screen Separator:
The flow-thru separator is a new high precision fine powder screening machine. It uses vertical vibration motor as excitation source. This motor is equipped on both sides with an eccentric hammer which functions to transfer the rotation movement of motor to horizontal, vertical and inclined motions. And the hammer then delivers the motions to screen surface for sifting.
Features of Rectangular Type Low Profile Flow-thru Rotary Vibratory Screen Separator:
1. Easy to operate, easy to change the screen cloth, easy to clean.
2. High efficiency, elegant design and durable, available for any powder and viscous liquid.
3. Seven popular sizes to fit any requirement, space-saving thru high volume.
4. Versatile for all meshes under 400#. Anti-blinding devices keep the screen clean during all operations.
5. All material contact parts are "stainless-steel" only.
6. Quick-change screen capability allows easy screen changes in less than 5 minutes.
7. We manufacture single deck up through five deck units (four screen maximum per unit).
8. Auto discharge gate available and facilitates impure and rough materials. "On-demand" system allows use at operator's request only.
Some Important Information About Rectangular Type Low Profile Flow-thru Rotary Vibratory Screen Separator You May Concern:
|Alternative Name||flow-thru separator, compact sieve, check screening machine, safety screener, control sieve, inline vibrating sieve etc.|
|Motor||single vibrating motor, dual vibrating motors (optional)|
|Height||can be as low as 300mm|
|Mesh Debling System||ultrasonic deblinding system, bouncing balls, rotary brush etc.|
|Layers of Screen||1~2 layers of screens (multiple layers can be customized according to the specific situation)|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm etc.|
|Discharge Port||the discharge port for fine particles are at the bottom of the machine|
|Purpose||suitable for materials safety screening with less oversize particles|
|Machine Shape||round, rectangular|
|Damping Spring||steel spring, rubber spring|
|Application||flour, starch, milk powder, additives, instant noodles, noodles, snacks, solid drinks etc.|
|Voltage||three-phase, 380V, 415V, 440V etc.|
Technical Parameters of Rectangular Type Low Profile Flow-thru Rotary Vibratory Screen Separator:
Note: the data above are for reference only, and our company reserves the right to modify the data.
Application of Rectangular Type Low Profile Flow-thru Rotary Vibratory Screen Separator:
1. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
2. Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
3. Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
4. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
5. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
6. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
Some Types for Low Profile Flow-thru Rotary Vibratory Screen Separator:
Contact Person: Ms. Magie
Alternative Name: flo-thru sifter, flow-thru separator, compact sieve, safety screeners, control sieves, low-profile vibrating sieve, low profile separator, inline vibrating screen etc.
Machine Diameter: 400mm~2100mm
Layers of Screen: 1~2 screen layers
Purpose: suitable for eliminating oversized materials rapidly from powders and liquids
Advantages: large capacity, short height, compact design, fast screen replacement etc.
Purpose: suitable for eliminating oversized material rapidly from powders and liquids
Machine Diameter: 600m~2100mm
Layers of Screen: 1~2 decks (multiple screen decks can be customized according to the specific situation)
