|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||20 sets per month|
|Purpose:||Suitable For Materials Safety Screening With Less Oversize Particles||Machine Diameter:||400mm~2100mm (bigger Size Can Be Customized)|
|Height:||Can Be As Low As 500mm (300mm Available)||Layers Of Screen:||1~2 Layers (multiple Layers Can Be Customized According To The Specific Situation)|
|Material:||Contact Parts Stainless Steel 304, 316L Etc.||Damping Spring:||Steel Spring, Rubber Spring Etc.|
|Driving Device:||Single Vibrating Motor, Dual Vibrating Motors||Voltage:||Three-phase, 380V, 415V, 440V Etc.|
|Optional:||Pneumatic Gate, Manual Gate, Ultrasonic System, Bouncing Balls, Rotary Brush Etc.||Advantages:||High Capacity, Compact Design, Low Height, Fast Screen Replacement Etc.|
Flour Vibro Screen Machine,
Rice Vibro Screen Machine,
flour inclined vibrating screen
Rice Flour Vibro Screen Machine Inclined Vibrating Screen Machine Low Height

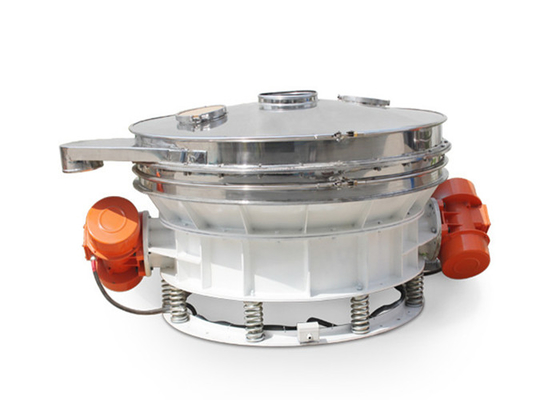

Product Introduction of Low Profile Flow-thru Inline Vibro Screen Machine for Rice Flour:
The low profile flow-thru inline vibro screen machine for rice flour is a kind of new-type,high efficient screening machine. It offers high capacity wet or dry scalping in a compact, low head room design. Double motors mounted on opposite of body create the 3-D motion that allows maximum flow-thru of material. This machine is ideally suited for prepackaging screening in many food and pharmaceutical applications, as well as for bulk bag unloading and screening of raw ingredients.
The inline vibro screen is also well known as the flow-thru separator, compact sieve, safety screeners, control sieves, low-profile vibrating sieve, low profile separator, inline vibrating screen etc.
Working Principle of Low Profile Flow-thru Inline Vibro Screen Machine for Rice Flour:
The low profile flow-thru vibrating separator uses vertical vibration motor as excitation source. This motor is equipped on both sides with an eccentric hammer which functions to transfer the rotation movement of motor to horizontal, vertical and inclined motions. And the hammer then delivers the motions to screen surface for sifting. At present, rotary sieve machine is widely applied in pharmaceutical, foodstuff and other industries.
Features of Low Profile Flow-thru Inline Vibro Screen Machine for Rice Flour:
1. Easy to operate, easy to change the screen cloth, easy to clean.
2. High efficiency, elegant design and durable, available for any powder and viscous liquid.
3. Seven popular sizes to fit any requirement, space-saving thru high volume.
4. Versatile for all meshes under 400#. Anti-blinding devices keep the screen clean during all operations.
5. All material contact parts are "stainless-steel" only.
6. Quick-change screen capability allows easy screen changes in less than 5 minutes.
7. We manufacture single deck up through five deck units (four screen maximum per unit).
8. Auto discharge gate available and facilitates impure and rough materials. "On-demand" system allows use at operator's request only.
Some Important Information About Low Profile Flow-thru Inline Vibro Screen Machine for Rice Flour You May Concern:
|Alternative Name||flow-thru separator, compact sieve, check screening machine, safety screener, control sieve, inline vibrating sieve etc.|
|Motor||single vibrating motor, dual vibrating motors (optional)|
|Height||500mm or less (such as 300mm)|
|Mesh Debling System||ultrasonic deblinding system, bouncing balls, rotary brush etc.|
|Layers of Screen||1~2 layers of screens (multiple layers can be customized according to the specific situation)|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm etc.|
|Discharge Port||the discharge port for fine particles are at the bottom of the machine|
|Purpose||suitable for materials safety screening with less oversize particles|
|Machine Shape||round, rectangular|
|Damping Spring||steel spring, rubber spring|
|Application||flour, starch, milk powder, additives, instant noodles, noodles, snacks, solid drinks etc.|
|Voltage||three-phase/380V, 415V, 440V etc.|
Structure of Low Profile Flow-thru Inline Vibro Screen Machine for Rice Flour:
Technical Parameters of Low Profile Flow-thru Inline Vibro Screen Machine for Rice Flour:
Note: the data above are for reference only, and our company reserves the right to modify the data.
Application of Low Profile Flow-thru Inline Vibro Screen Machine for Rice Flour:
1. Chemical industry: resin, coating, drug industry, cosmetic, oil, herbal powder ect.
2. Food industry: sugar, gourmet powder, salt, fruit juice, starch, milk powder, food, soya-bean milk, egg powder, rice, soy, fish meal, pineapple juice etc.
3. Metals, metallurgical mining: aluminite powder, lead powder, copper powder, ore, alloy powder, electrode powder, abrasive powder, refraclory materials, kaolin, lime, aluminium oxide, quartz sand ect.

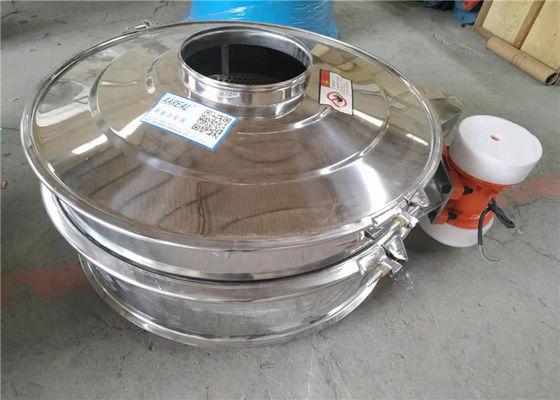

Some Production Site Photos for Low Profile Flow-thru Inline Vibro Screen Machine for Rice Flour:
Contact Person: Ms. Magie
Alternative Name: flo-thru sifter, flow-thru separator, compact sieve, safety screeners, control sieves, low-profile vibrating sieve, low profile separator, inline vibrating screen etc.
Machine Diameter: 400mm~2100mm
Layers of Screen: 1~2 screen layers
Purpose: suitable for eliminating oversized materials rapidly from powders and liquids
Advantages: large capacity, short height, compact design, fast screen replacement etc.
Purpose: suitable for eliminating oversized material rapidly from powders and liquids
Machine Diameter: 600m~2100mm
Layers of Screen: 1~2 decks (multiple screen decks can be customized according to the specific situation)
