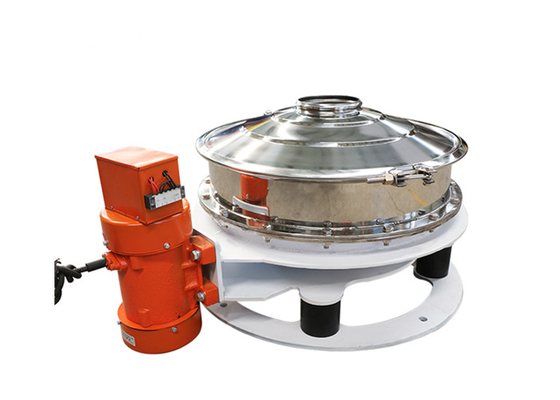

316L Vibro Screen Machine Low Profile Direct Discharge Industrial Vibrating Screen

316L Vibro Screen Machine Low Profile Direct Discharge Industrial Vibrating Screen

  • 316L Vibro Screen Machine Low Profile Direct Discharge Industrial Vibrating Screen
  • 316L Vibro Screen Machine Low Profile Direct Discharge Industrial Vibrating Screen
316L Vibro Screen Machine Low Profile Direct Discharge Industrial Vibrating Screen
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AX
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Purpose: Suitable For Materials Safety Screening With Less Oversize Particles Machine Diameter: 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm
Layers Of Screen: 1~2 Layers (multiple Layers Can Be Customized According To The Specific Situation) Damping Spring: Rubber Spring, Steel Spring Etc.
Driving Device: Single Vibrating Motor, Dual Vibrating Motors Voltage: Three-phase, 380V, 415V, 440V Etc.
Mesh Debling System: Bouncing Balls, Ultrasonic Mesh Cleaning Systems, Rotary Brush Etc. Material: Carbon Steel, Stainless Steel 304, 316L Etc.
Advantages: High Capacity, Compact Design, Low Height, Fast Screen Replacement Etc. Application: Flour, Milk Powder, Rice Flour, Instant Noodles, Starch Etc.
High Light:

SS316L Industrial Vibrating Screen

,

800mm Industrial Vibrating Screen

,

600mm Vibro Screen Machine

316L Vibro Screen Machine Low Profile Direct Discharge Industrial Vibrating Screen



Product Introduction of Low Profile Direct Discharge Vibrating Screen Machine:
The low profile direct discharge vibrating screen machine is is a powerful high-efficient machine that compacts high capacity scalping for both wet and dry materials. It is also called flow-thru separator, compact sieve, safety screeners, control sieves, low-profile vibrating sieve, low profile separator, inline vibrating screen etc.

  The inline vibro screen use two vibratory motors mounted on opposing exterior sidewalls of the unit, reducing minimum height requirements significantly. This inline vibro screen innovation also enables the bottom outlet to be located directly below the top inlet, allowing material to fall vertically through the screen at high rates. The low profile separator has a single vertically mounted motor to generate a sifting motion across the screen plane. The inline low profile vibro screen offers high capacities of wet or dry scalping in a low headroom design. Available from 600mm to 2100mm in diameter. This range of separators perfect for all processing industries and application like prepacking screening, bulk bag unloading and screening of raw ingredients.



Features of Low Profile Direct Discharge Vibrating Screen Machine​​:

1. Low installation cost.
2. Less plant area with higher outputs.
3. Less manpower as easy to operate.
4. Adjustable motor mounting angle.
5. Personalised inlets and outlets.
6. Motor force for maximizing screening efficiency and capacity.
7. Hassle-free cleaning and maintenance in place without disassembly.



Some Important Information You May Concern About Low Profile Direct Discharge Vibrating Screen Machine​​:

Alternative Name flow-thru separator, compact sieve, check screening machine, safety screener, control sieve, inline vibrating sieve etc.
Motor single vibrating motor, dual vibrating motors (optional)
Height 500mm or less (such as 300mm)
Mesh Debling System ultrasonic deblinding system, bouncing balls, rotary brush etc.
Layers of Screen 1~2 layers of screens (multiple layers can be customized according to the specific situation)
Diameter 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm etc.
Discharge Port the discharge port for fine particles are at the bottom of the machine
Purpose suitable for materials safety screening with less oversize particles
Machine Shape round, rectangular
Damping Spring steel spring, rubber spring
Application flour, starch, milk powder, additives, instant noodles, noodles, snacks, solid drinks etc.
Voltage three-phase/380V, 415V, 440V etc.



Working Principle of Low Profile Direct Discharge Vibrating Screen Machine​​:

  The low profile flow-thru vibrating separator uses vertical vibration motor as excitation source. This motor is equipped on both sides with an eccentric hammer which functions to transfer the rotation movement of motor to horizontal, vertical and inclined motions. And the hammer then delivers the motions to screen surface for sifting. At present, rotary sieve machine is widely applied in pharmaceutical, foodstuff and other industries.

316L Vibro Screen Machine Low Profile Direct Discharge Industrial Vibrating Screen 0

Structure of Low Profile Direct Discharge Vibrating Screen Machine​​:

316L Vibro Screen Machine Low Profile Direct Discharge Industrial Vibrating Screen 1

Technical Parameters of Low Profile Direct Discharge Vibrating Screen Machine​​:
316L Vibro Screen Machine Low Profile Direct Discharge Industrial Vibrating Screen 2

Model 400 600 800 1000 1200 1300 1500
Power 0.1kw 0.1kw 0.1kw 0.2kw 0.2kw 0.2kw 0.4kw
Screen Diameter 350mm 550mm 750mm 920mm 1005mm 1120mm 1420mm

Note: the data above are for reference only, and our company reserves the right to modify the data.



Some Types for Low Profile Direct Discharge Vibrating Screen Machine:

316L Vibro Screen Machine Low Profile Direct Discharge Industrial Vibrating Screen 3316L Vibro Screen Machine Low Profile Direct Discharge Industrial Vibrating Screen 4

Application of Low Profile Direct Discharge Vibrating Screen Machine​​​:

1. Chemical industry: resin powder, palette, washing powder, paint, soda and citric acid, etc.
2. Abrasive material and ceramic industry: alumina, quartz, welding rod powder, aluminum, alloy powder, etc.
3. Metallurgy and mining: Titanium oxide, zinc oxide, electromagnetism materials, metal materials, welding rod materials, etc.
4. Paper-Making Industries: coated slurry, exhaust liquid, paper making liquid, waste water reclamation, etc.
5. Food industry: wheat flour,sugar, salt, alkali, milk powder, soybean milk, yeast, juice, soy sauce, vinegar, etc.
