Product Details:
Payment & Shipping Terms:
|
| Features: | The Fine Material Outlet Is At The Bottom Of The Machine | Advantages: | High Capacity, Compact Design, Low Height, Fast Screen Replacement Etc. |
|---|---|---|---|
| Layers Of Screen: | Single Layer, 2 Layers, 3 Layers Etc. | Damping Spring: | Rubber Spring, Steel Spring |
| Driving Device: | Single Vibrating Motor, Dual Vibrating Motors | Machine Diameter: | 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm |
| Mesh Debling System: | Ultrasonic Mesh Cleaning Systems, Bouncing Balls | Application: | Rice Flour, Instant Noodles, Flour, Milk Powder, Starch Etc. |
| High Light: | flow thru vibro separator machine,Inline Vibro Screening Machine,Potato Starch Vibro Screen Machine |
||

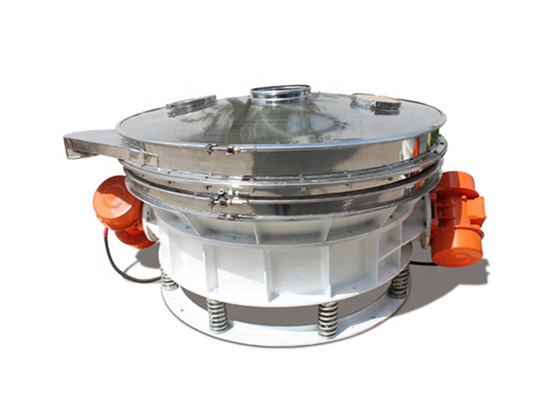

Potato Starch Vibro Screen Machine Inclined Vibrating Screen
Product Introduction of Flo-Thru Low-Profile Inline Vibro Screening Machine for Potato Starch:
The flo-thru low-profile inline vibro screening machine for potato starch is also called flow-thru separator, safety screeners, control sieves, low-profile vibrating sieve, low profile separator, inline vibrating screen etc. It is a powerful high-efficient machine that compacts high capacity scalping for both wet and dry materials.
The discharge vibrating screen is a multi-usage and new type of screening machine, divided into two kinds: single vibration source and dual vibration source. It is mainly used in the removing impurities and screening of powder in the process of production line.
Technical Parameters of Flo-Thru Low-Profile Inline Vibro Screening Machine for Potato Starch:
| Model | 400 | 600 | 800 | 1000 | 1200 | 1300 | 1500 |
| Power | 0.1kw | 0.1kw | 0.1kw | 0.2kw | 0.2kw | 0.2kw | 0.4kw |
| Screen Diameter | 350mm | 550mm | 750mm | 920mm | 1005mm | 1120mm | 1420mm |
Note: the data above are for reference only, and our company reserves the right to modify the data.
Working Principle of Flo-Thru Low-Profile Inline Vibro Screening Machine for Potato Starch:
This compact sieve adopt high-frequency vibration motor as the excitation source, the materials do three-dimensional rotary motion on the screen surface after into the system, flour and agglomeration fully dispersed, rapid through mesh directly to the lower silo. Foreign matter and impurities are separated and discharged to the slag discharge port, the machine play the role of “safety officer” on the production line.
Our low-profile vibrating control sieve can be used in the feed system of front production line of instant noodles, noodles, snacks, solid drinks etc., to separate the foreign matter from the raw materials (flour, starch, milk powder, additives etc.). Because it is in series with the system and automatically separates foreign matter, it is honored as the “safety officer” on the food production line. The flour sieve can replace the manual observation of the foreign matter and check-up action.
Features of Flo-Thru Low-Profile Inline Vibro Screening Machine for Potato Starch:
1. Low installation cost.
2. Less plant area with higher outputs.
3. Less manpower as easy to operate.
4. Adjustable motor mounting angle.
5. Personalised inlets and outlets.
6. Motor force for maximizing screening efficiency and capacity.
7. Hassle-free cleaning and maintenance in place without disassembly.
Some Important Information You May Concern About Flo-Thru Low-Profile Inline Vibro Screening Machine for Potato Starch:
| Alternative Name | flow-thru separator, compact sieve, check screening machine, safety screener, control sieve, inline vibrating sieve etc. |
| Motor | single vibrating motor, dual vibrating motors (optional) |
| Height | 500mm or less (such as 300mm) |
| Mesh Debling System | ultrasonic deblinding system, bouncing balls |
| Layers of Screen | 1~2 layers of screens |
| Diameter | 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm |
| Discharge Port | the discharge port for fine particles are at the bottom of the machine |
| Purpose | suitable for materials safety screening with less oversize particles |
| Machine Shape | round, rectangular |
| Damping Spring | steel spring, rubber spring |
| Application | flour, starch, milk powder, additives, instant noodles, noodles, snacks, solid drinks etc. |
| Voltage | three-phase/380V, 415V, 440V etc. |

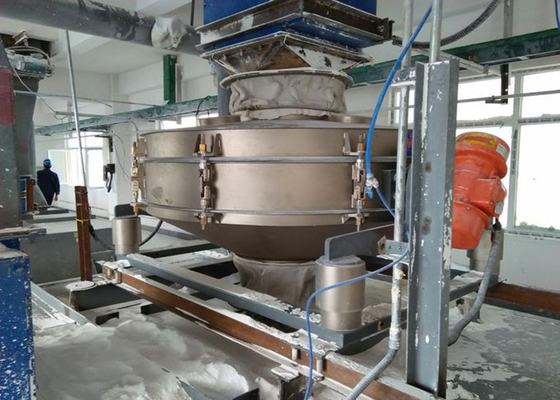

Application of Flo-Thru Low-Profile Inline Vibro Screening Machine for Potato Starch:
1. Safety screening for final products.
2. High temperature applications.
3. High capacity scalping applications.
4. Batch processes plant applications.
5. Pre-packing screening applications.
6. Accommodated into existing production lines.
7. Installation above storage tank or blenders or mixers.
Some Kinds of Flo-Thru Low-Profile Inline Vibro Screening Machine for Potato Starch:
