|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||10 sets per month|
|Features:||The Fine Material Outlet Is At The Bottom Of The Machine||Advantages:||Compact Design, Simple Cleaning, High Capacity, Fast Screen Replacement Etc.|
|Layers Of Screen:||1~2 Layers Of Screen||Machine Diameter:||600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm|
|Damping Spring:||Steel Spring, Rubber Spring (optional)||Driving Device:||1~2 Horizontal Vibrating Motors At The Side(s) Of The Machine|
|Mesh Debling System:||Ultrasonic Mesh Cleaning Systems, Bouncing Balls||Application:||Flour, Starch, Milk Powder, Additives Etc.|
Food Vibro Screen Separator,
Additives Vibro Screen Separator,
Additives vibro sieve machine

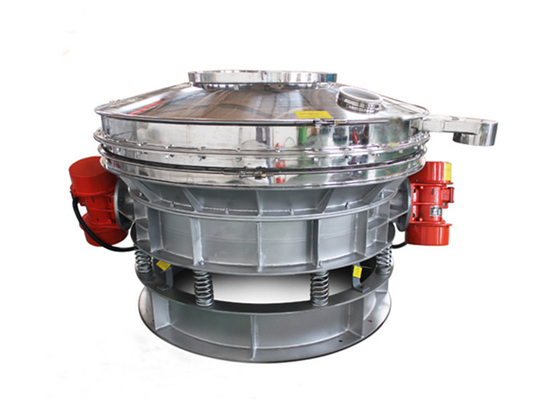

High Efficiency Vibro Screen Separator Round Vibrating Screen For Food Additives
Product Introduction of High Efficiency Flow-thru Rotary Vibrating Separator for Food Additives:
Our high efficiency low-profile flow-thru rotary vibrating separator for food additives is a powerful high-efficient machine that compacts high capacity scalping for both wet and dry materials.
The low profile flow-thru vibrating safety screeners commonly referred to as flow-thru separator, safety screeners, control sieves, low-profile vibrating sieve, low profile separator, inline screen etc.
The discharge vibrating screen is a multi-usage and new type of screening machine, divided into two kinds of single vibration source and dual vibration source, mainly used in the removing impurities and screening of powder in the process of production line.
Technical Parameters of High Efficiency Flow-thru Rotary Vibrating Separator for Food Additives:
Note: the data above are for reference only, and our company reserves the right to modify the data.
Some Important Information You May Concern About High Efficiency Flow-thru Rotary Vibrating Separator for Food Additives:
|Alternative Name||flow-thru separator, compact sieve, check screening machine, safety screener, control sieve, inline vibrating sieve etc.|
|Motor||single vibrating motor, dual vibrating motors (optional)|
|Height||500mm or less (such as 350mm)|
|Mesh Debling System||ultrasonic deblinding system, bouncing balls|
|Layers of Screen||1~2 layers of screens|
|Diameter||600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm|
|Discharge Port||the discharge port for fine particles are at the bottom of the machine|
|Purpose||suitable for materials safety screening with less oversize particles|
|Machine Shape||round, rectangular|
|Damping Spring||steel spring, rubber spring|
|Application||flour, starch, milk powder, additives, instant noodles, noodles, snacks, solid drinks etc.|
Optional Ultrasonic Deblinding System for High Efficiency Flow-thru Rotary Vibrating Separator for Food Additives:
The ultrasonic mesh cleaning systems leads to significant improvements of the production process. Experience has shown that especially fine particles in the lower µm range can hardly be screened without ultrasonic. Ultrasonic deblinding system will eliminate blinding and blockages of the mesh.
1. Extended cleaning intervals
2. Improved separation efficiency
3. Reduced dynamic stress
4. Increased screening throughput
5. Single and twin operation possible
Features of High Efficiency Flow-thru Rotary Vibrating Separator for Food Additives:
1. Using the dual motor to optimize and balance the structure, reasonable and durable design, simple structure, practical and beautiful.
2. The parts without health dead angle, easy to clean and disinfect, comply with the specification of food and pharmaceutical industry.
3. Large handling capacity, long service life, high screening efficiency, low energy consumption, all enclosed structure, low noise.
4. The materials are automatically discahrged, easy to the installation of assembly line equipment, small volume, east to move.
5. The screen body uses the bolt to connect, can be directly placed between the raw material drum and storage drum, high strength, save space.
6. Strong screening ability and wide using scope, some advantages is that other screening machine cannot achieve.
7. The upper discharging port can be 360 degree to adjust, occupy small space, can be single-layer or multi-layer to use.
Application of High Efficiency Flow-thru Rotary Vibrating Separator for Food Additives:
1. Chemical industry: resin powder, palette, washing powder, paint, soda and citric acid etc.
2. Metallurgy and mining: Titanium oxide, zinc oxide, electromagnetism materials, metal materials, welding rod materials etc.
3. Food industry: wheat flour,sugar, salt, alkali, milk powder, soybean milk, yeast, juice, soy sauce, vinegar etc.
4. Abrasive material and ceramic industry: alumina, quartz, welding rod powder, aluminum, alloy powder etc.
5. Paper-Making Industries: coated slurry, exhaust liquid, paper making liquid, waste water reclamation etc.
Working Principle of High Efficiency Flow-thru Rotary Vibrating Separator for Food Additives:
This compact sieve adopt high-frequency vibration motor as the excitation source, the materials do three-dimensional rotary motion on the screen surface after into the system, flour and agglomeration fully dispersed, rapid through mesh directly to the lower silo. Foreign matter and impurities are separated and discharged to the slag discharge port, the machine play the role of “safety officer” on the production line.
Our low-profile vibrating control sieve can be used in the feed system of front production line of instant noodles, noodles, snacks, solid drinks etc., to separate the foreign matter from the raw materials (flour, starch, milk powder, additives etc.). Because it is in series with the system and automatically separates foreign matter, it is honored as the “safety officer” on the food production line. The flour sieve can replace the manual observation of the foreign matter and check-up action.
Some Kinds of High Efficiency Flow-thru Rotary Vibrating Separator for Food Additives:
Contact Person: Ms. Magie
Alternative Name: flo-thru sifter, flow-thru separator, compact sieve, safety screeners, control sieves, low-profile vibrating sieve, low profile separator, inline vibrating screen etc.
Machine Diameter: 400mm~2100mm
Layers of Screen: 1~2 screen layers
Purpose: suitable for eliminating oversized materials rapidly from powders and liquids
Advantages: large capacity, short height, compact design, fast screen replacement etc.
Purpose: suitable for eliminating oversized material rapidly from powders and liquids
Machine Diameter: 600m~2100mm
Layers of Screen: 1~2 decks (multiple screen decks can be customized according to the specific situation)
