| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AX |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
| Features: | The Fine Material Discharge Port Is Designed At The Bottom Of The Machine | Movement: | Three-dimensional Rotary Motion |
|---|---|---|---|
| Machine Shape: | Rectangular, Round | Machine Diameter: | 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm |
| Layers Of Screen: | 1~2 Screen Decks | Driving Device: | 1~2 Horizontal Vibrating Motors |
| Mesh Debling System: | Ultrasonic Deblinding System, Bouncing Balls | Application: | Instant Noodles, Noodles, Snacks, Solid Drinks Etc. |
| High Light: | milk Vibro Screen Machine,3d Vibro Screen Machine,milk Vibrating Screen Separator |
||

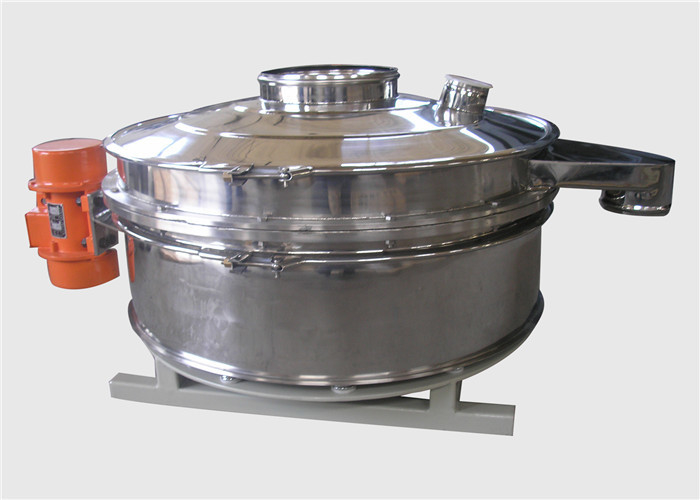

Milk Powder Vibro Screen Machine 3D Circular Vibrating Screen Separator
Product Introduction of Low Profile Flow-Thru Separators Vibro Screen Machine for Milk Powder:
Our AX model low profile flow-thru separator vibro screen machine is also known as the low-profile vibrating sieve, low profile separator, flow-thru separator, vibro flow-thru separator, inline screen, vibration in-line screen, inline vibro screen, vibrating control screener, direct discharge screen, low profile circular separator, straight-flow separator, flow through inline sifter, flowthru vibrating separator, flow-thru rotary vibrating separator, flow-thru vibro separator , flow- thru vibro screen, flour sifter etc.
This sieve machine allows for high capacity wet or dry scalping in a compact and low headroom design. Dual motors mounted on opposite sides of the machine allow unrestricted flow of material and create the three-dimensional motion that allows oversize material full discharge, keeping the screen clear for maximum product flow. Its low headroom requirements (as little as 350mm) and straight flow design, allow the vibro sifter to fit easily into existing product lines without reworking the entire system. The inlets and outlets can be custom designed to mate with existing equipment and piping. The low profile is ideally suited for prepackaging screening in many food and pharmaceutical applications, as well as for bulk bag unloading and screening of raw ingredients.
Some Important Information You May Concern About Low Profile Flow-Thru Separators Vibro Screen Machine for Milk Powder:
| Alternative Name | flow-thru separator, compact sieve, check screening machine, safety screener, control sieve, inline vibrating sieve etc. |
| Motor | single vibrating motor, dual vibrating motors (optional) |
| Height | 500mm or less (such as 350mm) |
| Mesh Debling System | ultrasonic deblinding system, bouncing balls |
| Layers of Screen | 1~2 layers of screens |
| Diameter | 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm |
| Discharge Port | the discharge port for fine particles are at the bottom of the machine |
| Purpose | suitable for materials safety screening with less oversize particles |
| Machine Shape | round, rectangular |
| Damping Spring | steel spring, rubber spring |
| Application | flour, starch, milk powder, additives, instant noodles, noodles, snacks, solid drinks etc. |
Function of Low Profile Flow-Thru Separators Vibro Screen Machine for Milk Powder:
This type of vibrating sifter is useful to remove foreign particles from desired material, removal of lumps from powder, separate different size of material, separation of oversize from screened material, especially for flour powder.
Working Principle of Low Profile Flow-Thru Separators Vibro Screen Machine for Milk Powder:
There are two power arrangement modes: single motor and double motors.
The single motor type adopts single horizontal vibration motor, simple and convenient.
The double motor type is driven by two horizontal vibration motors, which produce three-dimensional vibration. It not only makes the material more evenly distributed, but also removes large particles, keeping the screen surface clean and smooth. And the screening effect is better. The low profile flow-thru separator can produce excitation force through the motor vibration. People can change the exciting force by adjusting the motor phase angle at both ends of the eccentric hammer weight, which can effectively change the material trajectory, extending the material stay time on the screen surface.
Some Kinds of Low Profile Flow-Thru Separators Vibro Screen Machine for Milk Powder:
Features of Low Profile Flow-Thru Separators Vibro Screen Machine for Milk Powder:
1. Dual side mount motors allow for maximum flow-thru of material through the separator. Throughput is determined directly by screen mesh. In addition, oversize material is efficiently removed from the screen surface with three-dimensional vibratory motion.
2. Separation dynamics and discharge pattern can be optimized by adjusting motor force and motor orientation angle. This allows the user the ability to control the residence time of particles on the screen surface, creating optimal flow characteristics to meet your specific process needs.
3. Due to the low headroom requirement, the low profile fits almost anywhere in the existing process without reworking your entire system or even rerouting existing piping.
4. External mount motors operate at cooler temperatures. In hot applications, there is no need for the forced air cooling required by the internally mounted motors of standard separators.
5. Ball trays or sliders can be used to reduce screen blinding.
Technical Parameters of Low Profile Flow-Thru Separators Vibro Screen Machine for Milk Powder:
| Model | 400 | 600 | 800 | 1000 | 1200 | 1300 | 1500 |
| Power | 0.1kw | 0.1kw | 0.1kw | 0.2kw | 0.2kw | 0.2kw | 0.4kw |
| Screen Diameter | 350mm | 550mm | 750mm | 920mm | 1005mm | 1120mm | 1420mm |
Note: the data above are for reference only, and our company reserves the right to modify the data.
Application of Low Profile Flow-Thru Separators Vibro Screen Machine for Milk Powder:
The low-profile flow-thru vibrating separator is widely used in screening granules and powders, which is suitable for single-deck sieving and screening on raw materials of small production of fewer impurities, such as flour, starch, detergent, metal powder, additive, chemicals, non-mining industries etc.
