|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||20 sets per month|
|Features:||The Fine Material Outlet Is At The Bottom Of The Machine||Purpose:||Suitable For The Dry Materials Safety Screening With Less Oversizes|
|Machine Shape:||Round Shape, Rectangular Shape||Driving Device:||Dual Vibrating Motors, Or Single Vibrating Motor|
|Advantage:||Large Capacity, Compact Structure, Low Occupancy Height||Layers Of Screen:||Single Layer, 2 Layers (optional)|
|Diameter:||600mm~2100mm||Mesh Cleaning Method:||Ultrasonic Deblinding System, Bouncing Balls Etc.|
Impurity Vibratory Sieve Separator,
600mm Vibratory Sieve Separator,
Impurity gyratory screen separator

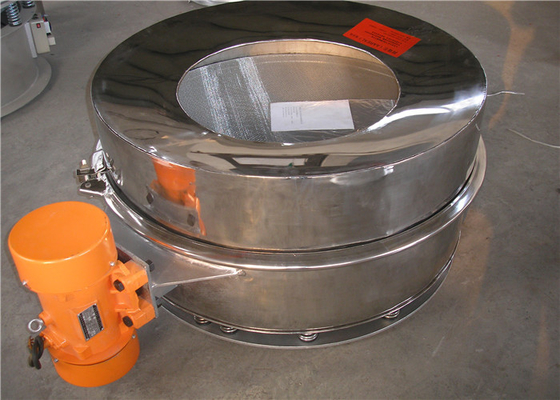

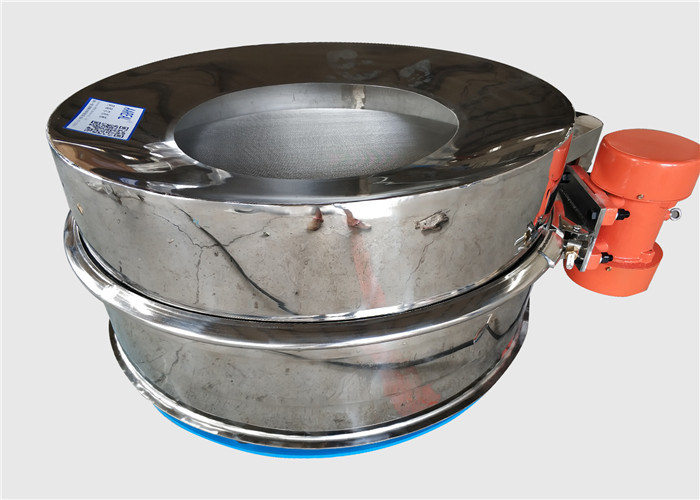

Industrial Vibratory Sieve Separator Machine Round Shape For Impurity Removal
Product Introduction of Industrial Low Profile Check Screening Vibratory Compact Sieve for Impurity Removal:
The industrial low profile check screening vibratory compact sieve for impurity removal is also called low-profile vibrating sieve, low profile separator, flow-thru separator, compact sieve, vibro flow-thru separator, inline screen, inline vibrating screen, inline vibrating sieve, vibration in-line screen, inline vibro screen, vibrating control screener, direct discharge screen, low profile circular separator, straight-flow separator, flow through inline sifter, flowthru vibrating separator, flow-thru rotary vibrating separator, flow-thru vibro separator , flow-thru vibro screen, straight-flow inline sifter, flour sifter etc.
The inline vibrating sieve is commonly referred to as safety screeners or control vibratory sieve, these units are used to ensure the correct product quality of powders or liquids is achieved by removing oversize contamination. Designed to provide high-capacities, these industrial screeners ensure productivity of your production process is maintained while also keeping your maintenance costs to a minimum. Including check screening vibratory sieve shakers within your production process is essential to ensure you are able to safeguard your company’s reputation and produce a consistent high quality product profitably.
The vibrating control sieve machine is a kind of new type and high efficient screening machine. It offers high capacity wet or dry scalping in a compact, low head room design. Double motors mounted on opposite of body create the 3-D motion that allows maximum flow-thru of material. This machine is ideally suited for prepackaging screening in many food and pharmaceutical applications,as well as for bulk bag unloading and screening of raw ingredients.
Working Principle of Industrial Low Profile Check Screening Vibratory Compact Sieve for Impurity Removal:
There are two power arrangement modes: single motor and double motors.
The single motor type adopts single horizontal vibration motor, simple and convenient.
The double motor type is driven by two horizontal vibration motors, which produce three-dimensional vibration. It not only makes the material more evenly distributed, but also removes large particles, keeping the screen surface clean and smooth. And the screening effect is better. The low profile flow-thru separator can produce excitation force through the motor vibration. People can change the exciting force by adjusting the motor phase angle at both ends of the eccentric hammer weight, which can effectively change the material trajectory, extending the material stay time on the screen surface.
Application of Industrial Low Profile Check Screening Vibratory Compact Sieve for Impurity Removal:
The flow-thru inline vibrating sieve is often used in flour, starch, washing powder, metal powder, additives, chemical industry, non-mining and other industries for particle and powder’s coarse screening and fine screening.
The safety screener can be used in the feeding system of instant noodles, dried noodles, small food, solid drink and so on, to separate the foreign objects in the raw materials, such as flour, starch, milk powder, additives etc.
Features of Industrial Low Profile Check Screening Vibratory Compact Sieve for Impurity Removal:
1. Compact structure, low occupancy height (can be as low as 340mm)
2. Small size and light in weight.
3. Material flow adopts direct-current design.The product is discharged directly from the bottom of the sieve machine, easy to connect with the production line.
4. It is used for the high production capacity of coarse screening, very suitable for the dry materials security screening with less large particles.
Technical Parameters of Industrial Low Profile Check Screening Vibratory Compact Sieve for Impurity Removal:
Note: the data above are for reference only, and our company reserves the right to modify the data.
Standard Dimension Drawing of Industrial Low Profile Check Screening Vibratory Compact Sieve for Impurity Removal:
Contact Person: Ms. Magie
Alternative Name: flo-thru sifter, flow-thru separator, compact sieve, safety screeners, control sieves, low-profile vibrating sieve, low profile separator, inline vibrating screen etc.
Machine Diameter: 400mm~2100mm
Layers of Screen: 1~2 screen layers
Purpose: suitable for eliminating oversized materials rapidly from powders and liquids
Advantages: large capacity, short height, compact design, fast screen replacement etc.
Purpose: suitable for eliminating oversized material rapidly from powders and liquids
Machine Diameter: 600m~2100mm
Layers of Screen: 1~2 decks (multiple screen decks can be customized according to the specific situation)
