Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AX
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Features: The Fine Material Outlet Is At The Bottom Of The Machine Driving Device: Single Vibrating Motor, Or Double Vibrating Motors
Purpose: For High Capacity Of Coarse Screening, Very Suitable For The Dry Materials Security Screening With Less Oversize Particles Advantage: Large Capacity, Compact Structure, Low Occupancy Height
Diameter: 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm Etc. Layers Of Screen: Single Layer, 2 Layers (optional)
Mesh Cleaning Method: Bouncing Ball, Ultrasonic System Etc. Machine Shape: Round Shape, Rectangular Shape
Highlight:

Cement vibro screen separator

,

Cement vibro screen separator

,

Cement vibro energy separator

Cement Flour Round Vibrating Screen Rotary Vibrating Separator Compact Structure



Product Introduction of Low Profile Flow-thru Rotary Vibrating Separator for Cement Flour:
The low profile flow-thru rotary vibrating separator for cement flour is also called low-profile vibrating sieve, low profile separator, flow-thru separator, vibro flow-thru separator, inline screen, inline vibrating screen, inline vibrating sieve, vibration in-line screen, inline vibro screen, vibrating control screener, direct discharge screen, low profile circular separator, straight-flow separator, flow through inline sifter, flowthru vibrating separator, flow-thru rotary vibrating separator, flow-thru vibro separator , flow-thru vibro screen, straight-flow inline sifter, flour sifter etc.

  The flow-thru separator is a kind of sieving machine with unique purpose, which is developed by our company's t technical personnel after absorbing Japanese technology. It can be widely used in the sieving of flour in the production of instant noodles, the classification of particles in the production of washing powder, the grading of particles in the production of starch, and other industries which require large screening output.

It has the characteristics of high screening accuracy, large throughput, good sealing, easy to combine with the production line, automatic materials and slag discharge, continuous production and so on.

  There are two power arrangement modes: single motor and double motors.

Working Principle of Low Profile Flow-thru Rotary Vibrating Separator for Cement Flour:

  The double motor type is driven by two horizontal vibration motors, which produce three-dimensional vibration. It not only makes the material more evenly distributed, but also removes large particles, keeping the screen surface clean and smooth. And the screening effect is better. The low profile flow-thru separator can produce excitation force through the motor vibration. People can change the exciting force by adjusting the motor phase angle at both ends of the eccentric hammer weight, which can effectively change the material trajectory, extending the material stay time on the screen surface.

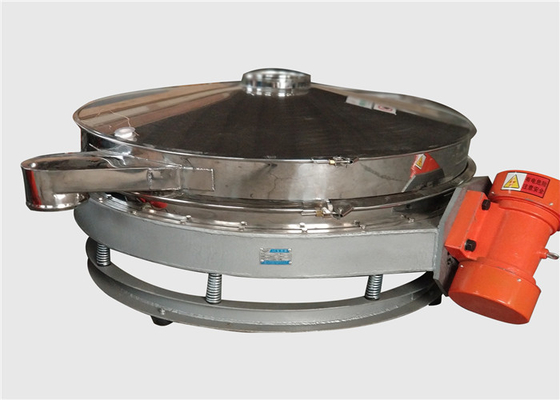

   The single motor type adopts single horizontal vibration motor, simple and convenient.

Features of Low Profile Flow-thru Rotary Vibrating Separator for Cement Flour:
1. Compact structure, low occupancy height (can be as low as 340mm)
2. Material flow adopts direct-current design.The product is discharged directly from the bottom of the sieve machine, easy to connect with the production line.
3. It is used for the high production capacity of coarse screening, very suitable for the dry materials security screening with less large particles.
4. Small and light.

Technical Parameters of Low Profile Flow-thru Rotary Vibrating Separator for Cement Flour:
Cement Flour Round Vibrating Screen Rotary Vibrating Separator Compact Structure 0

Model 400 600 800 1000 1200 1300 1500
Power 0.1kw 0.1kw 0.1kw 0.2kw 0.2kw 0.2kw 0.4kw
Screen Diameter 350mm 550mm 750mm 920mm 1005mm 1120mm 1420mm



Standard Dimension Drawing of Low Profile Flow-thru Rotary Vibrating Separator for Cement Flour:

Cement Flour Round Vibrating Screen Rotary Vibrating Separator Compact Structure 1

Cement Flour Round Vibrating Screen Rotary Vibrating Separator Compact Structure 2



Application of Low Profile Flow-thru Rotary Vibrating Separator for Cement Flour:
The flow-thru inline vibrating sieve is often used in flour, starch, washing powder, metal powder, additives, chemical industry, non-mining and other industries for particle and powder’s coarse screening and fine screening.
It can be used in the feeding system of instant noodles, dried noodles, small food, solid drink and so on, to separate the foreign objects in the raw materials, such as flour, starch, milk powder, additives etc.


Cement Flour Round Vibrating Screen Rotary Vibrating Separator Compact Structure 3
                          Double Motor type, with Pneumatic Gate Valve
