|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Function:||Grading, Impurity Removal, Filtering, De-watering, De-dusting, Lump Breaking, Cooling, Size Control Etc.||Diameter:||400mm~2000mm|
|Screen Decks:||1~5 Screen Decks (1~3 Decks Recommended)||Screen Frame:||Flange Type, L Type, Glue Type Etc.|
|Mesh Cleaning Method:||Bouncing Balls, Ultrasonic Deblinding Device, Rotary Brush System Etc.||Material:||Carbon Steel, Contact Parts Stainless Steel, Full Stainless Steel Etc.|
|Optional Parts:||Quick Release Clamp, Magnetic Guard, Discharge Gate, Glass Viewing Port Etc.||Application:||Yeast Powder, Powder Coating, Paper Pulp, Calcium Carbonate, Kaolin, Quartz Sand Etc.|
vibrating sieve screen,
vibratory screen separator

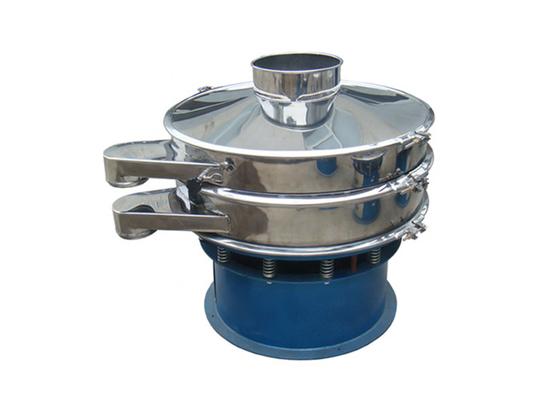

Foundry Sand Vibrating Screen Machine Circular Type Vibro Sieve Separator
Overview of Circular Vibrating Screen Machine For Foundry Sand:
The circular vibrating screen machine for foundry sand is known as the rotary vibrating screen, rotary vibrating sieve, round separator, vibro screen, vibrating sifter, round vibro sieve, gyro screen, gyro sieve, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, circular vibratory screen, circular vibrating screen, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.
Our AY model rotary vibrating screen classifier is designed for accurate grading or sizing of dry chemical powder up to five fractions in one operation. It benefits from major advances in sieving technology providing large improvements in sieving accuracy, capacity, noise levels and upgradeability compared with traditional spring suspension separators. It is widely used in screening igments, silica,resin, gypsum, cosmetic, PVC powder, fiberglas, dextrin, fertilizer, teflon, polystyrene, quicklime and so on.
Important Information About Circular Vibrating Screen Machine For Foundry Sand You May Concern:
|Layers of Screen||1~5 screen decks|
|Mesh Size||above 325 mesh|
|Screen Frame||L type, adhesive type, ultrasonic type (transducer internal and external) etc.|
|Mesh Cleaning Method||bouncing balls, ultrasonic system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm|
|Material||carbon steel, stainless steel 304, 316L etc.|
|Function||grading, solid-separation, remove the impurity etc.|
|Movement||three dimensional vibration motion|
|Damping Spring||galvanized steel spring etc.|
|Motor||verticle vibrating motor|
|Motor Brand||China Made, OLI-WOLONG etc.|
|Optional||quick release clamp, magnetic guard, discharge gate, glass viewing port etc.|
Screen Frame Or Screen Holder Optional:
Mesh Cleaning Method:
Bouncing balls (rubber balls, silicone balls, polyurethane balls etc.), ultrasonic deblinding system, rotary brush system etc.
Working Principle of Circular Vibrating Screen Machine For Foundry Sand:
The machine is suspended on rugged springs that allow it to vibrate freely while minimizing power consumption and preventing vibration transmission to the floor. The flow patterns of material can be fine turned for screening efficiency by repositioning the bottom eccentric weight relative to the top eccentric weight.
The three-dimensional vibrating screen is made up of an upright motor as an excitation source. The upper and lower ends of the motor are equipped with an eccentric weight to convert the rotary motion of the motor into a horizontal, vertical, and inclined three motion of the sieve to make the material expand and involute on the screen surface, so the series of vibrating screens is called a vibrating screen. The vibrating screen has the advantages of long track of material running and high utilization Of screen surface. Adjusting the phase angle of the upper and lower ends of the hammer can change the movement track of the material on the screen surface. The material can be finely sieved and probability sieved.
After the vibrating screen is started, the power device is the eccentric block with different phases at the upper and lower ends of the vibrating motor. Due to the high-speed placement, a compound inertial force is generated. The inertial force forces the vibrating body of the screen to perform the reciprocating motion, and the screen frame is vibrating. The ground is driven to drive the screen surface for periodic vibration, so that the material on the screen surface is directionalally moved together with the screen box, during which the material smaller than the sieve surface diameter falls through the sieve hole to the lower layer, to become a sieve under the material, the material larger than the sieve aperture is discharged from the discharge opening after continuous jumping movement, and finally the screening work is completed. The trajectory of the vibrating body of the vibrating screen is a complex spatial three-dimensional vibration. The projection of the curve on the horizontal plane is circular, and the projections on the two vertical planes are two identical ellipse. In practical application, by adjusting the relative phase of the eccentric block at the upper and lower ends of the vibration Motor, the movement trajectory of the material on the sieve surface can be changed.
Structure Diagram of Circular Vibrating Screen Machine For Foundry Sand:
Features of Circular Vibrating Screen Machine For Foundry Sand:
1. High efficiency, refined design,duration,any powers and mucilage are suitable for using.
2. Easily replace the screen, simple operation and convenience washing.
3. Never jam the mesh with no power flying and filter size of the power between 500 mesh or 0.028mm.
4. Discharge the impurity and coarse materials automobile and operates continuously.
5. Small volume, move easily.
6. The highest layers of the screen are 5 layers. But 3 layers are suggested.
Application of Circular Vibrating Screen Machine For Foundry Sand:
1. Industry: resin powder, pigment, washing powder, micro powder, paint, soda ash, lemon powder, rubber, plastic etc.
2. Abrasives and ceramics industry: alumina, quartz sand, mud, spray soil.
3. Food industry: sugar, salt, alkali, monosodium glutamate, milk powder, soy milk, yeast, juice, soy sauce, vinegar etc.
4. Paper industry: coating paint, clay mud, black and white liquid, waste liquid, papermaking liquid, waste water recycling.
5. Metallurgical industry: titanium oxide, zinc oxide, electromagnetic materials, metal powder, electrode powder etc.
6. Pharmaceutical industry: Chinese medicine powder, Chinese medicine liquid, western medicine powder, western medicine liquid, Chinese and Western medicine granules etc.
7. Environmental protection: garbage, human and animal waste, waste oil, food wastewater, wastewater treatment etc.
Matters Need Attention For Circular Vibrating Screen Machine:
1. Once the machine on operation, vibration part shall not be connected or contact with any object.
2. When feeding materials, pay attention to ensure the uniform feeding.
3. When the material through down, keeping no big impact to damage the screen.
4. Before operation and power off, there should no be any material on screen surface.
5. If there is any abnormal sound in the operation, the machine should be shutdown immediately and to check.
6. Ensure vibration motor maintenance regularly.
Technical Parameters of Circular Vibrating Screen Machine For Foundry Sand:
|Model||Power||Screen Surface Diameter||Effective Screening Area (m2)||Layers|
Overall Dimensions of Circular Vibrating Screen Machine For Foundry Sand:
|Model||A||B||C||D||E||F||G||I||Single Layer Height||Double Layer Height||
