Movement: | Three Dimensional Vibration | Perpose: | Particle Size Grading, Impurity Removal, Filtering, De-watering, De-dusting, Lump Breaking, Cooling, Size Control Etc. |
---|---|---|---|
Diameter: | 400mm~2000mm | Layers Of Screen: | 1~5 Screen Decks (1~3 Recommended) |
Material: | Carbon Steel, Contact Parts Stainless Steel, Full Stainless Steel Etc. | Screen Frame: | Bolt Insert Type, Adhesive Type, Flange Type, Ultrasonic Type (internal And External Transducer) Etc. |
Mesh Cleaning Method: | Bouncing Rubber Balls, Ultrasonic Deblinding Device, Rotary Brush System Etc. | Optional Parts: | Quick Release Clamp, Magnetic Guard, Discharge Gate, Glass Viewing Port Etc. |
High Light: | vibrating sieve screen,vibratory screen separator |

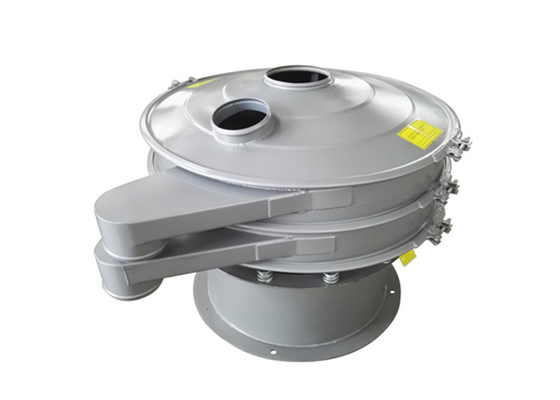

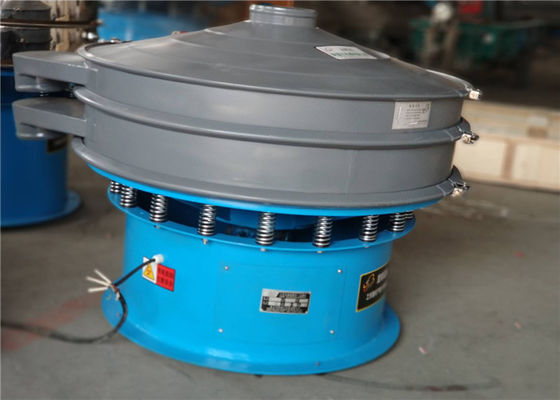

High Efficiency Circular Vibrating Screen Vibratory Separator For Precoated Sand
Overview of Circular Vibratory Screen Separator For Precoated Sand:
Circular vibratory screen separator for precoated sand is designed as a high-precision screening machinery, it is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends. Rotary vibrating screen can be produced in horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter also can be ranged from 400mm to 2000mm, with single or multiple screening decks, material can be total carbon steel, total stainless steel or material contact parts are stainless steel according to different product.
The rotary vibrating screen separator machine is also known as the rotary vibrating screen, rotary vibrating sieve, round separator, vibro screen, vibrating sifter, round vibro sieve, gyro screen, gyro sieve, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, circular vibratory screen, circular vibrating screen, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.
Important Information About Circular Vibratory Screen Separator For Precoated Sand You May Concern:
Model | AY |
Shape | round |
Layers of Screen | 1~5 screen decks |
Mesh Size | above 325 mesh |
Screen Frame | L type, adhesive type, ultrasonic type (transducer internal and external) etc. |
Mesh Cleaning Method | bouncing balls, ultrasonic system, rotary brush system etc. |
Diameter | 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm |
Material | carbon steel, stainless steel 304, 316L etc. |
Function | grading, solid-separation, remove the impurity etc. |
Movement | three dimensional vibration motion |
Damping Spring | galvanized steel spring etc. |
Motor | verticle vibrating motor |
Motor Brand | China Made, OLI-WOLONG etc. |
Optional | quick release clamp, magnetic guard, discharge gate, glass viewing port etc. |
Screen Frame Or Screen Holder Optional:
Working Principle of Circular Vibratory Screen Separator For Precoated Sand:
The three-dimensional vibrating screen is made up of an upright motor as an excitation source. The upper and lower ends of the motor are equipped with an eccentric weight to convert the rotary motion of the motor into a horizontal, vertical, and inclined three motion of the sieve to make the material expand and involute on the screen surface, so the series of vibrating screens is called a vibrating screen. The vibrating screen has the advantages of long track of material running and high utilization Of screen surface. Adjusting the phase angle of the upper and lower ends of the hammer can change the movement track of the material on the screen surface. The material can be finely sieved and probability sieved.
After the vibrating screen is started, the power device is the eccentric block with different phases at the upper and lower ends of the vibrating motor. Due to the high-speed placement, a compound inertial force is generated. The inertial force forces the vibrating body of the screen to perform the reciprocating motion, and the screen frame is vibrating. The ground is driven to drive the screen surface for periodic vibration, so that the material on the screen surface is directionalally moved together with the screen box, during which the material smaller than the sieve surface diameter falls through the sieve hole to the lower layer, to become a sieve under the material, the material larger than the sieve aperture is discharged from the discharge opening after continuous jumping movement, and finally the screening work is completed. The trajectory of the vibrating body of the vibrating screen is a complex spatial three-dimensional vibration. The projection of the curve on the horizontal plane is circular, and the projections on the two vertical planes are two identical ellipse. In practical application, by adjusting the relative phase of the eccentric block at the upper and lower ends of the vibration Motor, the movement trajectory of the material on the sieve surface can be changed.
The general characteristics of the vibrator adjustment are described below:
Structure Diagram of Circular Vibratory Screen Separator For Precoated Sand:
Features of Circular Vibratory Screen Separator For Precoated Sand:
1. Easily change screen cloth as needed.
2. Automatic discharge of oversized materials.
3. Can be applied for screening particle, powder, liquid in various industries.
4. All- closed design, no dust pollution.
5. Sort material into multi-levels at one operation.
6. Low noise, less than 60 decibels.
Basic Function of Circular Vibratory Screen Separator For Precoated Sand:
1. Grading
Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi-layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.
2. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.
3. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.
Technical Parameters of Circular Vibratory Screen Separator For Precoated Sand:
Model | Power | Screen Surface Diameter | Effective Screening Area (m2) | Layers |
AY-400 | 0.18 KW | 350mm | 0.0962 | 1~3 |
AY-600 | 0.25 KW | 550mm | 0.2375 | 1~3 |
AY-800 | 0.55 KW | 750mm | 0.4416 | 1~3 |
AY-1000 | 0.75 KW | 920mm | 0.6644 | 1~3 |
AY-1200 | 1.1 KW | 1120mm | 0.9847 | 1~3 |
AY-1500 | 1.5 KW | 1420mm | 1.5829 | 1~3 |
AY-1800 | 2.2 KW | 1720mm | 2.3223 | 1~3 |
AY-2000 | 3.0 KW | 1920mm | 2.89 | 1~3 |
Overall Dimensions of Circular Vibratory Screen Separator For Precoated Sand:
Model | A | B | C | D | E | F | G | I | Single Layer Height | Double Layer Height |
Three Layer Height |
AY-400 | 472 | 372 | 150 | 400 | 110 | 60 | 300 | 270 | 550 | 660 | 770 |
AY-600 | 570 | 450 | 200 | 600 | 120 | 80 | 380 | 340 | 730 | 865 | 1000 |
AY-800 | 690 | 570 | 200 | 800 | 130 | 100 | 550 | 340 | 730 | 865 | 1000 |
AY-1000 | 810 | 690 | 250 | 970 | 150 | 120 | 650 | 400 | 790 | 925 | 1060 |
AY-1200 | 970 | 850 | 250 | 1170 | 180 | 130 | 760 | 450 | 860 | 1025 | 1190 |
AY-1500 | 1180 | 1060 | 250 | 1470 | 200 | 140 | 950 | 480 | 985 | 1180 | 1370 |
AY-1800 | 1480 | 1360 | 350 | 1770 | 220 | 150 | 1110 | 520 | 1030 | 1220 | 1410 |
Application of Circular Vibratory Screen Separator For Precoated Sand:
Food industry | sugar, salt, alkali, gourmet powder, starch, milk powder, bean milk, yeasts must, pollen etc. |
Chemical industry | resin pigment, medicine, grease, fire-extinguishing agent, rubber and plastic etc. |
Mine industry | quartz sand, ore, titanium oxide, zinc oxide etc. |
Grinding material, glass, ceramic industry | silica sand, alumina, grinding material, glass powder, refractory material etc. |
Paper-making industry | whitish soil slush, black and white fluid, filling fluid, waste fluid and paper-making fluid etc. |
Mechanical industry | casting sand, powder metallurgy, electromagnetic material and metal powder etc. |
Other industry | carbon black, light calcium, additive, pearl powder, catalyst etc. |
Matters Need Attention:
1. Once the machine on operation, vibration part shall not be connected or contact with any object.
2. When feeding materials, pay attention to ensure the uniform feeding.
3. When the material through down, keeping no big impact to damage the screen.
4. Before operation and power off, there should no be any material on screen surface.
5. If there is any abnormal sound in the operation, the machine should be shutdown immediately and to check.
6. Ensure vibration motor maintenance regularly.
