| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AY |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Alternative Names: | Vibrating Filter Sieve, Round Separator, Rotary Vibrating Screen, Rotary Vibrating Sieve, Vibro Screen, Vibrating Sifter, Vibrating Shifter Etc. | Custom Design: | Avalanche Screen, Low-profile Screen, High Frequency Screen Etc. |
|---|---|---|---|
| Purpose: | Particle Size Grading, Impurity Removal, Filtering, De-watering, De-dusting, Lump Breaking, Cooling, Size Control Etc. | Motor: | One Unit Of Verticle Vibrating Motor |
| Motion: | Three Dimensional Vibration Movement | Screen Frame: | Glue Adhesive Type, Bolt Insert Type, Flange Type Etc. |
| Mesh Cleaning Method: | Bouncing Balls, Ultrasonic Deblinding System, Rotary Brush System Etc. | Optional Parts: | Discharge Gate, Quick Release Clamp, Magnetic Guard, Glass Viewing Port Etc. |
| High Light: | round vibrating screen,vibro sieve machine |
||

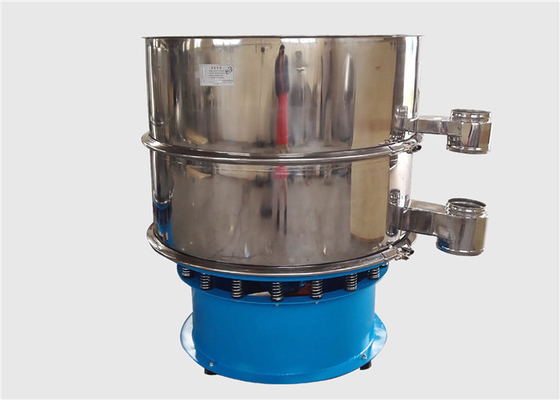

Orange Juice Rotary Vibrating Screen Filter Separator Machine Multi Deck
Product Description of Rotary Vibrating Screen Filter Separator Machine For Orange Juice:
The rotary vibrating screen filter separator machine is a revolutionary high performance vibrating screen for screening wet or dry materials. It is also known as the rotary vibrating screen, rotary vibrating sieve, round separator, vibro screen, vibrating sifter, round vibro sieve, gyro screen, gyro sieve, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, circular vibratory screen, circular vibrating screen, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.
The rotary vibrating sifter belongs to a high precision fine powder separation machine. High screen efficiency and novel design are the main features of vibrating sifter. It adds the special cleaning device- bouncing ball. It can bounce up and down while the screen cloth is shaking, which can effectively avoid clogging. The sealing structure design and all- closed type which can be avoid polluting the environment . The installation is very safe and convenient.
The rotary vibrating sifter is suitable for screening all of dry material (from 0.074mm to 20mm). This screening machine dimension is ranged from diameter 450mm, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm. It supports at most 5 layers. But 3 layers are highly recommended.
Important Information You May Concern About Rotary Vibrating Screen Filter Separator Machine For Orange Juice:
| Model | AY |
| Shape | round or circular |
| Layers of Screen | 1~5 screen decks (with 2~6 discharge ports) |
| Mesh Size | above 325 mesh |
| Screen Frame | L type, adhesive type, ultrasonic type (transducer internal and external) etc. |
| Mesh Cleaning Method | bouncing balls, ultrasonic system, rotary brush system etc. |
| Diameter | 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm |
| Material | carbon steel, stainless steel 304, 316L etc. |
| Function | grading, solid-separation, remove the impurity etc. |
| Movement | three dimensional vibration motion |
| Damping Spring | galvanized steel spring etc. |
| Motor | verticle vibrating motor |
| Motor Brand | China Made, OLI-WOLONG etc. |
| Optional | quick release clamp, magnetic guard, discharge gate, glass viewing port etc. |
Working Principle of Rotary Vibrating Screen Filter Separator Machine For Orange Juice:
The multi-deck rotary vibating screen separator adopts the latest vertical vibrating motor, which produces a horizontal, vertical and oblique vibration of three dimensional, and then directly passes the vibration to screen surface. Changing the angle of the upper and lower eccentric block of the motor, it produces different exciting force, and the direction in which the material is running is changed.
The rotary vibrating screen filter sieve machine is made up of spring buffer, base, upper and lower heavy hammer,vibrating motor, screen frame, clamp ring, vibrating body, inlet and outlet port, dust proof cover and other parts. The exciting force will generate by the rotation of vibrating motor. The exciting force drives the vibrating body to vibrate. So the materials on the screen cloth can shake to reach the objective that filters different grade materials., The adjustable eccentric hammer is driven to the center line through the motor, caused centrifuged force under the state of unbalance and so that the materials from regular spiral. Speed and track of materials on the screen can be controlled by adjusting the angle of the two eccentric weights.
The general characteristics of the vibrator adjustment are described below:
Structure Diagram of Rotary Vibrating Screen Filter Separator Machine For Orange Juice:
Features of Rotary Vibrating Screen Filter Separator Machine For Orange Juice:
1. people can replace rapidly network layer without any tool, using the network layer to 8 layer;
2. the time can be setting under automatic control, can be set 1 to 60 minutes;
3. it is applicable to any powder, liquid and granular;
4. screen powder does not float in the sky, spray liquid not disorderly, granule not jump;
5. screen mesh from 3.5 mesh to 400 mesh.
Basic Function of Rotary Vibrating Screen Filter Separator Machine For Orange Juice:
1. Grading
Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi-layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.
2. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.
3. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.
Technical Parameters of Rotary Vibrating Screen Filter Separator Machine For Orange Juice:
| Model | Power | Screen Surface Diameter | Effective Screening Area (m2) | Layers |
| AY-400 | 0.18 KW | 350mm | 0.0962 | 1~3 |
| AY-600 | 0.25 KW | 550mm | 0.2375 | 1~3 |
| AY-800 | 0.55 KW | 750mm | 0.4416 | 1~3 |
| AY-1000 | 0.75 KW | 920mm | 0.6644 | 1~3 |
| AY-1200 | 1.1 KW | 1120mm | 0.9847 | 1~3 |
| AY-1500 | 1.5 KW | 1420mm | 1.5829 | 1~3 |
| AY-1800 | 2.2 KW | 1720mm | 2.3223 | 1~3 |
| AY-2000 | 3.0 KW | 1920mm | 2.89 | 1~3 |
Overall Dimensions of Rotary Vibrating Screen Filter Separator Machine For Orange Juice:
| Model | A | B | C | D | E | F | G | I | Single Layer Height | Double Layer Height |
Three Layer Height |
| AY-400 | 472 | 372 | 150 | 400 | 110 | 60 | 300 | 270 | 550 | 660 | 770 |
| AY-600 | 570 | 450 | 200 | 600 | 120 | 80 | 380 | 340 | 730 | 865 | 1000 |
| AY-800 | 690 | 570 | 200 | 800 | 130 | 100 | 550 | 340 | 730 | 865 | 1000 |
| AY-1000 | 810 | 690 | 250 | 970 | 150 | 120 | 650 | 400 | 790 | 925 | 1060 |
| AY-1200 | 970 | 850 | 250 | 1170 | 180 | 130 | 760 | 450 | 860 | 1025 | 1190 |
| AY-1500 | 1180 | 1060 | 250 | 1470 | 200 | 140 | 950 | 480 | 985 | 1180 | 1370 |
| AY-1800 | 1480 | 1360 | 350 | 1770 | 220 | 150 | 1110 | 520 | 1030 | 1220 | 1410 |
Application of Rotary Vibrating Screen Filter Separator Machine For Orange Juice:
1. Chemical Industry: colophony, dope, industry leechdom, cosmetic, paint
2. Grinding Materials And china Industry: alumina, quartz, slurry, kaoline, carborundum, sprayer dust.
3. Food Industry: sugar, amylum, rice powder, milk powder, soyabean milk, angel cake, sauce, juice.
4. Paper-Making Industry: dope,white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water recycling.
5. Metallurgy, Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate.
Optional Designs for Rotary Vibrating Screen Filter Separator Machine For Orange Juice:
1. Discharge Gate: it is used to control production flow and speed. This enables a better flow and provides consistent discharge characteristics from even surfaces. However, the discharge rate might differ from the ratio and diameter of the discharge pipe.
2. Quick Release Clamp: it is used for releasing camps rings without the need to use tools. While the other side of the clamp is used for tightening. It is mostly used for cleaning and dissembling purposes.
3. Spring Dust Cover: it is used to provide additional protection against dust and other particles by the strength of the springs, which is determined by the rollers which are also spring-loaded.
4. Customised Dust Cover: it is used to reduce any leaks from the machine. It also helps reduce airborne dust from flowing on the steam or conveyer belt. This device is made custom to fit your production line.
5. Magnetic Guard: it is used for preventing any contamination and also to ensure that manufacturing is done safely and free from any irregularities. It captures particles with the use of high magnetic strength. The collected contaminants are then unleashed into the discharge chutes.
