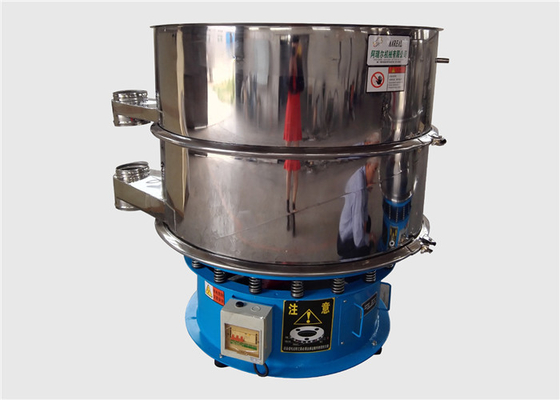

High Efficiency Rotary Vibrating Screen Three Dimensional

High Efficiency Rotary Vibrating Screen Three Dimensional
High Efficiency Rotary Vibrating Screen Three Dimensional High Efficiency Rotary Vibrating Screen Three Dimensional

Large Image :  High Efficiency Rotary Vibrating Screen Three Dimensional

Product Details:

Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Alternative Names: Vibro Sieving Machine, Vibrating Sifter, Vibrating Shifter, Round Separator, Rotary Vibrating Screen, Rotary Vibrating Sieve, Vibro Screen Etc. Perpose: Grading, Removal Of Impurity, Solid-liquid Separation, De-watering, De-dusting, Lump Breaking, Cooling, Size Control Etc.
Motion: Three Dimensional Vibration Mesh Cleaning Method: Bouncing Rubber Balls, Ultrasonic Deblinding Device, Rotary Brush System Etc.
Screen Frame: Flange Type, Bolt Insert Type, Adhesive Type, Ultrasonic Type (internal And External Transducer) Etc. Damping Spring: Steel Spring, Rubber Spring, Air Spring Etc.
Optional Parts: Quick Release Clamp, Magnetic Guard, Discharge Gate, Glass Viewing Port Etc. Special Design: Avalanche Design, High Frequency Design, Vibration Filtering Sieve, Low-profile Design, Double Motor Structure Etc.
High Light:

Paper Pulp Filtration Rotary Vibrating Screen


three dimensional rotary vibrating screen


325 mesh Rotary Vibrating Screen


High Efficiency Rotary Vibrating Screen Three Dimensional


Overview of Rotary Vibro Sieving Machine For Paper Pulp Filtration​​:

The rotary vibro sieving machine for paper pulp filtration is known as the rotary vibrating screen, rotary vibrating sieve, round separator, vibro screen, vibrating sifter, round vibro sieve, gyro screen, gyro sieve, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, circular vibratory screen, circular vibrating screen, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.

   The Industrial fine powder electric fine flour vibro sifter vibration sieve machine is a new type and high precision fine powder sieving machine with characteristics of high efficiency & lower noise. The fundamental principle of round separator is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.

  The rotary vibrating screen separator machine uses vibration motor as the source of vibration,equipped eccentric hammer on the both sides of motor,the rotation of hammers change circumrotate to level ,upright and incline movement,then pass these three movement to surface of the screen mesh. Adjust the phasic angle of the top hammer and bottom hammer to change the movement track of the material. This will help to screen different materiel in different situation successfully.


Important Information You May Concern About Rotary Vibro Sieving Machine For Paper Pulp Filtration:

Model AY
Shape round
Layers of Screen 1~5 screen decks
Mesh Size above 325 mesh
Screen Frame L type, adhesive type, ultrasonic type (transducer internal and external) etc.
Mesh Cleaning Method bouncing balls, ultrasonic system, rotary brush system etc.
Diameter 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm
Material carbon steel, stainless steel 304, 316L etc.
Function grading, solid-separation, remove the impurity etc.
Movement three dimensional vibration motion
Damping Spring steel spring etc.
Motor verticle vibrating motor
Motor Brand China Made, OLI-WOLONG etc.
Optional quick release clamp, magnetic guard, discharge gate, glass viewing port etc.


Features of Rotary Vibro Sieving Machine For Paper Pulp Filtration:

1. High efficiency, ingenious design, durable and suitable for screening any kinds of the powder and viscous fluid.
2. No jam for the screen net, no powders flying around and no liquid leaking out when running, fully sealed structure and environmentally friendly.
3. Small size and can be moved easily.
4. The screen nets are uniquely designed under 500 mesh, and the net.
5. It only takes 3~5 MINS to replace and clean the net conveniently.
6. Stainless steel parts contacting materials.
7. Easy to operate, impurities and coarse materials can be discharged automatically, continuous operations.

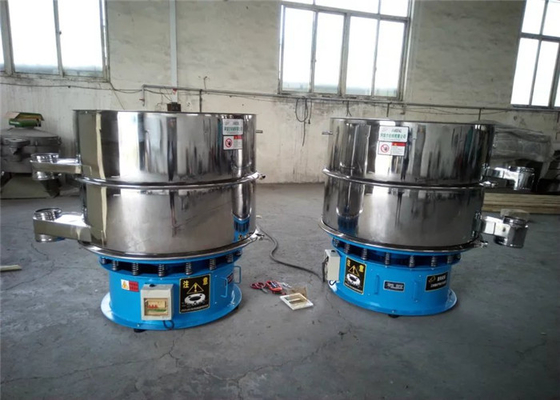

High Efficiency Rotary Vibrating Screen Three Dimensional 0

Working Principle of Rotary Vibro Sieving Machine For Paper Pulp Filtration:

  The multi-deck rotary vibating screen separator adopts the latest vertical vibrating motor, which produces a horizontal, vertical and oblique vibration of three dimensional, and then directly passes the vibration to screen surface. Changing the angle of the upper and lower eccentric block of the motor, it produces different exciting force, and the direction in which the material is running is changed.

  The round vibrating separator is a vibratory screening device that vibrates about its center of mass. The vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. The rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery. The lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern. The speed and spiral pattern of material travel over the screen cloth can be set by the operator for maximum throughput and screening efficiency of any screenable products: wet and dry, heavy and light, coarse and fine, hot and cold and so on.

  The general characteristics of the vibrator adjustment are described below:

High Efficiency Rotary Vibrating Screen Three Dimensional 1


Structure Diagram of Rotary Vibro Sieving Machine For Paper Pulp Filtration:

High Efficiency Rotary Vibrating Screen Three Dimensional 2

Basic Function of Rotary Vibro Sieving Machine For Paper Pulp Filtration:

High Efficiency Rotary Vibrating Screen Three Dimensional 3

          Grading & Sieving                   Impurity Removal               Solid-liquid Separation


1. fine grading, control particle size range

Separating and screening of different particle sizes solid particle group with narrow particle size range


2. multi-group classification, control particle size range

Separating and screening of solid particle groups with different particle sizes, can be divided into five groups at the same time


3. coarse screening

Separating and screening large particles or ultra fine particles, and achieving high productivity


4. fluffy powder

According to the process requirement, the powder can be fluffy, so that the powder can be mixed into the air, easy to mix other materials


5. filtration and product recycling

It can be used to filter out the large particles in various slurry, or to dehydrate the solid-liquid mixture, or to recycle useful solid particles


6. wastewater purification and water pollution control

It can efficiently recycle useful solid particles and purify water for reuse


Screen Frame Or Screen Holder Optional:

High Efficiency Rotary Vibrating Screen Three Dimensional 4

Application of Rotary Vibro Sieving Machine For Paper Pulp Filtration:

  Various kinds of the materials can be screened by the rotary vibro sieving machines including those within 0~400mesh like dry, wet, refined, coarse, heavy and light as well as those within 0~600mesh like liquid and pasty materials.

1. Chemical Industry: colophony, industry leechdom, cosmetic, paint.
2. Grinding Materials And china Industry: alumina, quartz, slurry, kaoline, carborundum, sprayer dust.
3. Food Industry: sugar,flour,amylum, rice powder,milk powder, soyabean milk, angel cake,juice,sauce,spice,salt,starch.
4. Paper-Making Industry: dope,white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water recycling.
5. Metallurgy, Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate.
6. Pharmacy Industry: chinese herbal medicine liquid, medicine powder, liquid and particle.


Technical Parameters of Rotary Vibro Sieving Machine For Paper Pulp Filtration:

Model Power Screen Surface Diameter Effective Screening Area (m2) Layers
AY-400 0.18 KW 350mm 0.0962 1~3
AY-600 0.25 KW 550mm 0.2375 1~3
AY-800 0.55 KW 750mm 0.4416 1~3
AY-1000 0.75 KW 920mm 0.6644 1~3
AY-1200 1.1 KW 1120mm 0.9847 1~3
AY-1500 1.5 KW 1420mm 1.5829 1~3
AY-1800 2.2 KW 1720mm 2.3223 1~3
AY-2000 3.0 KW 1920mm 2.89 1~3

High Efficiency Rotary Vibrating Screen Three Dimensional 5

Overall Dimensions of Rotary Vibro Sieving Machine For Paper Pulp Filtration:

Model A B C D E F G I Single Layer Height Double Layer Height




AY-400 472 372 150 400 110 60 300 270 550 660 770
AY-600 570 450 200 600 120 80 380 340 730 865 1000
AY-800 690 570 200 800 130 100 550 340 730 865 1000
AY-1000 810 690 250 970 150 120 650 400 790 925 1060
AY-1200 970 850 250 1170 180 130 760 450 860 1025 1190
AY-1500 1180 1060 250 1470 200 140 950 480 985 1180 1370
AY-1800 1480 1360 350 1770 220 150 1110 520 1030 1220 1410
