|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Motion:||Three Dimensional Movement||Alternative Names:||Round Separator, Rotary Vibrating Screen, Rotary Vibrating Sieve, Vibro Screen, Vibrating Sifter, Vibrating Shifter Etc.|
|Purpose:||Particle Size Grading, Impurity Removal, Filtering, De-watering, De-dusting, Lump Breaking, Cooling, Size Control Etc.||Screen Frame:||Adhesive Type, Flange Type, Bolt Insert Type Etc.|
|Mesh Cleaning Method:||Bouncing Balls, Ultrasonic Deblinding System, Rotary Brush System Etc.||Optional Parts:||Quick Release Clamp, Magnetic Guard, Discharge Gate, Glass Viewing Port Etc.|
|Other Design:||Low-profile Design, Double Screening Design, Avalanche Design, High Frequency Design Etc.||Motor:||One Unit Of Verticle Vibrating Motor|
vibrating sieve separator,
vibratory screen separator

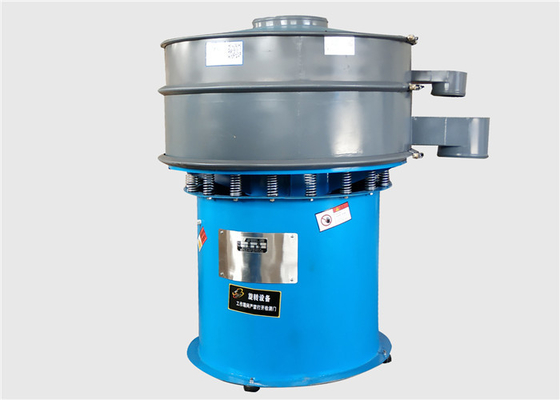

Phosphor Powder Rotary Vibrating Sieve Screen , Fluorescent Powder Round Separator
Overview of Rotary Vibro Screen Machine For Phosphor Powder And Fluorescent Powder:
The rotary vibro screen machine for phosphor powder and fluorescent powder is a revolutionary high performance vibrating screen for screening wet or dry materials. It is also known as the rotary vibrating screen, rotary vibrating sieve, round separator, vibro screen, vibrating sifter, round vibro sieve, gyro screen, gyro sieve, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, circular vibratory screen, circular vibrating screen, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.
The rotary vibration screen is a high precision fine powder screening machine, with low noise and high efficiency. It takes 3~5 minutes to quickly change the net. The rotary screen is made of an upright motor as the excitation source. The upper and lower ends of the motor are equipped with eccentric hammer. The rotary motion of the motor is transformed into horizontal, vertical and inclined tridimensional motion, which is then transmitted to the screen surface. By adjusting the phase angle of upper and lower ends, the movement track of materials on the screen surface can be changed. Materials can be fine screening, probability screening etc.
Important Information You May Concern About Rotary Vibro Screen Machine For Phosphor Powder And Fluorescent Powder:
|Shape||round or circular|
|Layers of Screen||1~5 screen decks (with 2~6 discharge ports)|
|Mesh Size||above 325 mesh|
|Screen Frame||L type, adhesive type, ultrasonic type (transducer internal and external) etc.|
|Mesh Cleaning Method||bouncing balls, ultrasonic system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm|
|Material||carbon steel, stainless steel 304, 316L etc.|
|Function||grading, solid-separation, remove the impurity etc.|
|Movement||three dimensional vibration motion|
|Damping Spring||galvanized steel spring etc.|
|Motor||verticle vibrating motor|
|Motor Brand||China Made, OLI-WOLONG etc.|
|Optional||quick release clamp, magnetic guard, discharge gate, glass viewing port etc.|
Screen Frame Or Screen Holder For Optional:
Working Principle of Rotary Vibro Screen Machine For Phosphor Powder And Fluorescent Powder:
The multi-deck rotary vibating screen separator adopts the latest vertical vibrating motor, which produces a horizontal, vertical and oblique vibration of three dimensional, and then directly passes the vibration to screen surface. Changing the angle of the upper and lower eccentric block of the motor, it produces different exciting force, and the direction in which the material is running is changed.
The round vibrating separator is a vibratory screening device that vibrates about its center of mass. The vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. The rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery. The lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern. The speed and spiral pattern of material travel over the screen cloth can be set by the operator for maximum throughput and screening efficiency of any screenable products: wet and dry, heavy and light, coarse and fine, hot and cold and so on.
The general characteristics of the vibrator adjustment are described below:
Structure Diagram of Rotary Vibro Screen Machine For Phosphor Powder And Fluorescent Powder:
Features of Rotary Vibro Screen Machine For Phosphor Powder And Fluorescent Powder:
1. High efficiency, refined design,duration,any powers and mucilage are suitable for using.
2. Easily replace the screen, simple operation and convenience washing.
3. Never jam the mesh with no power flying and filter size of the power between 500 mesh or 0.028mm.
4. Discharge the impurity and coarse materials automobile and operates continuously.
5. Small volume, move easily.
6. The highest layers of the screen are 5 layers. But 3 layers are suggested.
Optional Designs for Rotary Vibro Screen Machine:
1. Discharge Gate: it is used to control production flow and speed. This enables a better flow and provides consistent discharge characteristics from even surfaces. However, the discharge rate might differ from the ratio and diameter of the discharge pipe.
2. Quick Release Clamp: it is used for releasing camps rings without the need to use tools. While the other side of the clamp is used for tightening. It is mostly used for cleaning and dissembling purposes.
3. Spring Dust Cover: it is used to provide additional protection against dust and other particles by the strength of the springs, which is determined by the rollers which are also spring-loaded.
4. Customised Dust Cover: it is used to reduce any leaks from the machine. It also helps reduce airborne dust from flowing on the steam or conveyer belt. This device is made custom to fit your production line.
5. Magnetic Guard: it is used for preventing any contamination and also to ensure that manufacturing is done safely and free from any irregularities. It captures particles with the use of high magnetic strength. The collected contaminants are then unleashed into the discharge chutes.
Basic Function of Rotary Vibro Screen Machine For Phosphor Powder And Fluorescent Powder:
Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi-layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.
2. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.
3. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.
Technical Parameters of Rotary Vibro Screen Machine For Phosphor Powder And Fluorescent Powder:
|Model||Power||Screen Surface Diameter||Effective Screening Area (m2)||Layers|
Overall Dimensions of Rotary Vibro Screen Machine For Phosphor Powder And Fluorescent Powder:
|Model||A||B||C||D||E||F||G||I||Single Layer Height||Double Layer Height||
Application of Rotary Vibro Screen Machine For Phosphor Powder And Fluorescent Powder:
1. Food industry: Sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup etc.
2. Chemical industry: Rubber, PVC powder, resin, pigment, industrial medicine, cosmetic, coatings etc.
3. Ceramic and abrasive: Alumina, quartz sand, mud etc.
4. Metal, metallurgy and mining industry: Aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, manganese dioxide, electrolysis copper powder, electromagnetism materials, grinding powder, fire-resistant material, lime, alumina, heavy calcium carbonate etc.
5. Paper making: Paper pulp, paint, wasted water recycling.
6. Pharmacy profession: Chinese herbal medicine, western medicine powder, liquid, particle etc.
7. Social pollution disposed: Disposed oil, disposed water, disposed dye water, assistant, active carbon.
