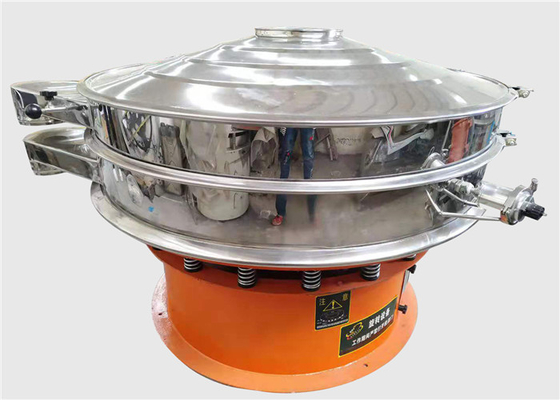

Stainless Steel Classic Vibro-Energy Round Separator For Glucose Powder

Overview of Classic Vibro-Energy Round Separator For Glucose Powder​:

The classic vibro-energy round separator for glucose powder is also called rotary vibrating screen, rotary vibrating sieve, round separator, vibro screen, round vibro sieve, gyro screen, gyro sieve, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, vibrating sifter, circular vibratory screen, circular vibrating screen, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.

  The three dimensional vibrating screen filter has imported high quality stainless steel and general steel manufacturing, but also according to customer needs to use non-metal and other special manufacturing materials.The machine can be specially made of non-metal and other materials according to customers' needs.

  Rotary vibration screen is a high precision fine powder screening machine, with low noise and high efficiency. It takes 3-5 minutes to quickly replace the screen. The rotary screen is made of an upright motor as the excitation source. The upper and lower ends of the motor are equipped with eccentric hammer. The rotary motion of the motor is transformed into horizontal, vertical and inclined tridimensional motion, which is then transmitted to the screen surface.By adjusting the phase Angle of upper and lower ends, the movement track of materials on the screen surface can be changed.Materials can be fine screening, probability screening etc.

Important Information You May Concern About Classic Vibro-Energy Round Separator For Glucose Powder:

Working Principle of Classic Vibro-Energy Round Separator For Glucose Powder:

  The multi-deck rotary vibating screen separator adopts the latest vertical vibrating motor, which produces a horizontal, vertical and oblique vibration of three dimensional, and then directly passes the vibration to screen surface. Changing the angle of the upper and lower eccentric block of the motor, it produces different exciting force, and the direction in which the material is running is changed.

  The round vibrating separator is a vibratory screening device that vibrates about its center of mass. The vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. The rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery. The lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern. The speed and spiral pattern of material travel over the screen cloth can be set by the operator for maximum throughput and screening efficiency of any screenable products: wet and dry, heavy and light, coarse and fine, hot and cold and so on.

  The general characteristics of the vibrator adjustment are described below:

Application of Rotary Vibrating Sieve Machine for Pearlescent Pigment​:

Many kinds of the materials within 0~400 mesh like dry, wet, refined, coarse, heavy and light as well as those within 0~600 mesh like liquid and pasty materials can be screened by the machines. Details are as follows:
1. Chemical industry: resin, pigment, medicine, grease, extinction agent, rubber and plastic.
2. Abrasive, glass and ceramic professions: silicone sand, aluminum oxide, grinding abrasive, glass dust and fire-proof material.
3. Foodstuff: sugar, salt, alkali, glutamate, starch, powdered milk, soybean milk, yeast and fruit juice.
4. Papermaking profession: coated slurry, black and white liquor, padding fluid, waste liquid and waste water recycling.
5. Iron-smelting and mining industry: quartz sand, ore, titanium oxide and zinc oxide.
6. Mechanical profession: casting sand, powder metallurgy, electromagnetism material, aluminum powder, metal powder and alloy.
7. Environmental protection: trash, human and animal fecaluria, industrial waste water , food waste water and waste water processing.
8. Other Industries: carbon black, activated carbon and pearl etc.

Structure Diagram of Classic Vibro-Energy Round Separator For Glucose Powder​:

Features of Classic Vibro-Energy Round Separator For Glucose Powder:

1. The screening accuracy exceeds 90%.
2. It adopts whole sealing structure design,the sealed effect is fairly well, no dust pollution, no leaking liquid, no material left in machine, and no dead angle in the net frame.
3. Small volume and light weight,easy to be installed and maintained.
4. The outlet can be adjusted at any angle,and it is easy to change the screen.
5. The rubber ball device can reduce the chance of jam on the screen.
6. By adding the Ultrasonic Instrument Conversion device, superfine materials up to 600 mesh can be sieved.
7. Self cleaning device: silicone ball, rotary silicone brush, ultrasonic device and pneumatic device.
8. Automatic feeding system
9. Transparent plastic cover or sight glass window .
10. Round separator in other designs are also available such as low profile design, double motor structure, avalanche design, high frequency design etc.

Basic Function of Classic Vibro-Energy Round Separator For Glucose Powder​:

1. Grading
Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi-layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.

2. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.

3. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.

Technical Parameters of Classic Vibro-Energy Round Separator For Glucose Powder​:

Overall Dimensions of Classic Vibro-Energy Round Separator For Glucose Powder:
