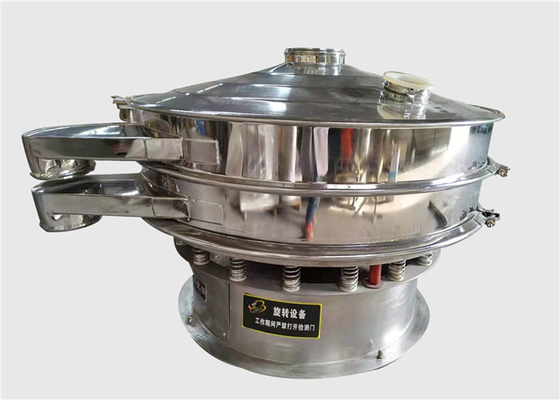

Stainless Steel Rotary Vibrating Screen Sifter Machine For Bread Flour Powder

Stainless Steel Rotary Vibrating Screen Sifter Machine For Bread Flour Powder

  • Stainless Steel Rotary Vibrating Screen Sifter Machine For Bread Flour Powder
  • Stainless Steel Rotary Vibrating Screen Sifter Machine For Bread Flour Powder
Stainless Steel Rotary Vibrating Screen Sifter Machine For Bread Flour Powder
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Purpose: Classify, Grading And Filtering Movement: Three Dimensional Motion
Material: Carbon Steel, Stainless Steel 304, 316L Etc. Screen Frame: Adhesive Type, L Type, Ultrasonic Type Etc.
Mesh Cleaning Method: Bouncing Balls, Ultrasonic System, Rotary Brush System Etc. Drive Device: One Set Of Verticle Vibrating Motor
Characteristics: Small Size, 1~5 Layers Of Screen, Low Noise, Environmentally Friendly Etc. Application: Widely Used In Mining Industry, Food Industry, Chemical Industry, Medical Industry, Waste Treatment Etc.
High Light:

round vibrating screen

,

round separator



Stainless Steel Rotary Vibrating Screen Sifter Machine For Bread Flour Powder



Overview of Rotary Vibrating Sifter Machine for Bread Flour Powder​:

The multi-deck three dimensional rotary vibrating sifter machine for bread flour powder is also called rotary vibrating screen, rotary vibrating sieve, round separator, round vibro sieve, gyro screen, gyro sieve, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, vibrating sifter, circular vibratory screen, circular vibrating screen, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro screen, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.

  The AY model rotary vibrating sifter is a kind of high precision powder sieving machine. By means of the upper and lower hammer mounted on the vibration motor, the sifter can turn the rotary motion force of the motor into three-dimensional motion (horizontal, vertical, inclined). Then this motion will be delivered to the screen surface. Thus, the sifter realizes the purpose of sieving. This series of vibrating sifters can be used to classify, grading and filtering in food, chemical, metal, mining and other industries.

Stainless Steel Rotary Vibrating Screen Sifter Machine For Bread Flour Powder 0

Important Information You May Concern About Rotary Vibrating Sifter Machine for Bread Flour Powder​:

Model AY
Shape round
Layers of Screen 1~5 screen decks
Mesh Size above 325 mesh
Screen Frame L type, adhesive type, ultrasonic type etc.
Mesh Cleaning Method bouncing balls, ultrasonic system, rotary brush system etc.
Diameter 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm
Material carbon steel, stainless steel 304, 316L etc.
Function grading, solid-separation, remove the impurity etc.
Movement three dimensional vibration motion
Damping Spring galvanized steel spring etc.
Motor verticle vibrating motor
Motor Brand China Made, OLI-WOLONG etc.



Working Principle of Rotary Vibrating Sifter Machine for Bread Flour Powder​:

  The sealed multi-layer three-dimensional rotary vibrating sifter machine is a vertical-motor system, with eccentric hammers being installed on top and bottom of the machine, where the motor acts as the vibratory source.
  The direction of the eccentric hammers may change its rotational mode either in horizontal, vertical and inclined movement onto the sieving screener surface. The trajectories of the materials on the sieving machine can be changed by adjusting the angle of eccentric hammers on both top and bottom parts.

Stainless Steel Rotary Vibrating Screen Sifter Machine For Bread Flour Powder 1

  The general characteristics of the vibrator adjustment are described below:

Stainless Steel Rotary Vibrating Screen Sifter Machine For Bread Flour Powder 2



Structure Diagram of Rotary Vibrating Sifter Machine for Bread Flour Powder​:

Stainless Steel Rotary Vibrating Screen Sifter Machine For Bread Flour Powder 3

Features of Rotary Vibrating Sifter Machine for Bread Flour Powder​:

1. Up to 5 times output per unit area; accurately to 6 Level separation, sieving efficiency is higher than 95%.
2. We use excellent silicon rubber balls ,ultrasonic wave or rotating brush for cleaning sieving mesh. No mesh blocking.
3. Acceleration is five times less than the normal vibrating screen. Spare parts will have longer life. Thus reduce the maintain cost.
4. Noise is lower than 75 decibel. Lower foundation dynamic load.
5. Specially used for sieving high value-added products. Thus improve the profit.



Basic Function of Rotary Vibrating Sifter Machine for Bread Flour Powder​:

Stainless Steel Rotary Vibrating Screen Sifter Machine For Bread Flour Powder 4

1. Grading
Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi—layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.



2. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.



3. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.



Technical Parameters of Rotary Vibrating Sifter Machine for Bread Flour Powder​​:

Model Power Screen Surface Diameter Effective Screening Area (m2) Layers
AY-400 0.18 KW 350mm 0.0962 1~3
AY-600 0.25 KW 550mm 0.2375 1~3
AY-800 0.55 KW 750mm 0.4416 1~3
AY-1000 0.75 KW 920mm 0.6644 1~3
AY-1200 1.1 KW 1120mm 0.9847 1~3
AY-1500 1.5 KW 1420mm 1.5829 1~3
AY-1800 2.2 KW 1720mm 2.3223 1~3
AY-2000 3.0 KW 1920mm 2.89 1~3

Stainless Steel Rotary Vibrating Screen Sifter Machine For Bread Flour Powder 5

Overall Dimensions of Rotary Vibrating Sifter Machine for Bread Flour Powder​:

Model A B C D E F G I Single Layer Height Double Layer Height

Three

Layer

Height

AY-400 472 372 150 400 110 60 300 270 550 660 770
AY-600 570 450 200 600 120 80 380 340 730 865 1000
AY-800 690 570 200 800 130 100 550 340 730 865 1000
AY-1000 810 690 250 970 150 120 650 400 790 925 1060
AY-1200 970 850 250 1170 180 130 760 450 860 1025 1190
AY-1500 1180 1060 250 1470 200 140 950 480 985 1180 1370
AY-1800 1480 1360 350 1770 220 150 1110 520 1030 1220 1410



Application of Rotary Vibrating Sifter Machine for Bread Flour Powder​​:

1. Chemical industry: Rubber, PVC powder, resin, pigment, industrial medicine, cosmetic, coatings etc.
2. Ceramic and abrasive: Alumina, quartz sand, mud etc.
3. Food industry: Sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup etc.
4. Paper making: Paper pulp, paint, wasted water recycling.
5. Metal, metallurgy and mining industry: Aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, manganese dioxide, electrolysis copper powder, electromagnetism materials, grinding powder, fire-resistant material, lime, alumina, heavy calcium carbonate etc.
6. Pharmacy profession: Chinese herbal medicine, western medicine powder, liquid, particle etc.
7. Social pollution disposed: Disposed oil, disposed water, disposed dye water, assistant, active carbon.



Stainless Steel Rotary Vibrating Screen Sifter Machine For Bread Flour Powder 6
