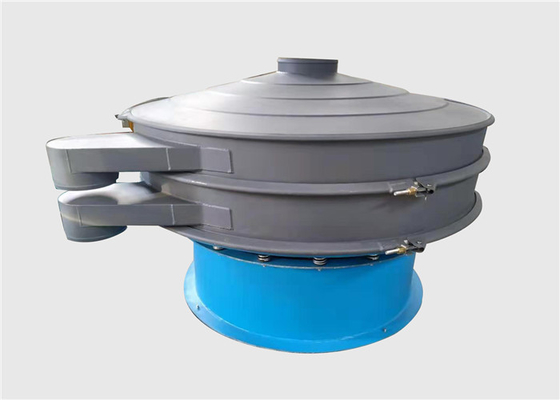

High Efficiency Rotary Vibrating Screen Machine For Refractory Material

High Efficiency Rotary Vibrating Screen Machine For Refractory Material

  • High Efficiency Rotary Vibrating Screen Machine For Refractory Material
  • High Efficiency Rotary Vibrating Screen Machine For Refractory Material
High Efficiency Rotary Vibrating Screen Machine For Refractory Material
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Movement: Three Dimensional Vibration Motion Function: For Particle Size Grading, Impurity Removal, Filtering, De-watering, De-dusting, Lump Breaking, Cooling, Size Control Etc.
Material: Carbon Steel, Stainless Steel 304, 316L Etc. Screen Frame: L Type, Adhesive Type, Ultrasonic Type Etc.
Mesh Cleaning Method: Bouncing Balls, Ultrasonic System, Rotary Brush System Etc. Drive Device: One Set Of Vibrating Motor, Verticle Arrangement
Characteristics: Small Size, Outlet Can Be Adjustable In The Range Of 360°, Can Be Equipped With Anti-blocking Device Etc. Application: Widely Used In Mining Industry, Food Industry, Chemical Industry, Medical Industry, Waste Treatment Etc.
High Light:

round vibrating screen

,

vibro sieve machine



High Efficiency Rotary Vibrating Screen Machine For Refractory Material



Overview of Rotary Vibrating Screen Machine for Refractory Material​:

The multi-deck three dimensional rotary vibrating screen machine for refractory material is also called rotary vibrating sieve, rotary vibrating screen, round vibro sieve, gyro screen, gyro sieve, round separator, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, vibrating sifter, circular vibratory screen, circular vibrating screen, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro screen, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.

  The Chinese high capacity rotary vibration filter sieve is a high precision fine powder screening machine.The fundamental principle of rotary vibrating screen sifter is that the unbalanced weight dropper installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities. Chinese high capacity chemical rotary vibration filter sieve can be used for grain, powder, granule, flake, liquid materials.

High Efficiency Rotary Vibrating Screen Machine For Refractory Material 0

Important Information You May Concern About Rotary Vibrating Screen Machine for Refractory Material​:

Model AY
Shape round
Layers of Screen 1~5 screen decks
Mesh Size above 325 mesh
Screen Frame L type, adhesive type, ultrasonic type etc.
Mesh Cleaning Method bouncing balls, ultrasonic system, rotary brush system etc.
Diameter 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm
Material carbon steel, stainless steel 304, 316L etc.
Function grading, solid-separation, remove the impurity etc.
Movement three dimensional vibration motion
Damping Spring galvanized steel spring etc.
Motor verticle vibrating motor
Motor Brand China Made, OLI-WOLONG etc.



Working Principle of Rotary Vibrating Screen Machine for Refractory Material​:

  The multi-deck rotary vibating screen separator adopts the latest vertical vibrating motor, which produces a horizontal, vertical and oblique vibration of three dimensional, and then directly passes the vibration to screen surface.

  Changing the angle of the upper and lower eccentric block of the motor, it produces different exciting force, and the direction in which the material is running is changed.

High Efficiency Rotary Vibrating Screen Machine For Refractory Material 1

  The general characteristics of the vibrator adjustment are described below:

High Efficiency Rotary Vibrating Screen Machine For Refractory Material 2



Structure Diagram of Rotary Vibrating Screen Machine for Refractory Material​:

High Efficiency Rotary Vibrating Screen Machine For Refractory Material 3

Features of Rotary Vibrating Screen Machine for Refractory Material​:

1. It can be used with single or multilayer screen cloth.
2. Automatic discharge of materials, continuous operation.
3. No dead corner of parts, easy rinse thoroughly and disinfection.
4. High screening precision, high efficiency, suitable for any powder, grain and mucus materials.
5. New grid structure, long service life of screen cloth, only 3-5min for screen replacement.
6. Small volume, less space occupation, easy to move,360 degree adjustment of discharge opening.
7. Fully enclosed structure, no flying dust, no liquid leakage, no blocking of mesh opening, screen can reach 500 meshes, and filter can reach 5 μm.



Basic Function of Rotary Vibrating Screen Machine for Refractory Material​:

High Efficiency Rotary Vibrating Screen Machine For Refractory Material 4

1. Grading
Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi—layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.



2. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.



3. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.



Technical Parameters of Rotary Vibrating Screen Machine for Refractory Material​:

Model Power Screen Surface Diameter Effective Screening Area (m2) Layers
AY-400 0.18 KW 350mm 0.0962 1~3
AY-600 0.25 KW 550mm 0.2375 1~3
AY-800 0.55 KW 750mm 0.4416 1~3
AY-1000 0.75 KW 920mm 0.6644 1~3
AY-1200 1.1 KW 1120mm 0.9847 1~3
AY-1500 1.5 KW 1420mm 1.5829 1~3
AY-1800 2.2 KW 1720mm 2.3223 1~3
AY-2000 3.0 KW 1920mm 2.89 1~3

High Efficiency Rotary Vibrating Screen Machine For Refractory Material 5

Overall Dimensions of Rotary Vibrating Screen Machine for Refractory Material​:

Model A B C D E F G I Single Layer Height Double Layer Height

Three

Layer

Height

AY-400 472 372 150 400 110 60 300 270 550 660 770
AY-600 570 450 200 600 120 80 380 340 730 865 1000
AY-800 690 570 200 800 130 100 550 340 730 865 1000
AY-1000 810 690 250 970 150 120 650 400 790 925 1060
AY-1200 970 850 250 1170 180 130 760 450 860 1025 1190
AY-1500 1180 1060 250 1470 200 140 950 480 985 1180 1370
AY-1800 1480 1360 350 1770 220 150 1110 520 1030 1220 1410



Application of Rotary Vibrating Screen Machine for Refractory Material​:

1. Chemical industry: Rubber, PVC powder, resin, pigment, industrial medicine, cosmetic, coatings etc.
2. Ceramic and abrasive: Alumina, quartz sand, mud etc.
3. Food industry: Sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup etc.
4. Paper making: Paper pulp, paint, wasted water recycling.
5. Metal, metallurgy and mining industry: Aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, manganese dioxide, electrolysis copper powder, electromagnetism materials, grinding powder, fire-resistant material, lime, alumina, heavy calcium carbonate etc.
6. Pharmacy profession: Chinese herbal medicine, western medicine powder, liquid, particle etc.
7. Social pollution disposed: Disposed oil, disposed water, disposed dye water, assistant, active carbon.
