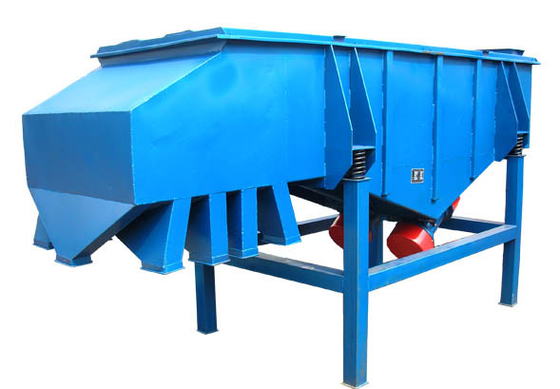

Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading

Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading

  • Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading
Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for small size
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Movement: Linear Motion Drive Device: Double Horizontal Vibrating Motor
Purpose: Suitable For The Rough Screening Operation Of High Capacity Material: Carbon Steel, Stainless Steel 304, 316L Etc.
Screen Frame/Holder: Wooden Screen Frame, Carbon Steel Screen Frame, Stainless Steel Screen Frame Advantage: 1~8 Sieve Decks Available, Can Adjust Screen Surface Angle To Balance The Screening Accuracy And Production Capacity
High Light:

linear motion vibrating screen

,

vibratory screening equipment



Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading



Overview of Linear Vibrating Screen:

Linear vibrating screen is also called rectangular separator, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.

  Driven by two vibration motors, the rectangular separators do rectilinear vibration. By adjusting the installation angle of the vibrating motor, the material throwing angle can be changed to achieve the required form of production. Since the rectangular separators make materials produce a very large acceleration, it can meet the high production demand.

  This machine is usually installed horizontally and can be also installed with elevation or downtilt to meet different production requirements.



Working Principle of Linear Vibrating Screen:

Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading 0

  The rectangular separator is driven by dual vibrating motors. When the two vibration motors do synchronized and reversed rotation, the vibration force generated by its eccentric block offset each other parallel to the direction of the motor spindle, superimposing as a resultant force perpendicular to the direction of the motor shaft, thus the movement trajectory of the screening machine is a straight line.

  The two motor shafts have an angle of dip in the vertical direction relative to the screen surface. Under the combined effect of vibration force and material self-gravity, materials in the screen surface do jumping movement, so as to achieve the purpose of screening and grading materials. It can be used to realize automatic operation in the assembly line.



Features of Linear Vibrating Screen:

1. Suitable for the rough screening operation of high capacity.

2. Various kinds of screen structures (wood frame, metal frame etc.).

3. Quick-open clamps can be used to remove easily.

4. The screen surface angle can be adjusted to balance the screening accuracy and production capacity.

5. The high quality damping rubber spring can be used to minimize the noise, and reduce the large swing of the start stop in the same time.

6. The motor can be installed below or above or side of the screen box to adapt to different environments.

7. It can be installed 1~8 layers of screens, and adopts the bouncing ball to clear screen.

8. Completely enclosed structure, no dust.



Structure of Linear Vibrating Screen:

Rectangular separator is mainly composed of screen box, sieve mesh, vibration motor, motor pedestal, damping spring and brackets.

1. Screen box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.

Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading 1Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading 2

Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading 3



3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.

Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading 4



4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.



Application of Linear Vibrating Screen:

  This sieving machine is suitable for screening materials which are between 0.74mm and 10mm, water content less than 7%, and no sticky.

It is widely used in chemical industry, food, plastic, medicine, metallurgy, glass, building materials, grain, fertilizer, abrasive, ceramics and other industries, for dry powder or granular material screening.



Technical Parameters of Linear Vibrating Screen:

Model Nominal Size (mm) Particle Size (mm) Leaning Angle of Screen(°) Amplitude (mm) Layer Power (Kw)
AZ-520 500*2000 0.0074~10 0~7° 4~10 1~6 2*(0.4~0.75)
AZ-525 500*2500 2*(0.4~0.75)
AZ-530 500*3000 2*(0.4~0.75)
AZ-1020 1000*2000 2*(0.4~0.75)
AZ-1025 1000*2500 2*(0.4~1.1)
AZ-1030 1000*3000 2*(1.1~1.5)
AZ-1040 1000*4000 2*(1.1~1.5)
AZ-1225 1200*2500 2*(1.1~1.5)
AZ-1235 1200*3500 2*(1.1~2.2)
AZ-1250 1200*5000 2*(1.1~2.2)
AZ-1535 1500*3500 2*(1.1~2.2)
AZ-1560 1500*6000 2*(2.2~3.7)
AZ-1845 1800*4500 0.0074~15 2*(2.2~3.7)
AZ-2050 2000*5000 2*(2.2~3.7)
AZ-2060 2000*6000 2*(2.2~3.7)



Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading 5Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading 6

                        Single Layer                                                              Multi-layer



Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading 7Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading 8

                Plastic Grain Separator                                     Washing Powder Separator



Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading 9Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading 10

                                                         New Type Spring Separator



Horizonal Linear Motion Vibrating Screen Carbon Steel For Limestone Grading 11

                                                                 Sanitary Separator
